BOSCH

Bosch 0986478346 Brake Disc

SKU: 0986478346

Your selected vehicle

Only 4 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£62.80 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD

ESCORT Mk IV (GAF, AWF, ABFT)

Description	Cylinder Capacity	Horse Power	Year
1.6 Turbo RS	1597 CCM	132 HP	01/1986 - 07/1990

SIERRA Turnier (BNC)

Description	Cylinder Capacity	Horse Power	Year
2.8 XR4i	2792 CCM	143 HP	08/1982 - 12/1986
2.8 XR4i	2792 CCM	146 HP	08/1982 - 12/1986
2.8 i 4x4	2792 CCM	143 HP	08/1982 - 12/1986
2.8 i 4x4	2792 CCM	146 HP	08/1982 - 12/1986

SIERRA I Hatchback (GBC)

Description	Cylinder Capacity	Horse Power	Year
2.8 XR4i	2792 CCM	150 HP	08/1982 - 12/1986
2.8 XR4i	2792 CCM	143 HP	08/1982 - 12/1986
2.8 XR4i	2792 CCM	146 HP	08/1982 - 12/1986

SIERRA II Sapphire (GBG, GB4)

Description	Cylinder Capacity	Horse Power	Year
1.6	1597 CCM	75 HP	01/1987 - 02/1993
1.8	1769 CCM	87 HP	05/1988 - 02/1993
1.8	1796 CCM	80 HP	10/1987 - 09/1989
1.8	1796 CCM	90 HP	01/1987 - 05/1988
2.0	1993 CCM	105 HP	01/1987 - 02/1993
1.8 TD	1753 CCM	75 HP	08/1988 - 02/1993
2.3 D	2304 CCM	67 HP	01/1987 - 09/1989
1.6 i	1597 CCM	80 HP	10/1989 - 02/1993
1.6	1597 CCM	72 HP	01/1988 - 02/1993
2.0 i Cat	1993 CCM	100 HP	01/1987 - 02/1993
2.0 i	1993 CCM	115 HP	01/1987 - 02/1993
2.0 i	1998 CCM	120 HP	01/1990 - 02/1993
2.9 i	2935 CCM	145 HP	08/1988 - 02/1993
2.0 i	1993 CCM	100 HP	01/1987 - 12/1989

SIERRA II Turnier (BNG)

Description	Cylinder Capacity	Horse Power	Year
1.8	1769 CCM	87 HP	05/1988 - 02/1993
1.8	1796 CCM	80 HP	10/1987 - 05/1988
1.8	1796 CCM	90 HP	01/1987 - 05/1988
2.0	1993 CCM	105 HP	01/1987 - 02/1993
2.0 i Cat	1993 CCM	100 HP	01/1987 - 02/1993
1.8 TD	1753 CCM	75 HP	08/1988 - 02/1993
2.3 D	2304 CCM	67 HP	01/1987 - 02/1993
1.6	1597 CCM	72 HP	01/1988 - 02/1993
1.6 i	1598 CCM	80 HP	10/1989 - 02/1993
2.0 i	1993 CCM	115 HP	01/1987 - 02/1993
2.0 i	1998 CCM	120 HP	05/1989 - 02/1993
2.0 4x4	1998 CCM	120 HP	02/1990 - 02/1993
1.6	1597 CCM	75 HP	01/1987 - 02/1993

SIERRA II Hatchback (GBC, GBG)

Description	Cylinder Capacity	Horse Power	Year
1.6	1597 CCM	75 HP	01/1987 - 02/1993
1.8	1769 CCM	87 HP	05/1988 - 02/1993
1.8	1796 CCM	80 HP	10/1987 - 05/1988
1.8	1796 CCM	90 HP	01/1987 - 05/1988
2.0	1993 CCM	105 HP	01/1987 - 02/1993
1.8 TD	1753 CCM	75 HP	08/1988 - 02/1993
2.3 D	2304 CCM	67 HP	01/1987 - 09/1989
1.6 i	1598 CCM	80 HP	10/1989 - 02/1993
1.6	1597 CCM	72 HP	01/1988 - 02/1993
2.0 i Cat	1993 CCM	100 HP	01/1987 - 02/1993
2.0 i	1993 CCM	115 HP	01/1987 - 02/1993
2.0 i	1998 CCM	120 HP	06/1989 - 02/1993

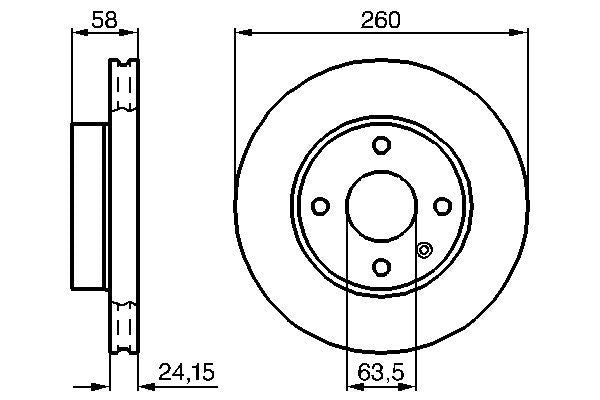

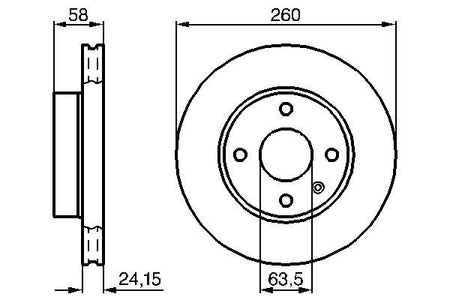

The Bosch 0986478346 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 260 mm outer diameter, 24.2 mm brake disc thickness, 22.2 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 260

Brake Disc Thickness [mm] : 24.2

Minimum thickness [mm] : 22.2

Height [mm] : 58.1

Bolt Hole Circle Ø [mm] : 108

Brake Disc Type : Vented

Centering Diameter [mm] : 63.55

Number of Holes : 4

Surface : Oiled

Supplementary Article/Supplementary Info 2 : with bolts/screws

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 13.6

Bosch 0986478346 Brake Disc
