BOSCH

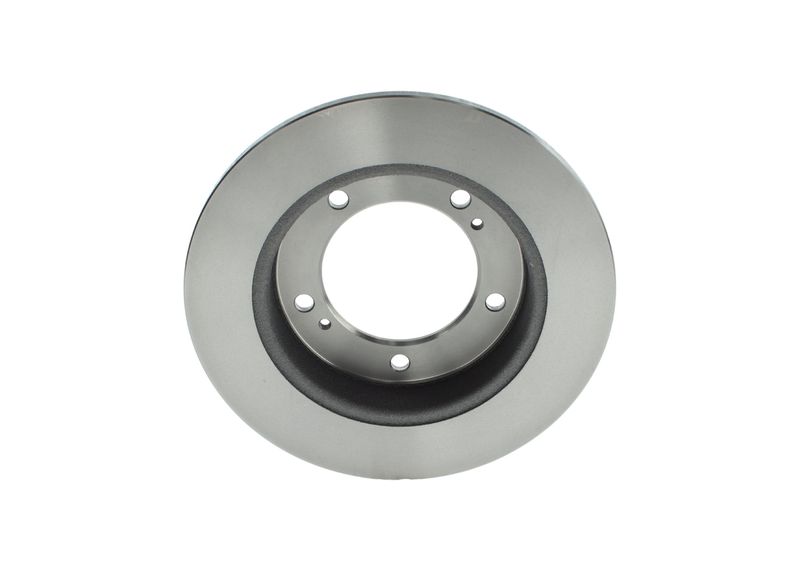

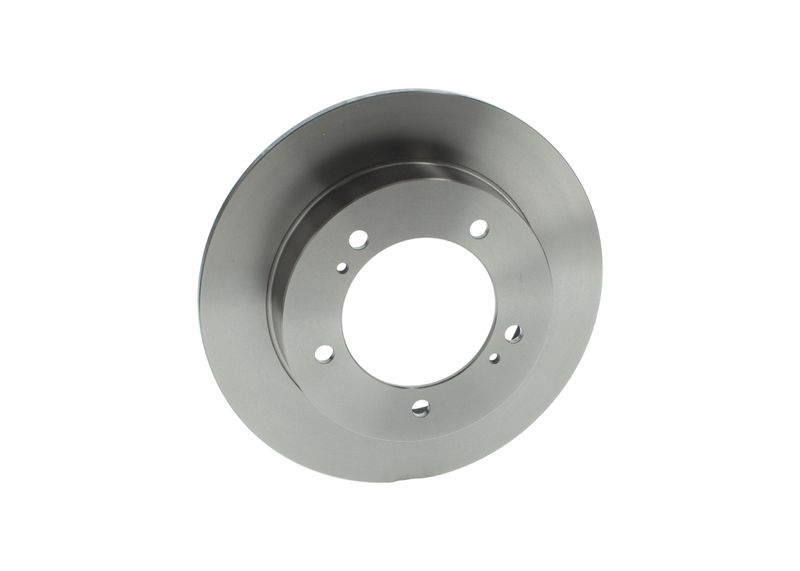

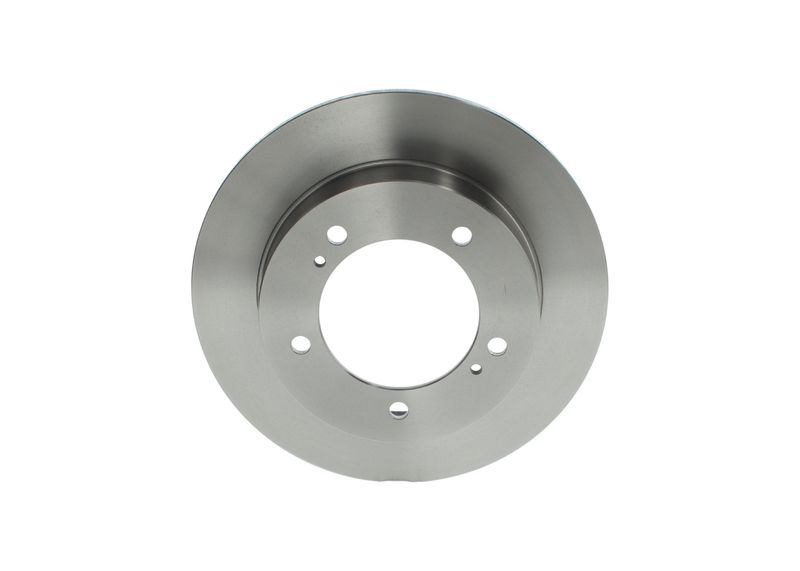

Bosch 0986478377 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986478377

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 1 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£56.12 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

SUZUKI

SAMURAI Closed Off-Road Vehicle (SJ_)

Description	Cylinder Capacity	Horse Power	Year
1.3 All-wheel Drive (SJ413, SJ70, SJ80)	1298 CCM	70 HP	11/1988 - 12/2004
1.3 All-wheel Drive (SJ413)	1324 CCM	60 HP	11/1988 - 12/2004
1.3 All-wheel Drive (SJ413)	1324 CCM	64 HP	11/1988 - 12/2004
1.3 All-wheel Drive	1298 CCM	64 HP	09/1984 - 12/1994

SAMURAI Open Off-Road Vehicle (SJ_)

Description	Cylinder Capacity	Horse Power	Year
1.3 (SJ413)	1298 CCM	70 HP	08/1992 - 08/1998

SJ410

Description	Cylinder Capacity	Horse Power	Year
1.0 (SJ410)	970 CCM	45 HP	09/1981 - 12/1988

SJ410 Cabrio (OS)

Description	Cylinder Capacity	Horse Power	Year
1.0 (SJ410)	970 CCM	45 HP	09/1981 - 07/1991

SJ413 Open Off-Road Vehicle (OS)

Description	Cylinder Capacity	Horse Power	Year
1.3 (SJ413)	1324 CCM	64 HP	01/1985 - 12/1985

SJ413 (OS)

Description	Cylinder Capacity	Horse Power	Year
1.3 (SJ413)	1324 CCM	60 HP	08/1986 - 08/1990
1.3 (SJ413)	1324 CCM	64 HP	09/1984 - 08/1990

The Bosch 0986478377 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 289.5 mm outer diameter, 10 mm brake disc thickness, 9 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 289.5

Brake Disc Thickness [mm] : 10

Minimum thickness [mm] : 9

Height [mm] : 45.9

Bolt Hole Circle Ø [mm] : 139.7

Brake Disc Type : solid

Centering Diameter [mm] : 107

Number of Holes : 5

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 12.8
