BOSCH

Bosch 0986478426 Brake Disc

5.0/5 78 reviews

SKU: 0986478426

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£66.30 inc. VAT

Complete the job

APEC — Aerosol Brake cleaner 600ml

£6.92

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details

Pay securely with

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

BMW

5 (E39)

Description	Cylinder Capacity	Horse Power	Year
520 i	1990 CCM	150 HP	01/1996 - 06/2003
525 tds	2497 CCM	143 HP	01/1996 - 06/2003
523 i	2494 CCM	170 HP	09/1995 - 08/2000
528 i	2793 CCM	193 HP	09/1995 - 08/2000
540 i	4398 CCM	286 HP	03/1996 - 06/2003
535 i	3498 CCM	235 HP	06/1996 - 08/1998
525 td	2497 CCM	116 HP	01/1997 - 06/2003
530 d	2926 CCM	184 HP	08/1998 - 09/2000
535 i	3498 CCM	245 HP	09/1998 - 06/2003
520 i	1990 CCM	136 HP	01/1996 - 06/2003
520 d	1951 CCM	136 HP	02/2000 - 06/2003
525 d	2497 CCM	163 HP	02/2000 - 06/2003
520 i	2171 CCM	170 HP	09/2000 - 06/2003
530 d	2926 CCM	193 HP	09/1998 - 06/2003

5 Touring (E39)

Description	Cylinder Capacity	Horse Power	Year
520 i	1990 CCM	150 HP	03/1997 - 08/2001
523 i	2494 CCM	170 HP	03/1997 - 08/2000
540 i	4398 CCM	286 HP	04/1997 - 12/2003
528 i	2793 CCM	193 HP	11/1996 - 08/2000
530 d	2926 CCM	184 HP	08/1998 - 09/2000
525 tds	2497 CCM	143 HP	03/1997 - 05/2004
520 i	1990 CCM	136 HP	03/1997 - 08/2001
520 d	1951 CCM	136 HP	02/2000 - 09/2003
525 d	2497 CCM	163 HP	02/2000 - 05/2004
530 d	2926 CCM	193 HP	09/2000 - 05/2004
520 i	2171 CCM	170 HP	09/2000 - 12/2003
525 i	2494 CCM	192 HP	09/2000 - 05/2004
530 i	2979 CCM	231 HP	09/2000 - 12/2003
520 i	2171 CCM	163 HP	09/2000 - 12/2003
523 i	2494 CCM	163 HP	09/1998 - 08/2000

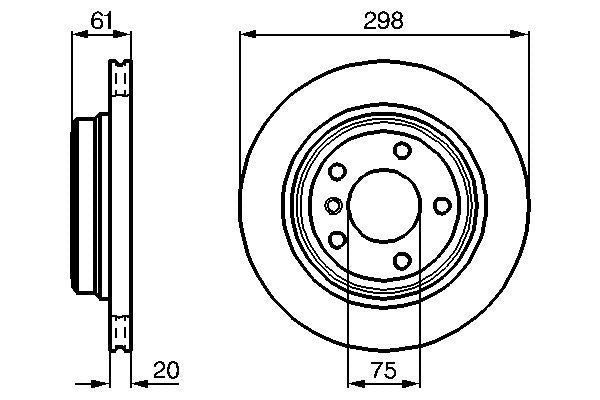

The Bosch 0986478426 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 298 mm outer diameter, 20 mm brake disc thickness, 18.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 298

Brake Disc Thickness [mm] : 20

Minimum thickness [mm] : 18.4

Height [mm] : 61.1

Bolt Hole Circle Ø [mm] : 120

Brake Disc Type : Vented

Centering Diameter [mm] : 75

Number of Holes : 5

Surface : Coated

Machining : High-carbon

Supplementary Article/Supplementary Info 2 : with bolts/screws

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 14.6

APEC : DSK932
APEC : SDK6921
BLUE PRINT : ADB114343
BORG & BECK : BBD4218
BREMBO : 09.6841.11
BREMBO : 09.6841.14
BREMBO : 09.6841.1X
BREMBO : 09.6841.75
DELPHI : BG3042
FEBI BILSTEIN : 17162
HELLA : 8DD 355 104-611
HELLA : 8DD 355 127-261
MEYLE : 315 523 0058
MEYLE : 315 523 0058/PD
MINTEX : MDC1054
National : NBD860
SKF : VKBD 91047 V2
TEXTAR : 92075100
TEXTAR : 92075103
TRW : DF2783
VALEO : 186860
VALEO : 672665
