BOSCH

Bosch 0986478439 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986478439

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£76.80 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

BMW

Z3 Roadster (E36)

Description	Cylinder Capacity	Horse Power	Year
1.9 i	1895 CCM	140 HP	11/1995 - 03/1999
1.8 i	1796 CCM	116 HP	10/1995 - 10/1998
2.8 i	2793 CCM	193 HP	11/1996 - 05/2000
1.9 i	1895 CCM	118 HP	07/1998 - 01/2003
2.0 i	1990 CCM	150 HP	04/1999 - 01/2003
1.9 i	1895 CCM	116 HP	01/1999 - 01/2003
3.0 i	2979 CCM	231 HP	06/2000 - 01/2003
2.2 i	2171 CCM	170 HP	10/2000 - 06/2002
2.2 i	2171 CCM	163 HP	08/2000 - 01/2003

Z3 Coupe (E36)

Description	Cylinder Capacity	Horse Power	Year
2.8 i	2793 CCM	193 HP	01/1998 - 05/2000
3.0 i	2979 CCM	231 HP	06/2000 - 06/2003

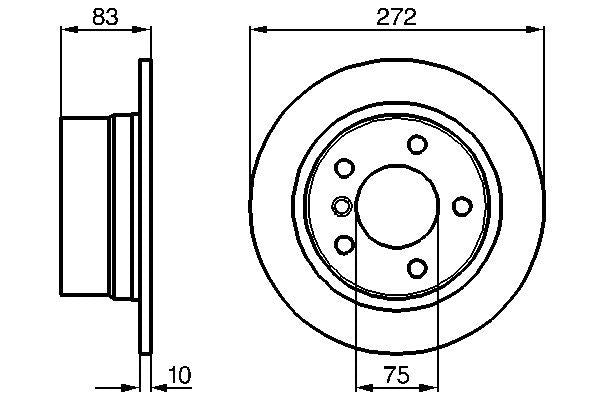

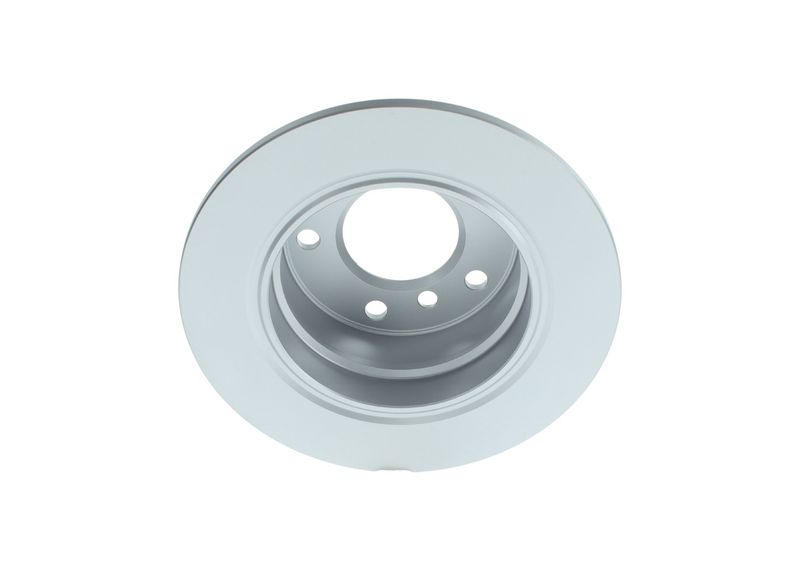

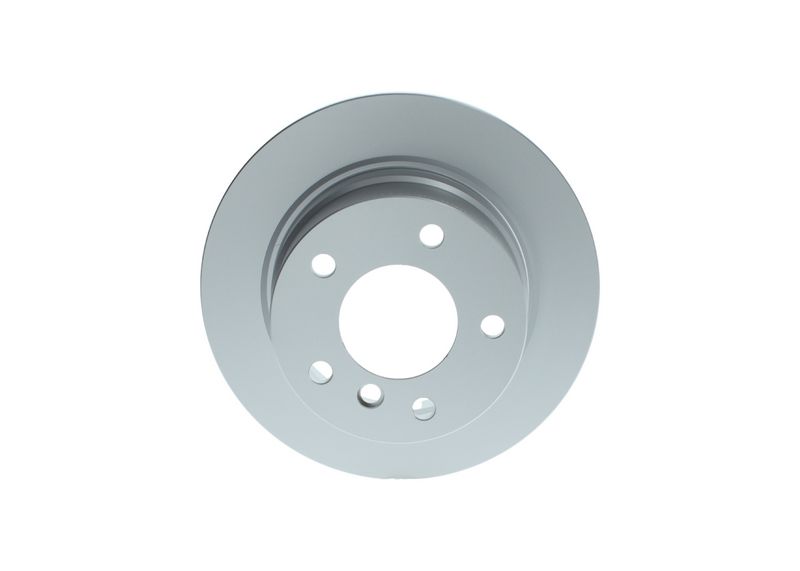

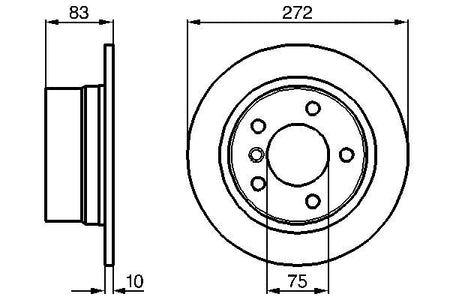

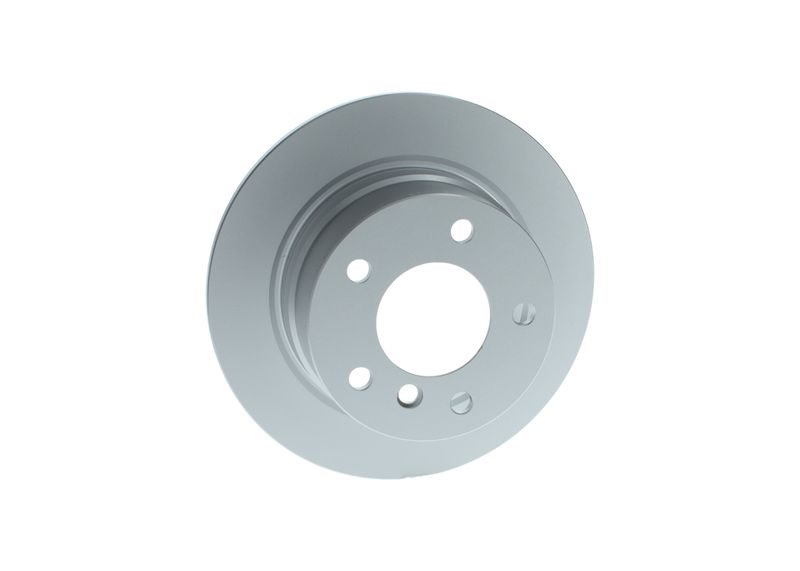

The Bosch 0986478439 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 271.8 mm outer diameter, 10 mm brake disc thickness, 8.4 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 271.8

Brake Disc Thickness [mm] : 10

Minimum thickness [mm] : 8.4

Height [mm] : 83.2

Bolt Hole Circle Ø [mm] : 120

Brake Disc Type : solid

Centering Diameter [mm] : 75

Number of Holes : 5

Surface : Coated

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 14.6
