BOSCH

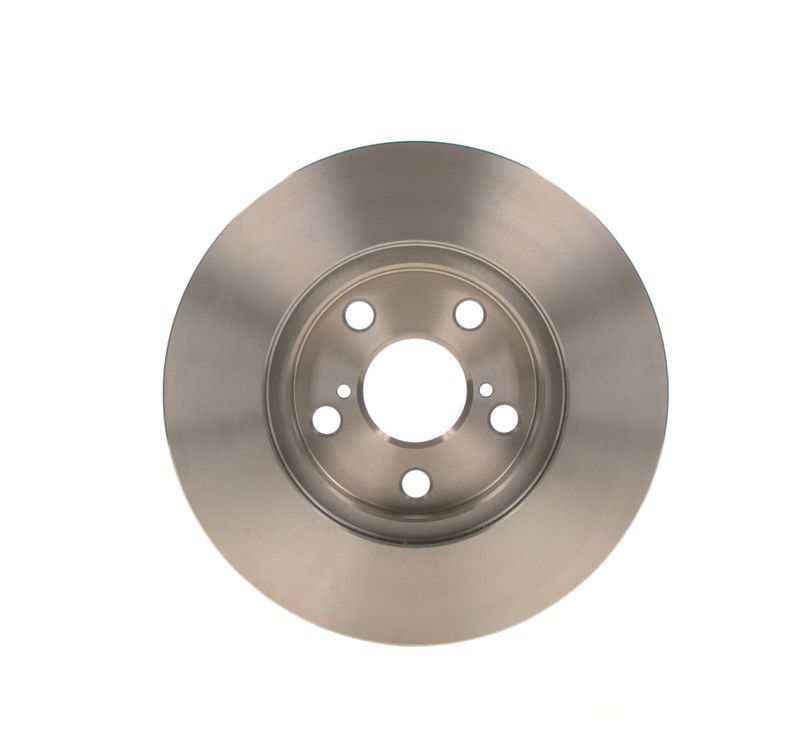

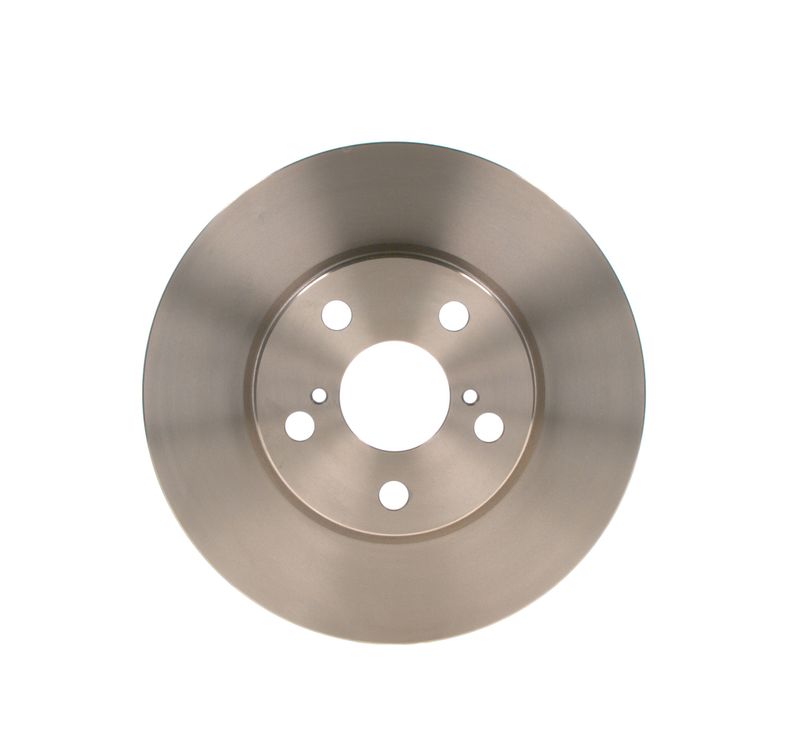

Bosch 0986478451 Brake Disc

SKU: 0986478451

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£47.66 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA

AVENSIS (_T22_)

Description	Cylinder Capacity	Horse Power	Year
1.6 i (AT220_, AT220R)	1587 CCM	101 HP	09/1997 - 10/2000
1.6 i (AT220_, AT220R)	1587 CCM	110 HP	10/1997 - 06/2000
1.8 i (AT221_, AT221R)	1762 CCM	110 HP	09/1997 - 10/2000
2.0 i (ST220_, ST220R)	1998 CCM	128 HP	09/1997 - 10/2000
2.0 TD (CT220_, CT220R)	1974 CCM	90 HP	09/1997 - 02/2003
2.0 D-4D (CDT220_, CDT220R)	1995 CCM	110 HP	10/1999 - 02/2003
1.6 VVT-i (ZZT220_, ZZT220R)	1598 CCM	110 HP	10/2000 - 02/2003
1.8 VVT-i (ZZT221_, ZZT221R)	1794 CCM	129 HP	10/2000 - 02/2003
2.0 VVT-i (AZT220_, AZT220R)	1998 CCM	150 HP	10/2000 - 02/2003
2.0 D-4D (CDT220)	1995 CCM	116 HP	09/2002 - 02/2003

AVENSIS Liftback (_T22_)

Description	Cylinder Capacity	Horse Power	Year
1.6 i (AT220_, AT220R)	1587 CCM	101 HP	09/1997 - 10/2000
1.6 i (AT220_, AT220R)	1587 CCM	110 HP	09/1997 - 10/2000
1.8 i (AT221_, AT221R)	1762 CCM	110 HP	09/1997 - 10/2000
2.0 i (ST220_, ST220R)	1998 CCM	128 HP	09/1997 - 10/2000
2.0 TD (CT220_, CT220R)	1974 CCM	90 HP	09/1997 - 02/2003
2.0 D-4D (CDT220_, CDT220R)	1995 CCM	110 HP	10/1999 - 02/2003
1.6 VVT-i (ZZT220_, ZZT220R)	1598 CCM	110 HP	10/2000 - 02/2003
1.8 VVT-i (ZZT221_, ZZT221R)	1794 CCM	129 HP	10/2000 - 02/2003
2.0 VVT-i (AZT220_, AZT220R)	1998 CCM	150 HP	10/2000 - 02/2003
2.0 D (CDT220_)	1995 CCM	115 HP	09/2002 - 02/2003

AVENSIS Estate (_T22_)

Description	Cylinder Capacity	Horse Power	Year
1.6 i (AT220_, AT220R)	1587 CCM	101 HP	09/1997 - 10/2000
1.6 i (AT220_)	1587 CCM	110 HP	09/1997 - 10/2000
1.8 i (AT221_, AT221R)	1762 CCM	110 HP	09/1997 - 10/2000
2.0 i (ST220_, ST220R)	1998 CCM	128 HP	09/1997 - 10/2000
2.0 TD (CT220_, CT220R)	1974 CCM	90 HP	09/1997 - 02/2003
2.0 D-4D (CDT220_, CDT220R)	1995 CCM	110 HP	10/1999 - 02/2003
1.6 VVT-i (ZZT220_, ZZT220R)	1598 CCM	110 HP	07/2000 - 02/2003
2.0 VVT-i (AZT220_, AZT220R)	1998 CCM	150 HP	10/2000 - 02/2003
1.8 VVT-i (ZZT221_, ZZT221R)	1794 CCM	129 HP	10/2000 - 02/2003
2.0 D (CDT220_)	1995 CCM	115 HP	09/2002 - 02/2003
2.0 D (CT220_)	1974 CCM	82 HP	10/1997 - 05/1998

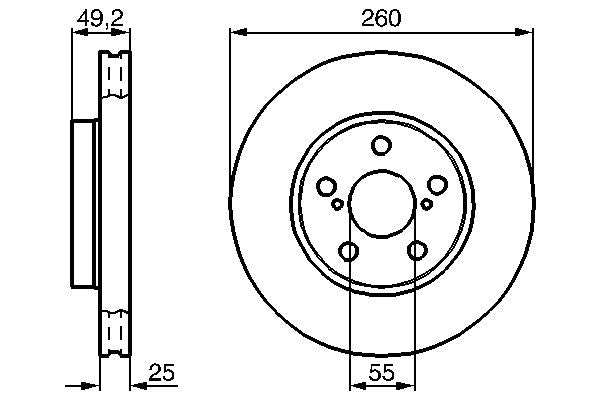

The Bosch 0986478451 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 260 mm outer diameter, 25 mm brake disc thickness, 23 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 260

Brake Disc Thickness [mm] : 25

Minimum thickness [mm] : 23

Height [mm] : 49.3

Bolt Hole Circle Ø [mm] : 100

Brake Disc Type : Vented

Centering Diameter [mm] : 55

Number of Holes : 5

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 14.5

APEC : DSK793
BLUE PRINT : ADT343112
BORG & BECK : BBD4131
BREMBO : 09.7395.10
BREMBO : 09.7395.11
DELPHI : BG3347
FEBI BILSTEIN : 26072
FTE : 9072199
FTE : 9082318
HELLA : 8DD 355 106-511
MEYLE : 30-15 521 0057
MINTEX : MDC1068
National : NBD989
SKF : VKBD 80818 V2
TEXTAR : 92096903
TRW : DF4046
VALEO : 186705
VALEO : 673352
