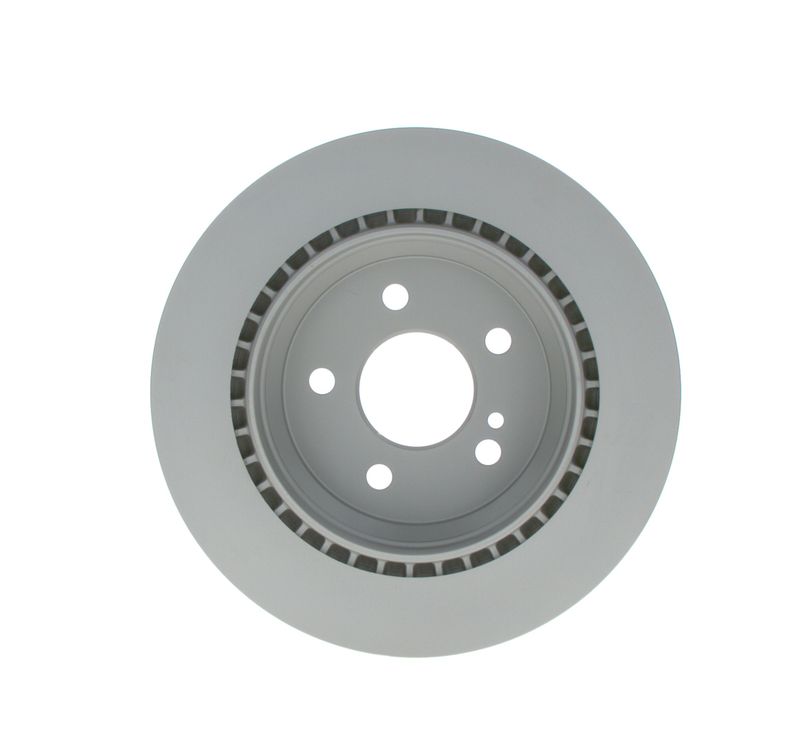

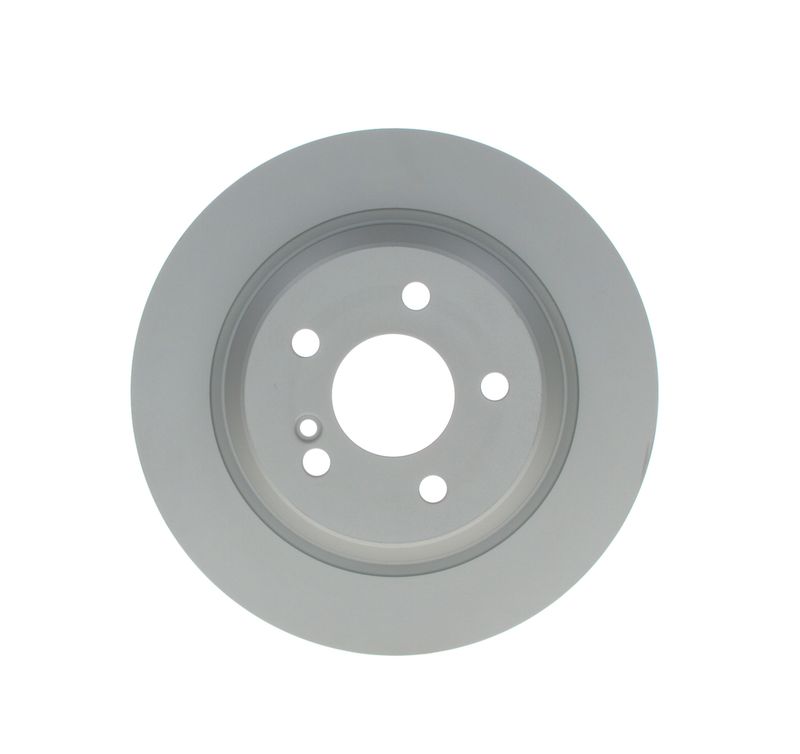

Bosch 0986478473 Brake Disc
Your selected vehicle
Regular price
£86.92
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

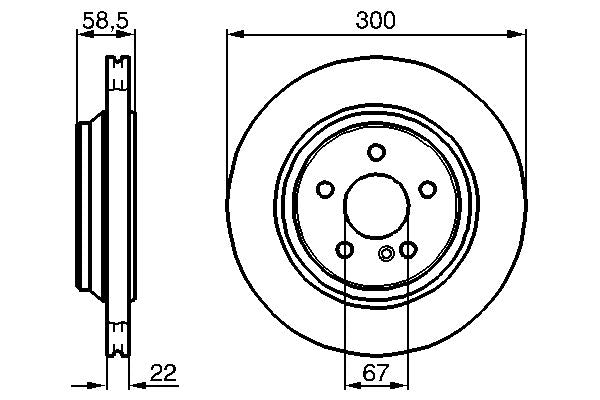

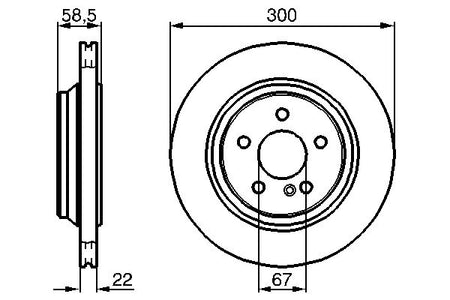

The Bosch 0986478473 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 300 mm outer diameter, 22 mm brake disc thickness, 19.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Outer Diameter [mm] :
300
Brake Disc Thickness [mm] :
22
Minimum thickness [mm] :
19.4
Height [mm] :
58.5
Bolt Hole Circle Ø [mm] :
112
Brake Disc Type :
Vented
Centering Diameter [mm] :
67
Number of Holes :
5
Surface :
Coated
Machining :
Alloyed/High-carbon
fulfils ECE standard :
ECE-R90
Bore Diameter up to [mm] :
15.2
- Vendor BOSCH
- SKU 0986478473
- MERCEDES-BENZ : A 220 423 02 12 220 423 02 12
- APEC : DSK2145
- BLUE PRINT : ADU1743110
- BORG & BECK : BBD4291
- BREMBO : 09.9738.10
- BREMBO : 09.9738.11
- DELPHI : BG3726
- FEBI BILSTEIN : 23177
- FTE : 9072582
- FTE : 9082491
- FTE : 9082553
- HELLA : 8DD 355 106-911
- MEYLE : 015 523 0035
- MEYLE : 015 523 0035/PD
- MINTEX : MDC1428
- National : NBD1066
- TEXTAR : 92099503
- TRW : DF4437
- BOSCH : BD402
- BOSCH : E1 90R-02C0438/1642
