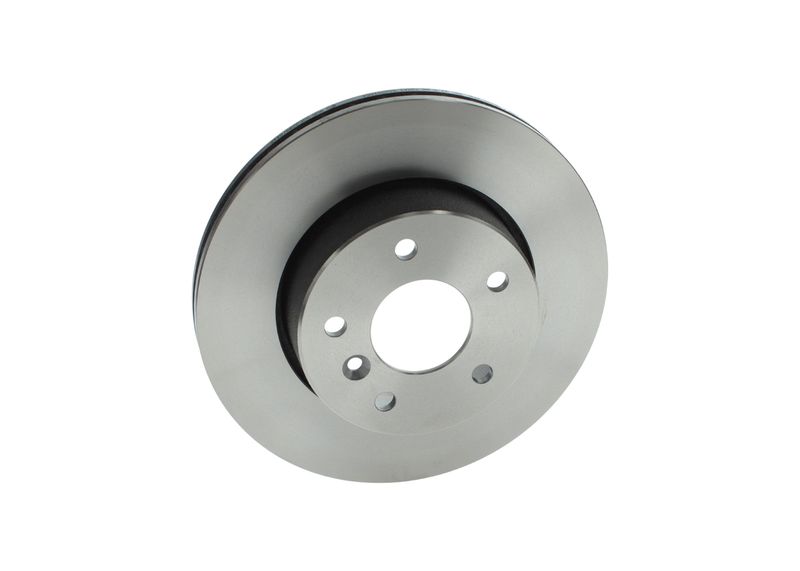

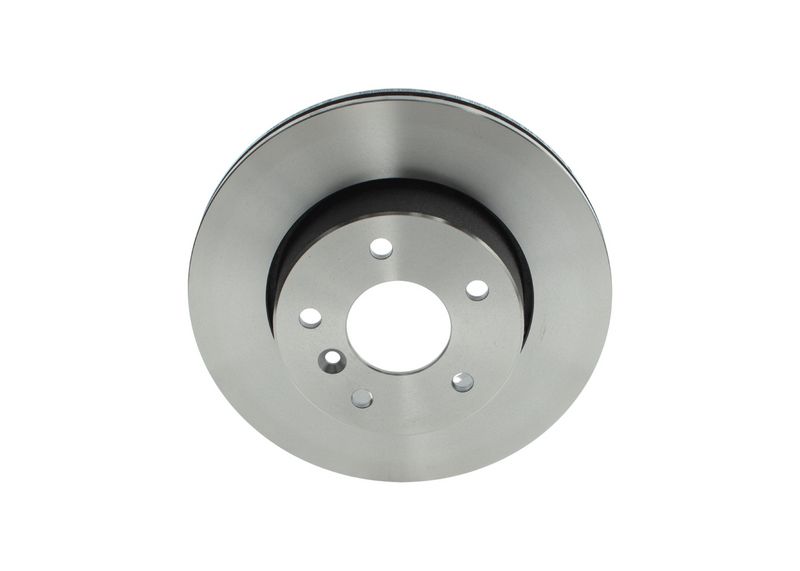

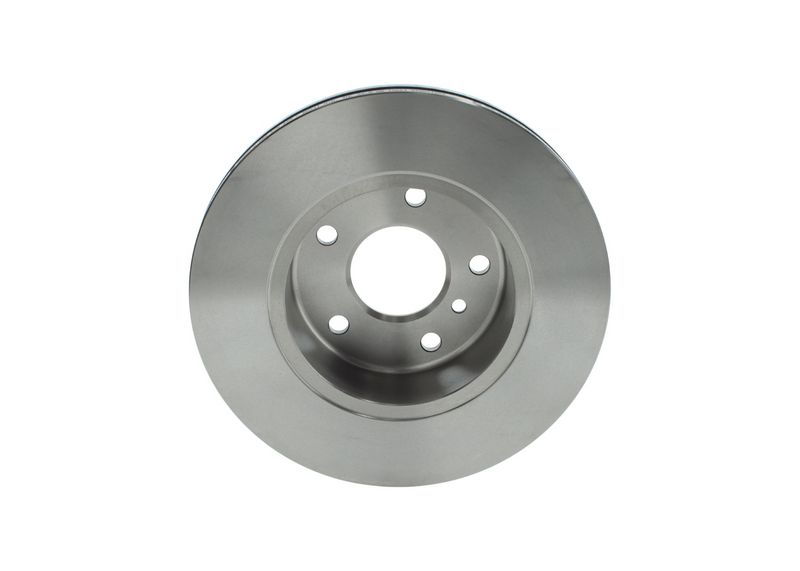

Bosch 0986478483 Brake Disc

5.0/5 65 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986478483

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£50.65 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

LAND ROVER
RANGE ROVER Mk II (P38A)
Description Cylinder Capacity Horse Power Year
2.5 D 4x4 2497 CCM 136 HP 07/1994 - 03/2002
3.9 4x4 3947 CCM 190 HP 07/1994 - 03/2002
4.6 4x4 4553 CCM 224 HP 07/1994 - 03/2002
4.0 4x4 3947 CCM 185 HP 01/1995 - 03/2002
4.6 4x4 4554 CCM 218 HP 06/1998 - 03/2002
4.6 4x4 4554 CCM 228 HP 09/1995 - 03/2002

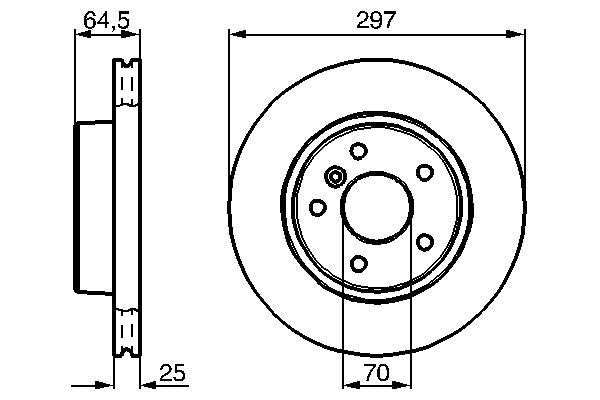

The Bosch 0986478483 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 297 mm outer diameter, 25 mm brake disc thickness, 22 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 297
Brake Disc Thickness [mm] : 25
Minimum thickness [mm] : 22
Height [mm] : 64.6
Bolt Hole Circle Ø [mm] : 120
Brake Disc Type : Vented
Centering Diameter [mm] : 70.04
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 14.4
  • Vendor BOSCH
  • SKU 0986478483
  • Barcode 3165143199732
  • ROVER : NTC 8780
  • LAND ROVER : NTC8780
  • BLUE PRINT : ADJ134319
  • BORG & BECK : BBD4084
  • BREMBO : 09.6839.10
  • BREMBO : 09.6839.11
  • DELPHI : BG2860
  • MEYLE : 45-83 521 0005/PD
  • MINTEX : MDC984
  • National : NBD809
  • TEXTAR : 92093600
  • TRW : DF2766
  • BOSCH : BD411
  • BOSCH : E1 90 R - 02C0289/0445
