BOSCH

Bosch 0986478495 Brake Disc

SKU: 0986478495

Your selected vehicle

Out of stock

Out of Stock

£68.86 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VOLVO

S60 I (384)

Description	Cylinder Capacity	Horse Power	Year
2.4	2435 CCM	140 HP	07/2000 - 04/2010
2.4	2435 CCM	170 HP	11/2000 - 04/2010
2.4 T	2435 CCM	200 HP	07/2000 - 04/2010
T5	2319 CCM	250 HP	07/2000 - 04/2010
D5	2401 CCM	163 HP	01/2001 - 04/2010
2.4 T AWD	2435 CCM	200 HP	06/2001 - 04/2010
2.0 T	1984 CCM	180 HP	07/2000 - 04/2010
2.4 Bifuel (CNG)	2435 CCM	140 HP	07/2001 - 04/2010
2.4 D	2401 CCM	130 HP	05/2001 - 04/2010
2.5 T	2521 CCM	210 HP	01/2003 - 04/2010
2.5 T AWD	2521 CCM	210 HP	07/2002 - 04/2010
T5	2401 CCM	260 HP	04/2004 - 04/2010
D5	2401 CCM	185 HP	03/2005 - 04/2010
2.4 D	2400 CCM	126 HP	03/2005 - 04/2010

S80 I (184)

Description	Cylinder Capacity	Horse Power	Year
2.9	2922 CCM	204 HP	05/1998 - 07/2006
T6	2783 CCM	272 HP	05/1998 - 12/2001
2.4	2435 CCM	140 HP	01/1999 - 07/2006
2.0 T	1984 CCM	226 HP	06/1998 - 07/2006
2.5 TDI	2460 CCM	140 HP	01/1999 - 07/2006
2.0	1984 CCM	163 HP	06/1998 - 07/2006
2.4	2435 CCM	170 HP	01/1999 - 07/2006
2.9	2922 CCM	200 HP	03/1999 - 07/2006
2.0 T	1984 CCM	180 HP	12/1999 - 07/2006
2.4 T	2435 CCM	200 HP	06/2000 - 07/2006
D5	2401 CCM	163 HP	08/2001 - 07/2006
2.4 Bifuel (CNG)	2435 CCM	140 HP	09/2001 - 07/2006
3.0	2922 CCM	196 HP	06/2001 - 07/2006
T6	2922 CCM	272 HP	06/2001 - 07/2006
2.4 D	2401 CCM	131 HP	10/2001 - 07/2006

V70 Mk II (285)

Description	Cylinder Capacity	Horse Power	Year
T5	2319 CCM	250 HP	11/1999 - 12/2004
2.4 T	2435 CCM	200 HP	11/1999 - 08/2003
2.5 TDI	2460 CCM	140 HP	11/1999 - 08/2007
2.4	2435 CCM	140 HP	03/2000 - 08/2007
2.4	2435 CCM	170 HP	03/2000 - 08/2007
D5	2401 CCM	163 HP	01/2001 - 12/2008
2.4 Bifuel (CNG)	2435 CCM	140 HP	09/2001 - 08/2007
2.0 T	1984 CCM	180 HP	11/1999 - 08/2007
2.4 T AWD	2435 CCM	200 HP	09/2001 - 08/2002
2.4 D	2401 CCM	131 HP	07/2001 - 08/2007
2.5 T AWD	2521 CCM	209 HP	07/2002 - 08/2007
D5 AWD	2401 CCM	163 HP	07/2002 - 08/2007
2.5 T	2521 CCM	209 HP	09/2002 - 10/2007
T5	2401 CCM	260 HP	04/2004 - 08/2007

XC70 I Cross Country (295)

Description	Cylinder Capacity	Horse Power	Year
2.4 T XC AWD	2435 CCM	200 HP	03/2000 - 09/2002
D5 XC AWD	2401 CCM	163 HP	09/2002 - 08/2007
2.5 T XC AWD	2521 CCM	209 HP	09/2002 - 10/2007
D5 AWD	2401 CCM	185 HP	12/2005 - 08/2007

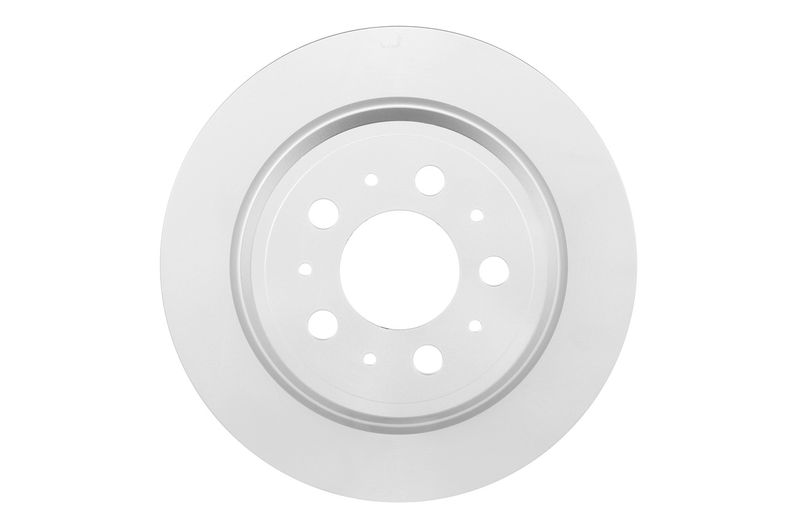

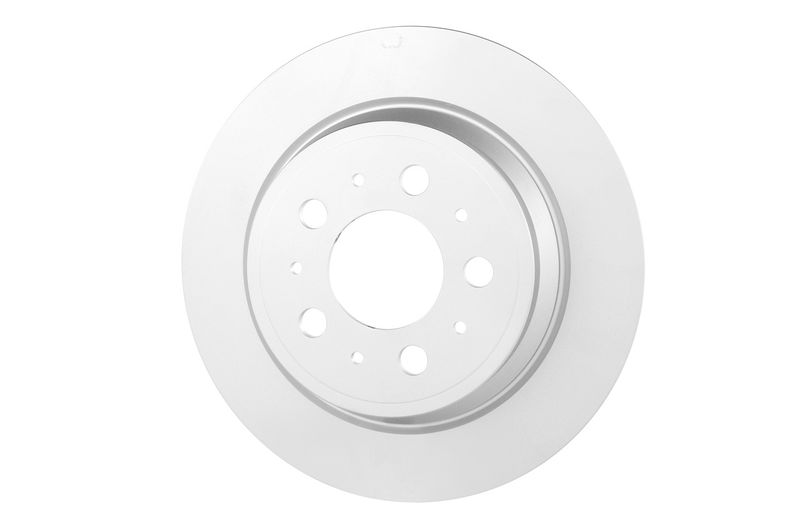

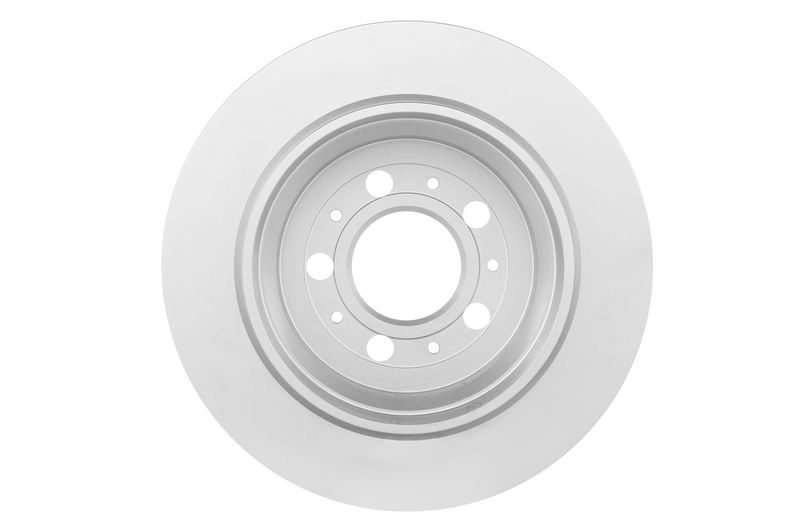

The Bosch 0986478495 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 288 mm outer diameter, 11.9 mm brake disc thickness, 10 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

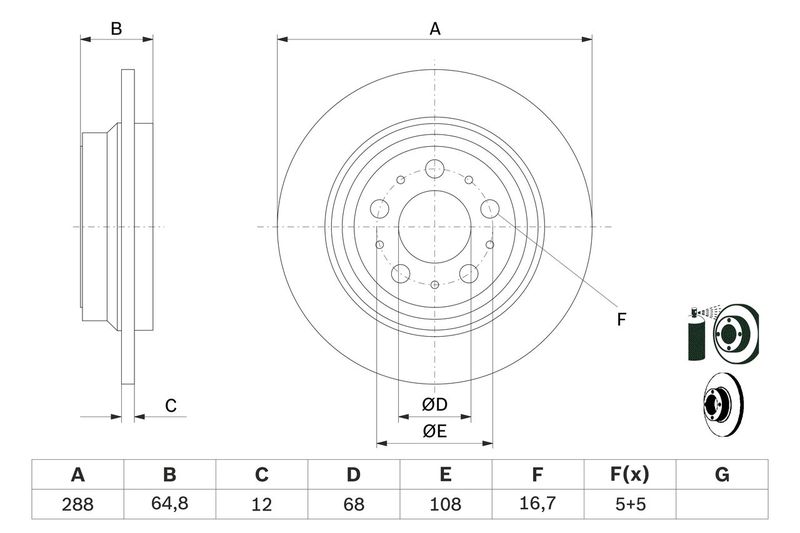

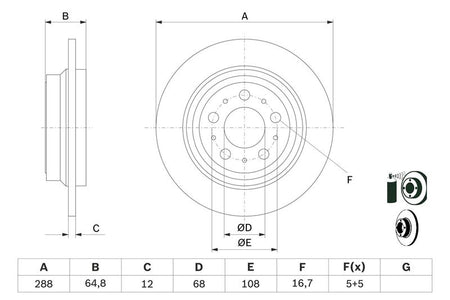

Function : Brake Disc

Outer Diameter [mm] : 288

Brake Disc Thickness [mm] : 11.9

Minimum thickness [mm] : 10

Height [mm] : 64.8

Bolt Hole Circle Ø [mm] : 108

Brake Disc Type : solid

Centering Diameter [mm] : 68

Number of Holes : 5

Surface : Coated

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 16.7

APEC : DSK829
APEC : SDK6037
BLUE PRINT : ADF124333
BORG & BECK : BBD4216
BREMBO : 08.7765.10
BREMBO : 08.7765.11
BREMBO : 08.7765.1X
BREMBO : 08.7765.75
DELPHI : BG3515
Fahren : FBD6037
FEBI BILSTEIN : 18051
FTE : 9072189
FTE : 9082102
HELLA : 8DD 355 107-091
MEYLE : 515 523 0014
MEYLE : 515 523 0014/PD
MINTEX : MDC1434C
NAPA : NBD5358
National : NBD1073
SKF : VKBD 90202 S2
TEXTAR : 92100703
TRW : DF4066
VALEO : 186841
VALEO : 672596

Bosch 0986478495 Brake Disc
