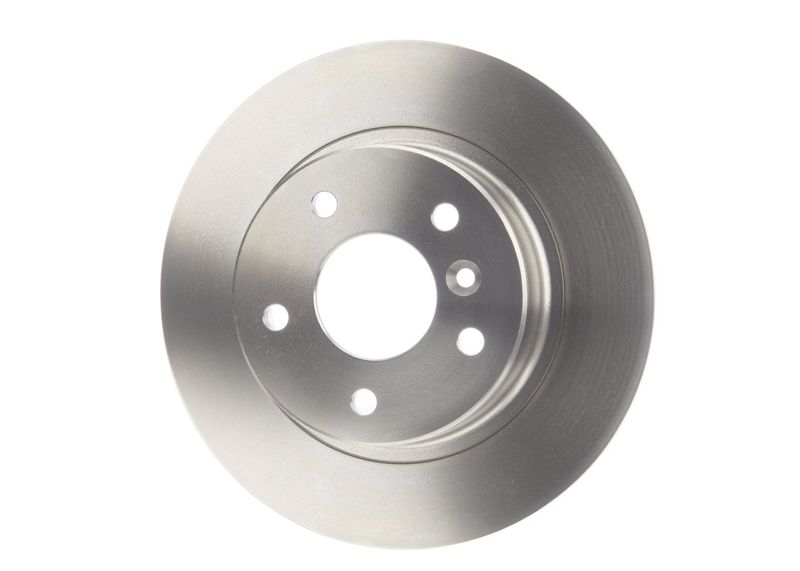

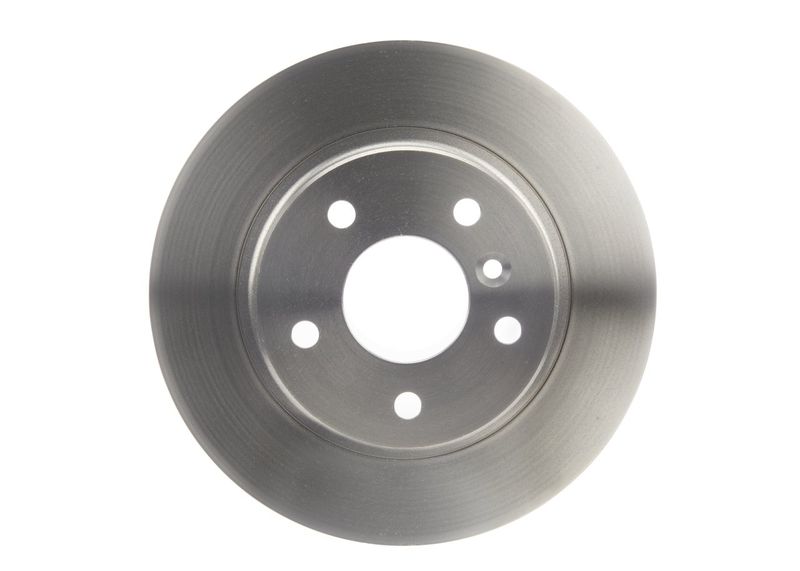

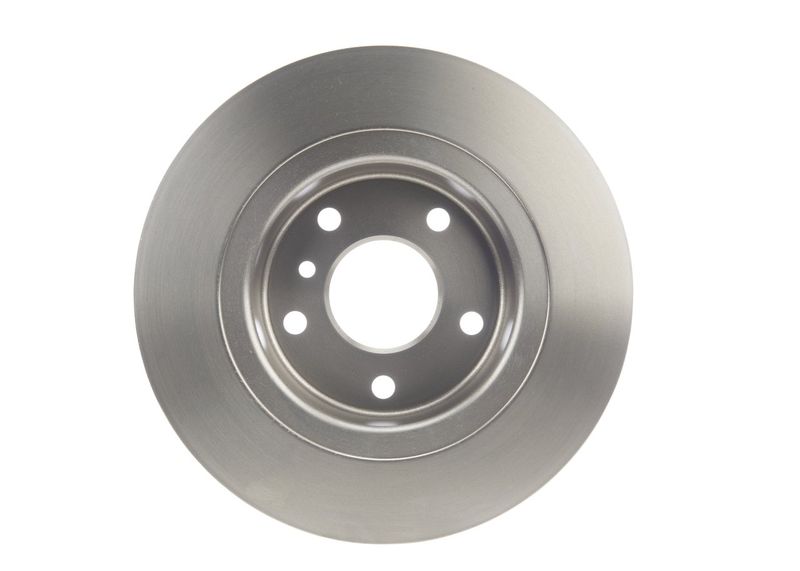

Bosch 0986478497 Brake Disc
Your selected vehicle
Regular price
£73.14
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

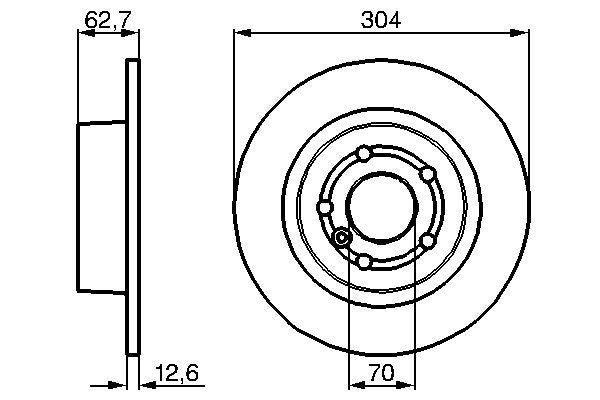

The Bosch 0986478497 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 304 mm outer diameter, 12.6 mm brake disc thickness, 11.7 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Outer Diameter [mm] :
304
Brake Disc Thickness [mm] :
12.6
Minimum thickness [mm] :
11.7
Height [mm] :
62.6
Bolt Hole Circle Ø [mm] :
120
Brake Disc Type :
solid
Centering Diameter [mm] :
70.1
Number of Holes :
5
Surface :
Oiled
fulfils ECE standard :
ECE-R90
Bore Diameter up to [mm] :
14.4
- Vendor BOSCH
- SKU 0986478497
- ROVER : NTC 8781 SBC 0004 70 SDB 0002 10 SDB 0004 70
- LAND ROVER : NTC8781 SBC000470 SDB000210 SDB000470
- APEC : DSK952
- APEC : SDK6170
- BLUE PRINT : ADJ134327
- BORG & BECK : BBD4085
- BREMBO : 08.6838.10
- BREMBO : 08.6838.11
- DELPHI : BG3227C
- Fahren : FBD6170
- FEBI BILSTEIN : 108652
- FTE : 9072631
- FTE : 9082722
- HELLA : 8DD 355 106-371
- MEYLE : 45-15 523 0006/PD
- MINTEX : MDC985
- MINTEX : MDC985C
- NAPA : NBD5721
- National : NBD810
- SKF : VKBD 90654 S1
- TEXTAR : 92095200
- TEXTAR : 92095203
- TRW : DF2791S
- VALEO : 673357
- BOSCH : BD423
- BOSCH : E1 90 R - 02 C0371/0717
