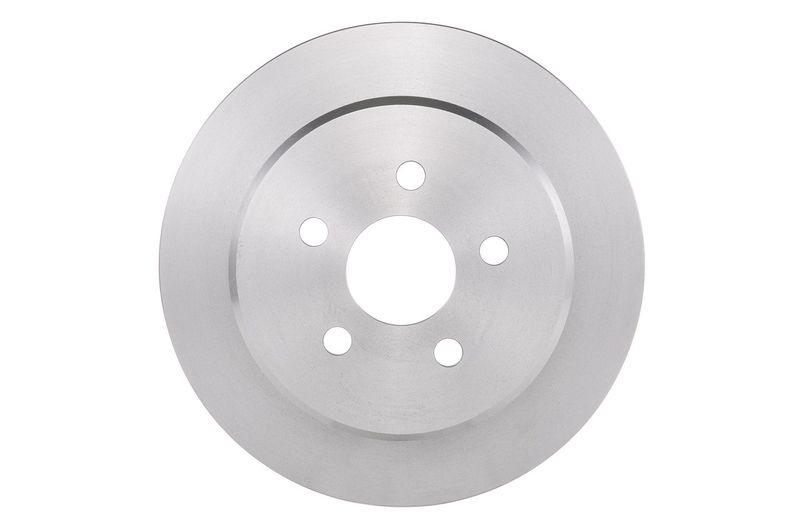

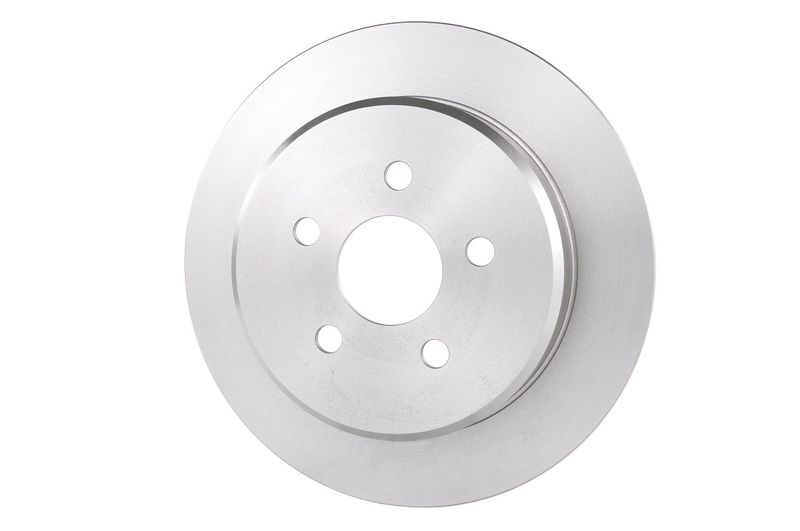

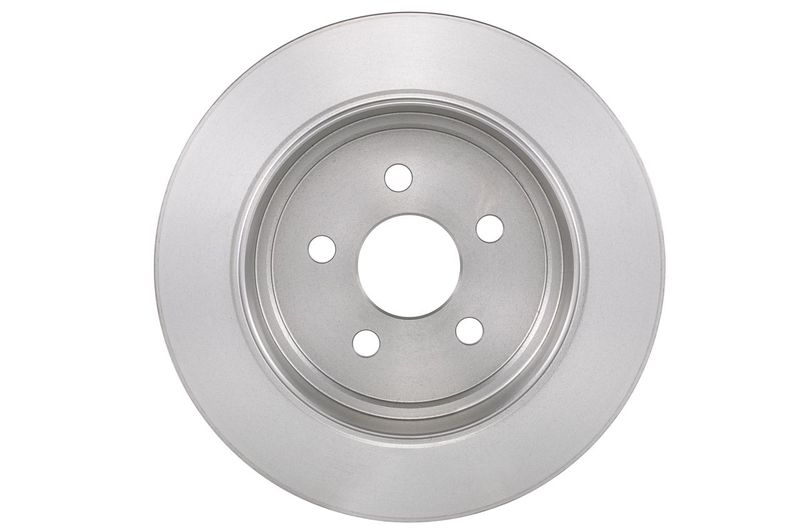

Bosch 0986478514 Brake Disc

Position: Rear
5.0/5 78 reviews
SKU: 0986478514

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
Regular price £50.71 inc. VAT

Complete the job

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

CHRYSLER
CIRRUS
Description Cylinder Capacity Horse Power Year
2.0 LX 1996 CCM 131 HP 05/1994 - 09/1997
2.0 LX 1996 CCM 133 HP 10/1997 - 09/2000
2.5 LX 2497 CCM 163 HP 10/1994 - 09/2000
NEON (PL)
Description Cylinder Capacity Horse Power Year
2.0 16V 1996 CCM 133 HP 05/1994 - 08/1999
2.0 16V 1996 CCM 145 HP 06/1994 - 08/1999
2.0 16V 1996 CCM 148 HP 04/1996 - 08/1999
1.8 16V 1796 CCM 116 HP 09/1997 - 08/1999
2.0 16V 1996 CCM 152 HP 10/1994 - 09/1998
NEON II
Description Cylinder Capacity Horse Power Year
2.0 16V 1996 CCM 133 HP 08/1999 - 12/2006
1.6 1598 CCM 116 HP 11/2001 - 12/2006
2.0 16V R/T 1996 CCM 150 HP 10/2001 - 12/2006
2.0 16V 1996 CCM 131 HP 10/2002 - 12/2006
1.8 1796 CCM 124 HP 01/2000 - 12/2001
2.0 16V R/T 1996 CCM 152 HP 10/2001 - 12/2004
PT CRUISER Hatchback (PT_)
Description Cylinder Capacity Horse Power Year
2.0 1996 CCM 141 HP 06/2000 - 09/2004
2.4 2429 CCM 150 HP 06/2000 - 12/2010
1.6 1598 CCM 116 HP 11/2001 - 12/2010
2.2 CRD 2148 CCM 121 HP 03/2002 - 12/2010
GT 2.4 2429 CCM 223 HP 08/2003 - 12/2010
PT CRUISER Combi Van (PT_)
Description Cylinder Capacity Horse Power Year
2.0 1996 CCM 141 HP 10/2002 - 03/2004
2.2 CRD 2148 CCM 121 HP 10/2002 - 08/2008
STRATUS (JA)
Description Cylinder Capacity Horse Power Year
2.0 LE 1996 CCM 131 HP 12/1995 - 04/2001
2.5 LX V6 2497 CCM 163 HP 12/1995 - 04/2001
2.4 16 V 2429 CCM 140 HP 12/1995 - 04/2001
2.0 16V 1996 CCM 133 HP 12/1995 - 04/2001
2.4 16V 2429 CCM 152 HP 12/1995 - 04/2001
2.5 V6 2497 CCM 170 HP 12/1995 - 04/2001
STRATUS Convertible (JX)
Description Cylinder Capacity Horse Power Year
2.0 LE 1996 CCM 131 HP 06/1996 - 04/2001
2.5 LX 2499 CCM 163 HP 04/1996 - 04/2001
DODGE
NEON
Description Cylinder Capacity Horse Power Year
2.0 16V 1996 CCM 145 HP 06/1994 - 08/1999
2.0 16V 1996 CCM 133 HP 05/1994 - 08/1999
NEON II
Description Cylinder Capacity Horse Power Year
2.0 16V 1996 CCM 133 HP From 08/1999
2.0 16V 1996 CCM 152 HP 08/1999 - 12/2002
STRATUS
Description Cylinder Capacity Horse Power Year
2.4 16 V 2429 CCM 140 HP 12/1995 - 04/2001
2.0 16V 1996 CCM 133 HP 12/1995 - 04/2001
2.4 16V 2429 CCM 152 HP 12/1995 - 04/2001
2.5 V6 2497 CCM 170 HP 12/1995 - 04/2001

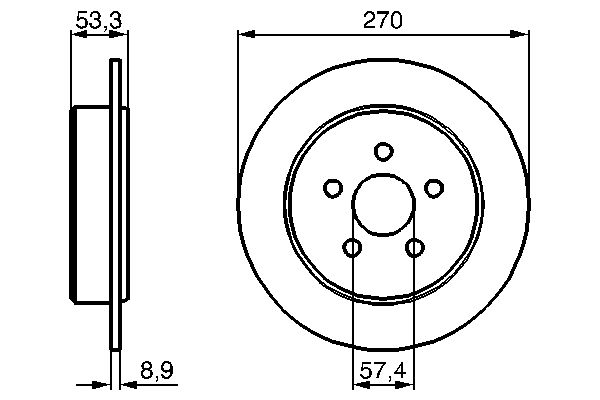

The Bosch 0986478514 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 269.8 mm outer diameter, 9 mm brake disc thickness, 7.3 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 269.8
Brake Disc Thickness [mm] : 9
Minimum thickness [mm] : 7.3
Height [mm] : 52.9
Bolt Hole Circle Ø [mm] : 100
Brake Disc Type : solid
Centering Diameter [mm] : 57.4
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 14.7
  • Vendor BOSCH
  • SKU 0986478514
  • Barcode 4047024190979
  • CHRYSLER : 04509 553 04509 553AA 04509 553AB 04509 553AC 04616 433 4509 553 4509 553AA 4509 553AB 4509 553AC 4616 433
  • DODGE : 04509 553AA 04509 553AB 04509 553AC 04616 433 4509 553AA 4509 553AB 4509 553AC 4616 433
  • BLUE PRINT : ADA104329
  • BORG & BECK : BBD4373
  • BREMBO : 08.B029.10
  • DELPHI : BG3593
  • FEBI BILSTEIN : 108541
  • FTE : 9072273
  • FTE : 9082345
  • HELLA : 8DD 355 107-921
  • MINTEX : MDC1330
  • National : NBD882
  • SKF : VKBD 90653 S2
  • TEXTAR : 92108600
  • TRW : DF4533
  • TRW : DF6282
  • VALEO : 197719
  • BOSCH : BD438
  • BOSCH : E1 90 R - 02C0357/0205
