Bosch 0986478526 Brake Disc - 1
Bosch 0986478526 Brake Disc - 1
BOSCH

Bosch 0986478526 Brake Disc

SKU: 0986478526
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£52.28 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
190 (W201)
Description Cylinder Capacity Horse Power Year
E 2.5-16 Evolution (201.036) 2498 CCM 194 HP 03/1989 - 08/1993
E-CLASS (W124)
Description Cylinder Capacity Horse Power Year
E 500 (124.036) 4973 CCM 320 HP 06/1993 - 06/1995
E 60 AMG (124.036) 5956 CCM 381 HP 05/1994 - 06/1995
SL (R129)
Description Cylinder Capacity Horse Power Year
280 (129.058) 2799 CCM 193 HP 08/1993 - 10/2001
300 SL (129.060) 2960 CCM 190 HP 03/1989 - 08/1993
300 SL-24 (129.061) 2960 CCM 231 HP 03/1989 - 07/1993
320 (129.063) 3199 CCM 231 HP 09/1993 - 10/2001
500 (129.067) 4973 CCM 320 HP 09/1992 - 10/2001
500 SL (129.066) 4973 CCM 326 HP 09/1989 - 08/1992
600 (129.076) 5987 CCM 394 HP 07/1992 - 10/2001
60 AMG (129.067) 5956 CCM 381 HP 05/1997 - 10/2001
280 (129.059) 2799 CCM 204 HP 05/1998 - 10/2001
320 (129.064) 3199 CCM 224 HP 05/1998 - 10/2001

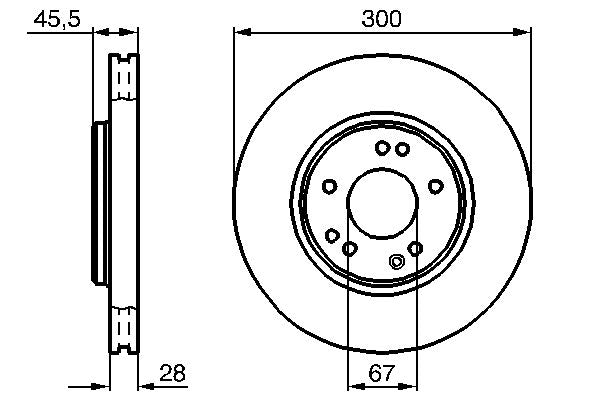

The Bosch 0986478526 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 300 mm outer diameter, 27.9 mm brake disc thickness, 25.4 mm minimum thickness, and vented and internally vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 300
Brake Disc Thickness [mm] : 27.9
Minimum thickness [mm] : 25.4
Height [mm] : 45.5
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : Vented
Centering Diameter [mm] : 67
Number of Holes : 5
Surface : Coated
Machining : Alloyed/High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15
Brake Disc Type : internally vented
  • Vendor BOSCH
  • SKU 0986478526
  • Barcode 4047024190849
  • MERCEDES-BENZ : A 124 421 26 12 A 129 421 06 12 A 129 421 10 12 A 129 421 20 12 124 421 26 12 129 421 06 12 129 421 10 12 129 421 20 12
  • APEC : DSK929
  • BLUE PRINT : ADU174323
  • BREMBO : 09.5373.20
  • DELPHI : BG2675
  • FEBI BILSTEIN : 10686
  • FTE : 9071265
  • HELLA : 8DD 355 102-851
  • MEYLE : 015 521 2040
  • MINTEX : MDC765
  • TEXTAR : 92057900
  • TRW : DF1594
  • BOSCH : BD449
  • BOSCH : E1 90R-02C0373/0286
