Bosch 0986478527 Brake Disc

Position: Check fitment
5.0/5 78 reviews
SKU: 0986478527

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
Regular price £57.43 inc. VAT

Complete the job

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

MERCEDES-BENZ
S-CLASS (W140)
Description Cylinder Capacity Horse Power Year
S 350 Turbo-D (140.134) 3449 CCM 150 HP 01/1993 - 10/1998
S 280 (140.028) 2799 CCM 193 HP 02/1993 - 10/1998
300 SE 2.8 (140.028) 2799 CCM 197 HP 01/1993 - 10/1998
300 SE, SEL/S320 (140.032, 140.033) 3199 CCM 231 HP 03/1991 - 10/1998
S 420 (140.042, 140.043) 4196 CCM 279 HP 01/1993 - 10/1998
400 SE, SEL/S420 (140.042, 140.043) 4196 CCM 286 HP 02/1991 - 10/1998
S 500 (140.050, 140.051) 4973 CCM 320 HP 01/1993 - 10/1998
500 SE, SEL (140.050, 140.051) 4973 CCM 326 HP 02/1991 - 10/1998
S 600 (140.056, 140.057) 5987 CCM 394 HP 01/1993 - 10/1998
600 SE, SEL (140.056, 140.057) 5987 CCM 408 HP 04/1991 - 12/1992
S 300 Turbo-D (140.135) 2996 CCM 177 HP 05/1996 - 10/1998
S-CLASS Coupe (C140)
Description Cylinder Capacity Horse Power Year
500 SEC / CL 500 (140.070) 4973 CCM 320 HP 10/1992 - 12/1999
SEC/CL 600 (140.076) 5987 CCM 394 HP 09/1992 - 02/1999
SEC/CL 420 (140.063) 4196 CCM 279 HP 10/1994 - 02/1999

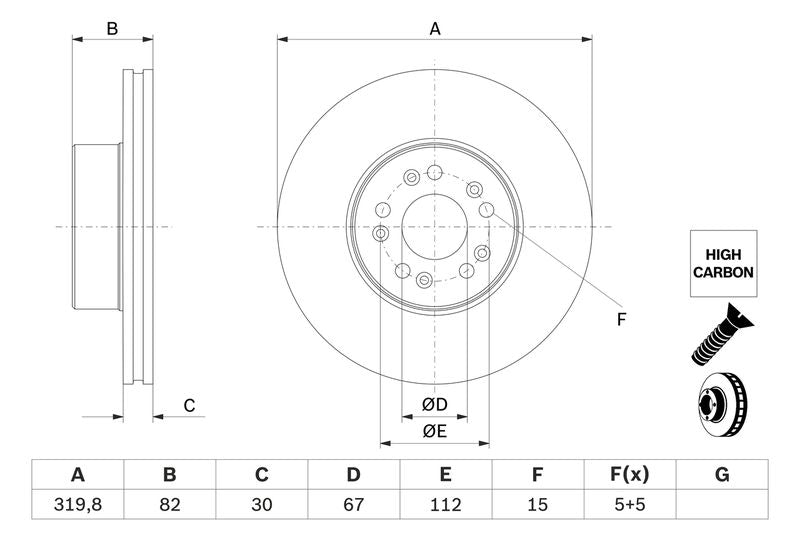

The Bosch 0986478527 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 319.8 mm outer diameter, 30 mm brake disc thickness, 27.4 mm minimum thickness, and vented and internally vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 319.8
Brake Disc Thickness [mm] : 30
Minimum thickness [mm] : 27.4
Height [mm] : 82
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : Vented
Centering Diameter [mm] : 67
Number of Holes : 5
Surface : Oiled
Machining : Alloyed/High-carbon
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15
Brake Disc Type : internally vented
  • Vendor BOSCH
  • SKU 0986478527
  • Barcode 3165142718828
  • MERCEDES-BENZ : A 140 421 02 12 A 140 421 09 12 A 140 421 10 12 140 421 02 12 140 421 09 12 140 421 10 12
  • APEC : DSK2001
  • APEC : DSK2023
  • BLUE PRINT : ADU174375
  • BORG & BECK : BBD5870S
  • BREMBO : 09.5704.20
  • BREMBO : 09.8726.10
  • DELPHI : BG739
  • FEBI BILSTEIN : 08128
  • FTE : 9071291
  • HELLA : 8DD 355 102-691
  • MEYLE : 015 521 2021
  • MINTEX : MDC793
  • National : NBD404
  • TEXTAR : 92056600
  • TRW : DF2595S
  • BOSCH : BD450
  • BOSCH : E1 90R-02C0373/0229
