BOSCH

Bosch 0986478531 Brake Disc

SKU: 0986478531
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£50.95 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MITSUBISHI
CARISMA (DA_)
Description Cylinder Capacity Horse Power Year
1.8 MSX - 16V (DA2A) 1834 CCM 140 HP 07/1995 - 07/1997
1.8 (DA2A) 1834 CCM 116 HP 07/1995 - 07/1997
1.9 TD (DA4A) 1870 CCM 90 HP 10/1996 - 09/2000
1.6 (DA1A) 1597 CCM 99 HP 05/1997 - 06/2006
1.8 16V GDI (DA2A) 1834 CCM 125 HP 09/1997 - 06/2006
1.8 GDI (DA2A) 1834 CCM 122 HP 10/2000 - 06/2006
1.6 (DA1A) 1597 CCM 95 HP 12/1998 - 06/2006
1.6 (DA1A) 1597 CCM 103 HP 05/1995 - 12/2003
CARISMA Saloon (DA_)
Description Cylinder Capacity Horse Power Year
1.9 TD (DA4A) 1870 CCM 90 HP 10/1996 - 09/2000
1.8 (DA2A) 1834 CCM 115 HP 09/1996 - 09/1997
1.6 (DA1A) 1597 CCM 99 HP 05/1997 - 06/2006
1.8 16V GDI (DA2A) 1834 CCM 125 HP 09/1997 - 06/2006
1.8 GDI (DA2A) 1834 CCM 122 HP 10/2000 - 06/2006
1.6 (DA1A) 1597 CCM 95 HP 12/1998 - 06/2006
1.6 (DA1A) 1597 CCM 103 HP 09/2000 - 06/2006
GALANT Mk IV Saloon (E3_A)
Description Cylinder Capacity Horse Power Year
2.0 GTi 16V (E39A, E38A, E33A) 1997 CCM 144 HP 11/1987 - 10/1992
2.0 GTi 16V 4WD (E39A, E38A, E33A) 1997 CCM 144 HP 06/1988 - 10/1992
1.8 Turbo-D (E34A) 1795 CCM 75 HP 12/1987 - 10/1992
1.8 (E32A) 1755 CCM 90 HP 11/1987 - 10/1992
2.0 4WD (E39A, E38A, E33A) 1997 CCM 109 HP 12/1988 - 10/1992
2.0 (E39A, E38A, E33A) 1997 CCM 109 HP 11/1987 - 10/1992
2.0 GTI 16V Cat 4WD (E38A, E39A, E33A) 1997 CCM 150 HP 09/1991 - 10/1992
2.0 GTi 16V (E39A, E38A, E33A) 1997 CCM 145 HP 11/1988 - 10/1992
GALANT Mk IV (E3_A)
Description Cylinder Capacity Horse Power Year
1.8 Turbo-D (E34A) 1795 CCM 75 HP 11/1988 - 10/1992
1.8 (E32A) 1755 CCM 90 HP 11/1988 - 10/1992
2.0 4WD (E33A, E38A, E39A) 1997 CCM 109 HP 04/1989 - 10/1992
2.0 GTI 16V (E39A, E38A, E33A) 1997 CCM 144 HP 11/1988 - 10/1992
2.0 (E39A, E38A, E33A) 1997 CCM 109 HP 04/1989 - 10/1992
2.0 GTI 16V (E39A, E38A, E33A) 1997 CCM 146 HP 11/1988 - 10/1992
2.0 GTI 16V 4x4 (E38A, E39A, E33A) 1997 CCM 144 HP 07/1989 - 12/1992
GALANT Mk V Saloon (E5_A, E7_A, E8_A)
Description Cylinder Capacity Horse Power Year
2.0 GLSTD (E57A) 1998 CCM 90 HP 11/1992 - 08/1996
1.8 GLSI (E52A) 1834 CCM 126 HP 11/1992 - 08/1996
2.0 GLSI (E55A) 1997 CCM 137 HP 11/1992 - 08/1996
2.0 GLSI 4WD (E75A) 1997 CCM 137 HP 11/1992 - 08/1996
2.0 V6-24 (E64A, E54A) 1999 CCM 150 HP 11/1992 - 08/1996
1.8 (E52A) 1834 CCM 116 HP 02/1994 - 08/1996
2.0 1997 CCM 136 HP 11/1992 - 08/1996
1.8 (E53A) 1829 CCM 135 HP 06/1992 - 12/1996
GALANT Mk V (E5_A, E7_A, E8_A)
Description Cylinder Capacity Horse Power Year
2.0 GLSTD (E57A) 1998 CCM 90 HP 11/1992 - 08/1996
1.8 GLSI (E52A) 1834 CCM 126 HP 11/1992 - 08/1996
2.0 GLSI (E55A) 1997 CCM 137 HP 11/1992 - 08/1996
2.0 GLSI 4WD (E75A) 1997 CCM 137 HP 11/1992 - 08/1996
2.0 V6-24 (E64A, E54A) 1999 CCM 150 HP 11/1992 - 08/1996
1.8 (E52A) 1834 CCM 116 HP 02/1994 - 08/1996
GALANT / ASPIRE Mk VI (EA_)
Description Cylinder Capacity Horse Power Year
2.0 (EA2A) 1997 CCM 136 HP 09/1996 - 09/2000
2.5 V6 24V (EA5A) 2498 CCM 163 HP 09/1996 - 09/2000
2.0 TDI (EA6A) 1998 CCM 90 HP 09/1996 - 10/2004
2.4 GDI (EA3A) 2351 CCM 150 HP 02/1999 - 09/2000
GALANT Mk VI Estate (EA_, EC_)
Description Cylinder Capacity Horse Power Year
2.0 (EA2W) 1997 CCM 136 HP 09/1996 - 09/2000
2.5 V6 24V (EA5W) 2498 CCM 163 HP 09/1996 - 09/2000
2.0 TDI (EA6W) 1998 CCM 90 HP 09/1996 - 10/2003
2.4 GDI (EA3W) 2351 CCM 150 HP 02/1999 - 10/2003
LANCER Mk V (CB_A, CD_A, CE_A)
Description Cylinder Capacity Horse Power Year
1.8 i Turbo AWD (CD5A) 1834 CCM 192 HP 11/1992 - 07/1996
LANCER Mk V Station Wagon (CB_W, CD_W)
Description Cylinder Capacity Horse Power Year
1.6 16V 4WD (CD4W) 1597 CCM 113 HP 12/1992 - 10/2003
RVR MPV (N1_W, N2_W)
Description Cylinder Capacity Horse Power Year
1.8 (N11W) 1834 CCM 122 HP 10/1991 - 08/1999
1.8 4WD (N21W) 1834 CCM 122 HP 10/1991 - 08/1999
2.0 TD (N18W) 1998 CCM 82 HP 10/1992 - 08/1999
1.8 (N11W) 1834 CCM 116 HP 06/1996 - 08/1999
1.8 4WD (N21W) 1834 CCM 116 HP 06/1996 - 08/1999
2.0 (N13W) 1997 CCM 160 HP 10/1992 - 10/1997
1.8 (N11W) 1834 CCM 120 HP 10/1992 - 04/1996
2.0 4WD (N23W) 1997 CCM 160 HP 10/1992 - 12/2000
SANTAMO (UG)
Description Cylinder Capacity Horse Power Year
2.0 16V 1997 CCM 139 HP 05/1999 - 12/2004
2.0 16V 4WD 1997 CCM 139 HP 05/1999 - 12/2004
SAPPORO Mk III (E16A)
Description Cylinder Capacity Horse Power Year
2.4 (E16A) 2351 CCM 124 HP 06/1987 - 08/1990
SPACE WAGON (N3_W, N4_W)
Description Cylinder Capacity Horse Power Year
1.8 TD (N35W) 1795 CCM 75 HP 10/1991 - 10/1998
2.0 TD (N38W) 1998 CCM 82 HP 10/1992 - 10/1998
1.8 (N31W) 1834 CCM 122 HP 10/1991 - 10/1998
1.8 4WD (N41W) 1834 CCM 122 HP 10/1991 - 10/1998
2.0 (N33W) 1997 CCM 133 HP 10/1992 - 10/1998
2.0 4WD (N43W) 1997 CCM 133 HP 10/1992 - 10/1998
2.4 (N34W) 2351 CCM 120 HP 10/1991 - 10/1997
2.0 TD 4WD (N38W) 1998 CCM 82 HP 01/1992 - 12/1997
SPACE STAR MPV (DG_A)
Description Cylinder Capacity Horse Power Year
1.3 16V (DG1A) 1299 CCM 86 HP 06/1998 - 12/2004
1.8 GDI (DG5A) 1834 CCM 122 HP 06/1998 - 12/2004
1.3 16V (DG1A) 1299 CCM 83 HP 12/1998 - 12/2004
1.9 DI-D (DG4A) 1870 CCM 102 HP 02/2001 - 12/2004
1.8 GDI (DG5A) 1834 CCM 118 HP 06/1998 - 12/2004
1.3 16V (DG1A) 1299 CCM 82 HP 09/2000 - 12/2004
1.6 16V (DG3A) 1584 CCM 98 HP 01/2001 - 12/2004
1.9 DI-D (DG4A) 1870 CCM 115 HP 10/2002 - 12/2004
1.8 MPI (DG5A) 1834 CCM 112 HP 10/2002 - 12/2004
VOLVO
S40 I (644)
Description Cylinder Capacity Horse Power Year
1.8 1731 CCM 115 HP 07/1995 - 08/1999
1.9 TD 1870 CCM 90 HP 07/1995 - 08/1999
2.0 1948 CCM 140 HP 07/1995 - 08/1999
1.6 1587 CCM 105 HP 09/1995 - 08/1999
1.9 T4 1855 CCM 200 HP 05/1997 - 07/2000
V40 Estate (645)
Description Cylinder Capacity Horse Power Year
1.8 1731 CCM 115 HP 07/1995 - 08/1999
1.9 TD 1870 CCM 90 HP 07/1995 - 08/1999
2.0 1948 CCM 140 HP 07/1995 - 08/1999
1.6 1587 CCM 105 HP 12/1995 - 08/1999
1.9 T4 1855 CCM 200 HP 05/1997 - 07/2000
HYUNDAI
SANTAMO
Description Cylinder Capacity Horse Power Year
2.0 16V 1997 CCM 139 HP 05/1999 - 12/2002
2.0 16V 4x4 1997 CCM 139 HP 05/1999 - 12/2002
KIA
JOICE (MTE1P)
Description Cylinder Capacity Horse Power Year
2.0 1997 CCM 139 HP 02/2000 - 09/2003
2.0 1997 CCM 120 HP 09/2001 - 09/2003
PROTON
IMPIAN
Description Cylinder Capacity Horse Power Year
1.6 (CF1S) 1584 CCM 102 HP 09/2001 - 06/2007

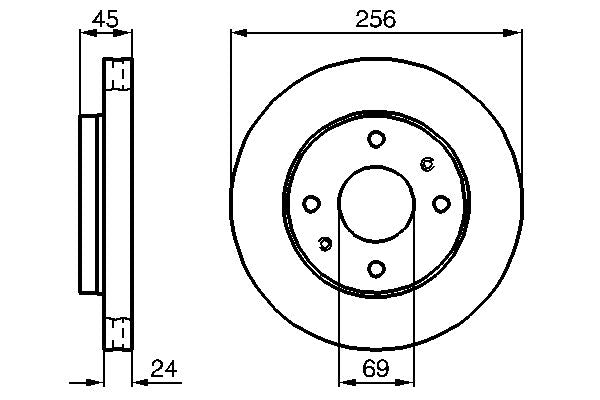

The Bosch 0986478531 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 256 mm outer diameter, 24 mm brake disc thickness, 22.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 256
Brake Disc Thickness [mm] : 24
Minimum thickness [mm] : 22.4
Height [mm] : 45.3
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 69.02
Number of Holes : 4
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.5
  • Vendor BOSCH
  • SKU 0986478531
  • Barcode 3165141981445
  • MITSUBISHI : MB407639 MB668107 MB668886 MB928994 MB928995 MB950569 MB950570 MB995994 MR205584 MR205585 MR289653 MR389722 MR475330 MR955637
  • VOLVO : 30872926
  • KIA : 51712 M2000 51712 M2010
  • PROTON : PW820577
  • APEC : DSK662
  • BLUE PRINT : ADC44321
  • BLUE PRINT : ADC44350
  • BORG & BECK : BBD4159
  • BORG & BECK : BBD5007
  • BREMBO : 09.5640.14
  • BREMBO : 09.5640.75
  • BREMBO : 09.7043.10
  • BREMBO : 09.7043.11
  • BREMBO : 09.7043.20
  • BREMBO : 09.9617.10
  • BREMBO : 09.9617.11
  • DELPHI : BG2763
  • FEBI BILSTEIN : 10892
  • FEBI BILSTEIN : 14924
  • FTE : 9072200
  • HELLA : 8DD 355 107-321
  • MEYLE : 515 521 5015
  • MINTEX : MDC977
  • National : NBD459
  • SKF : VKBD 80894 V2
  • TEXTAR : 92103903
  • TRW : DF4032
  • TRW : DF4081
  • VALEO : 186648
  • BOSCH : BD454
