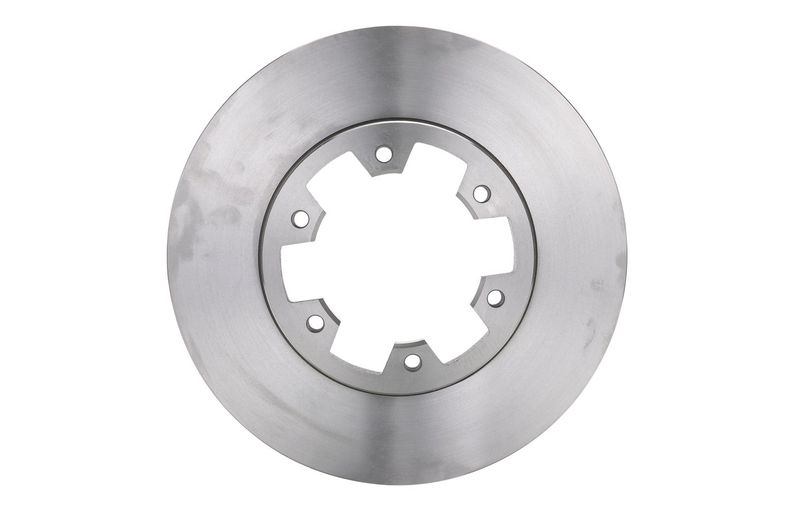

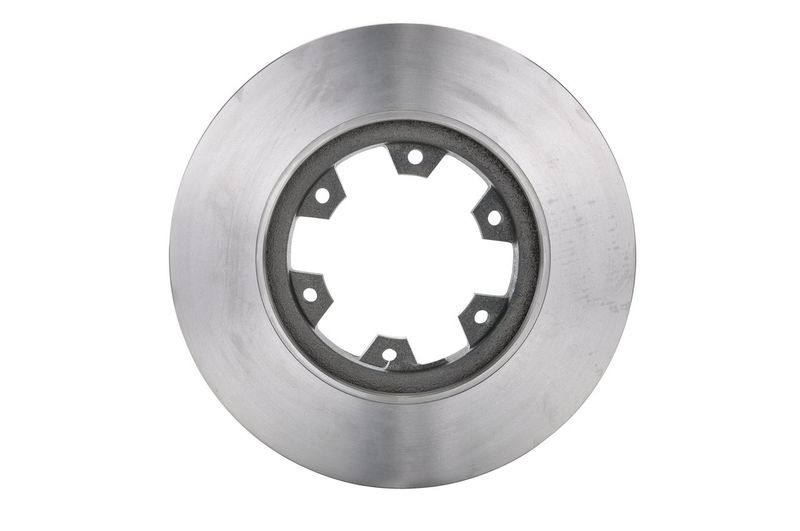

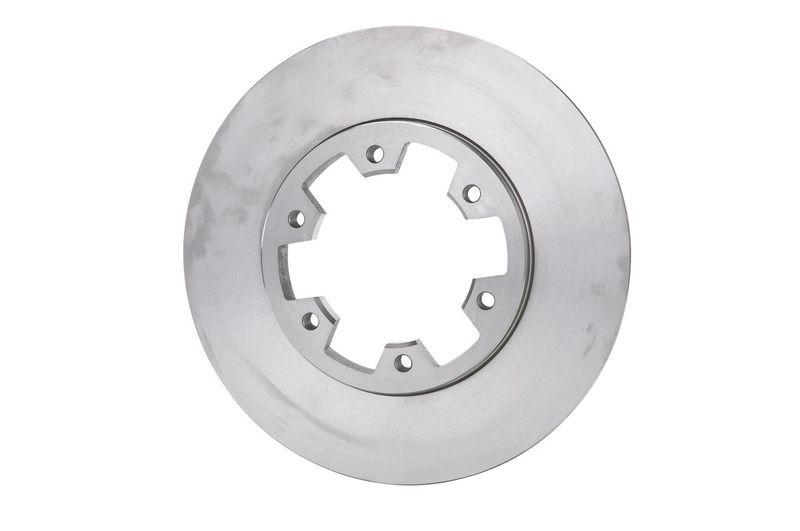

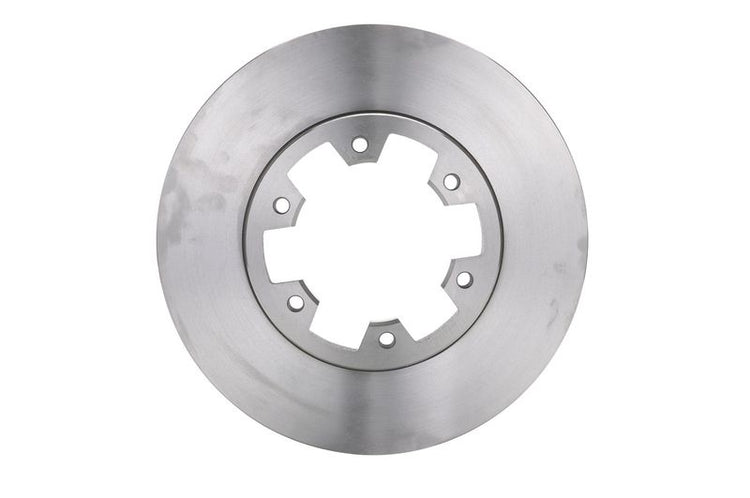

Bosch 0986478532 Brake Disc

SKU: 0986478532
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£75.78 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
MAVERICK (UDS, UNS)
Description Cylinder Capacity Horse Power Year
2.4 i 2389 CCM 124 HP 02/1993 - 08/1996
2.7 TD 2663 CCM 100 HP 02/1993 - 08/1996
2.4 i (UDS) 2389 CCM 116 HP 09/1996 - 04/1998
2.4 i 2389 CCM 118 HP 09/1996 - 04/1998
2.7 TD 2664 CCM 125 HP 09/1996 - 04/1998
MAVERICK VAN
Description Cylinder Capacity Horse Power Year
2.7 TD 2664 CCM 125 HP 06/1996 - 04/1998
2.7 TD 2663 CCM 100 HP 06/1996 - 04/1998
NISSAN
NAVARA (D22)
Description Cylinder Capacity Horse Power Year
2.5 TDiC 4x4 2494 CCM 103 HP 05/1998 - 10/2001
PATHFINDER I (WD21)
Description Cylinder Capacity Horse Power Year
3.0 4WD 2960 CCM 148 HP 07/1986 - 10/1995
PICK UP (D21)
Description Cylinder Capacity Horse Power Year
2.4 i 12V 4WD 2389 CCM 126 HP 04/1992 - 02/1998
PICK UP (D22)
Description Cylinder Capacity Horse Power Year
2.4 i 4WD 2389 CCM 120 HP 02/1998 - 11/2001
2.5 D 2494 CCM 83 HP 02/1998 - 10/2002
2.5 TD 4WD 2494 CCM 103 HP 05/1998 - 11/2001
2.4 i 2389 CCM 120 HP 02/1998 - 04/2005
2.5 D 4WD 2494 CCM 83 HP 02/1998 - 04/2005
3.2 D 4WD 3153 CCM 103 HP 02/1997 - 04/2005
TERRANO   (WD21)
Description Cylinder Capacity Horse Power Year
2.4 i 4WD 2389 CCM 103 HP 10/1987 - 02/1993
2.7 TD 4WD (LBYD21) 2664 CCM 99 HP 02/1989 - 02/1996
3.0 i 4WD 2960 CCM 148 HP 01/1990 - 12/1995
3.0 i 4WD (WHYD21) 2960 CCM 155 HP 07/1986 - 12/1995
TERRANO II (R20)
Description Cylinder Capacity Horse Power Year
2.7 TD 4WD 2664 CCM 101 HP 02/1993 - 01/2002
2.4 i 12V 4WD 2389 CCM 124 HP 02/1993 - 12/1997
2.4 4WD 2389 CCM 116 HP 05/1996 - 01/2002
2.4 4WD 2389 CCM 118 HP 05/1996 - 09/2007
2.7 TDi 4WD 2664 CCM 125 HP 05/1996 - 09/2007
3.0 Di 4WD 2953 CCM 154 HP 05/2002 - 09/2007
TERRANO II Van (R20)
Description Cylinder Capacity Horse Power Year
2.7 TDi 4WD 2664 CCM 125 HP 06/1998 - 09/2007
3.0 Di 4WD 2953 CCM 154 HP 04/2003 - 09/2007

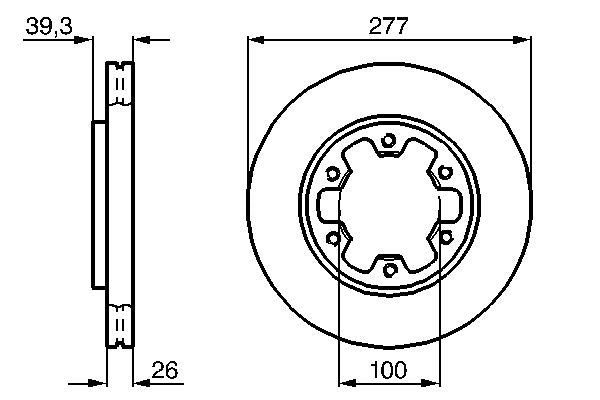

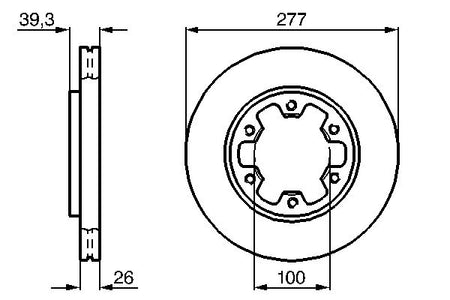

The Bosch 0986478532 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 277 mm outer diameter, 26 mm brake disc thickness, 24 mm minimum thickness, and vented and internally vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 277
Brake Disc Thickness [mm] : 26
Minimum thickness [mm] : 24
Height [mm] : 39
Bolt Hole Circle Ø [mm] : 124
Brake Disc Type : Vented
Centering Diameter [mm] : 100
Number of Holes : 6
Surface : Oiled
fulfils ECE standard : ECE-R90
Brake Disc Type : internally vented
  • Vendor BOSCH
  • SKU 0986478532
  • Barcode 3165141234862
  • FORD : 1954433
  • NISSAN : 40206 VJ200 40206 0F000 40206 0F001 40206 31G00 40206 31G01
  • APEC : DSK772
  • BLUE PRINT : ADN14368
  • BORG & BECK : BBD5046
  • BREMBO : 09.5055.10
  • DELPHI : BG3422
  • FEBI BILSTEIN : 18895
  • FTE : 9072340
  • FTE : 9082712
  • HELLA : 8DD 355 102-921
  • MEYLE : 36-15 521 0009
  • MINTEX : MDC859
  • National : NBD369
  • SKF : VKBD 80481 V2
  • TEXTAR : 92059000
  • TRW : DF1965
  • VALEO : 186484
  • VALEO : 673328
  • BOSCH : BD455
