Bosch 0986478533 Brake Disc - 1
Bosch 0986478533 Brake Disc - 1
BOSCH

Bosch 0986478533 Brake Disc

SKU: 0986478533
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£45.88 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

NISSAN
100NX (B13)
Description Cylinder Capacity Horse Power Year
1.6 1597 CCM 90 HP 03/1990 - 10/1994
1.6 SR 1597 CCM 102 HP 09/1993 - 10/1994
SUNNY Mk II Traveller (B12)
Description Cylinder Capacity Horse Power Year
1.6 i 4x4 (A) 1598 CCM 73 HP 06/1986 - 05/1989
1.6 i 12V 1597 CCM 90 HP 10/1988 - 06/1991
1.7 D 1681 CCM 54 HP 01/1986 - 06/1991
1.6 1597 CCM 84 HP 06/1986 - 10/1988
SUNNY Mk II (N13, B12)
Description Cylinder Capacity Horse Power Year
1.6 i 4x4 (A) 1597 CCM 73 HP 06/1986 - 10/1990
1.7 D 1681 CCM 54 HP 06/1986 - 05/1989
1.6 GTI 16V 1598 CCM 110 HP 02/1987 - 10/1988
SUNNY Mk II Hatchback (N13)
Description Cylinder Capacity Horse Power Year
1.6 GTI 16V 1598 CCM 110 HP 06/1987 - 05/1989
1.7 D 1681 CCM 54 HP 06/1986 - 01/1991
1.6 1597 CCM 120 HP 02/1987 - 10/1988
SUNNY Mk II Coupe (B12)
Description Cylinder Capacity Horse Power Year
1.6 GTI 16V 1598 CCM 110 HP 05/1987 - 05/1989
SUNNY III (N14, B13)
Description Cylinder Capacity Horse Power Year
2.0 D 1974 CCM 75 HP 10/1990 - 05/1995
1.4 i 1392 CCM 75 HP 10/1990 - 05/1995
1.6 i (B13) 1597 CCM 90 HP 10/1990 - 05/1995
1.6 i 16V 1597 CCM 102 HP 10/1992 - 05/1995
1.6 i 16V 4WD 1597 CCM 90 HP 10/1990 - 05/1995
1.4 i 16V 1392 CCM 87 HP 10/1990 - 06/1995
1.4 1392 CCM 82 HP 10/1990 - 06/1995
1.6 i 16V 4WD 1597 CCM 102 HP 10/1992 - 06/1995
SUNNY Mk III Hatchback (N14)
Description Cylinder Capacity Horse Power Year
1.4 i 1392 CCM 75 HP 10/1990 - 05/1995
2.0 D 1974 CCM 75 HP 10/1990 - 05/1995
1.6 i 1597 CCM 90 HP 10/1990 - 05/1995
1.6 i 16V 1597 CCM 102 HP 10/1992 - 05/1995
1.4 i 16V 1392 CCM 87 HP 10/1990 - 05/1995
1.6 i 16V 4x4 1597 CCM 102 HP 10/1992 - 05/1995
1.4 1392 CCM 82 HP 10/1990 - 06/1995
SUNNY III Liftback (N14)
Description Cylinder Capacity Horse Power Year
2.0 D 1974 CCM 75 HP 10/1990 - 05/1995
1.4 i 1392 CCM 75 HP 10/1990 - 05/1995
1.6 i 1597 CCM 90 HP 10/1990 - 05/1995
1.6 i 16V 1597 CCM 102 HP 10/1992 - 05/1995
1.4 i 16V 1392 CCM 87 HP 10/1990 - 06/1995
SUNNY Mk III Traveller (Y10)
Description Cylinder Capacity Horse Power Year
1.6 i 1597 CCM 90 HP 06/1991 - 03/2000
1.6 i 16V 4x4 1597 CCM 102 HP 10/1992 - 03/2000
2.0 D 1974 CCM 75 HP 06/1991 - 03/2000
1.6 1597 CCM 105 HP 09/1992 - 03/2000
1.6 1597 CCM 102 HP 07/1995 - 03/2000
SUNNY III Estate Van (Y10)
Description Cylinder Capacity Horse Power Year
1.7 D 1681 CCM 54 HP 11/1990 - 03/2000
1.6 i 16V 1597 CCM 90 HP 10/1992 - 03/2000

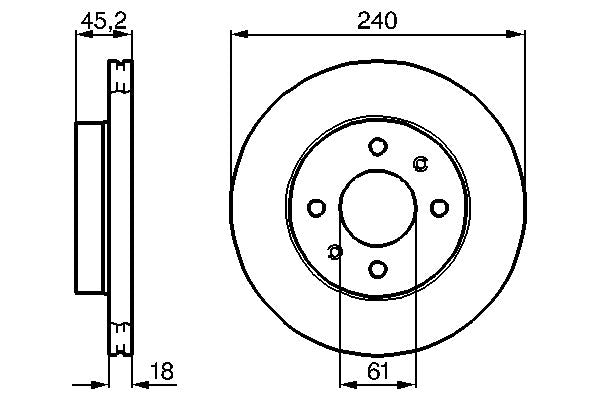

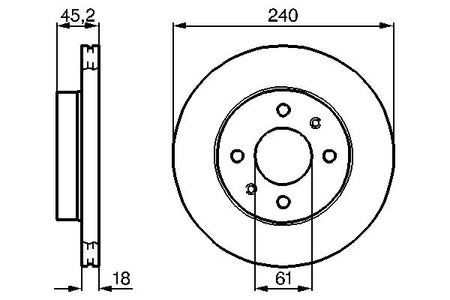

The Bosch 0986478533 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 240 mm outer diameter, 18 mm brake disc thickness, 16 mm minimum thickness, and vented and internally vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 240
Brake Disc Thickness [mm] : 18
Minimum thickness [mm] : 16
Height [mm] : 45.4
Bolt Hole Circle Ø [mm] : 100
Brake Disc Type : Vented
Centering Diameter [mm] : 61.1
Number of Holes : 4
Surface : Oiled
Bore Diameter up to [mm] : 13
Brake Disc Type : internally vented
  • Vendor BOSCH
  • SKU 0986478533
  • Barcode 3165141234794
  • NISSAN : 40206 58A00 40206 58A01 40206 60Y00 40206 60Y01
  • APEC : DSK143
  • BLUE PRINT : ADN14328
  • BORG & BECK : BBD5014
  • BREMBO : 09.5253.10
  • DELPHI : BG2565
  • FEBI BILSTEIN : 10627
  • HELLA : 8DD 355 103-331
  • MEYLE : 36-15 521 0011
  • MINTEX : MDC685
  • National : NBD141
  • TEXTAR : 92063200
  • TRW : DF2576
  • VALEO : 186482
  • BOSCH : BD456
