BOSCH

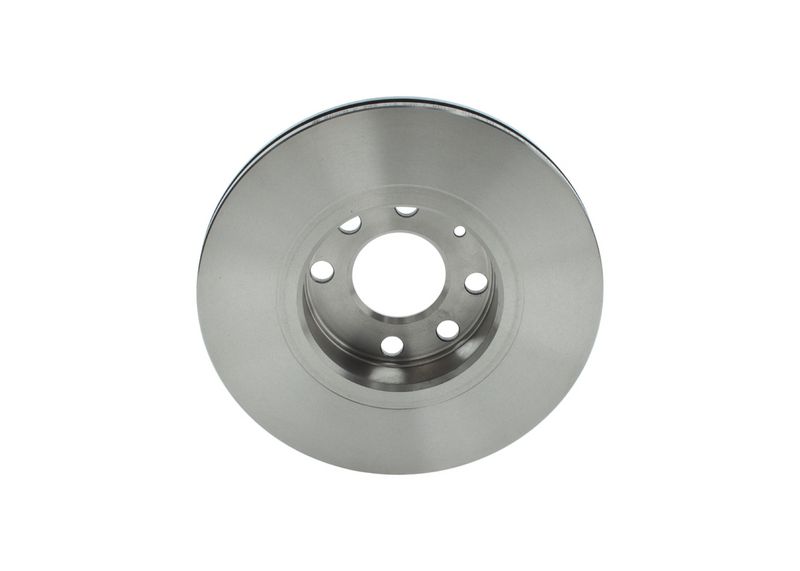

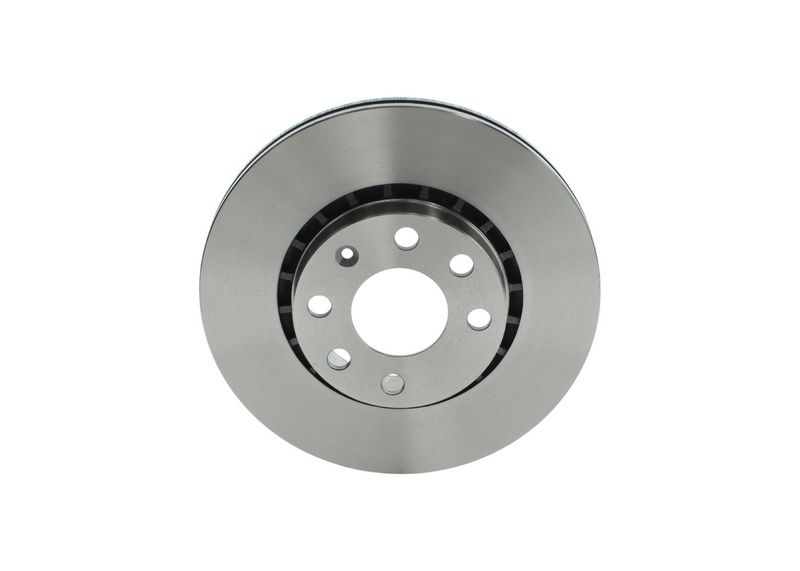

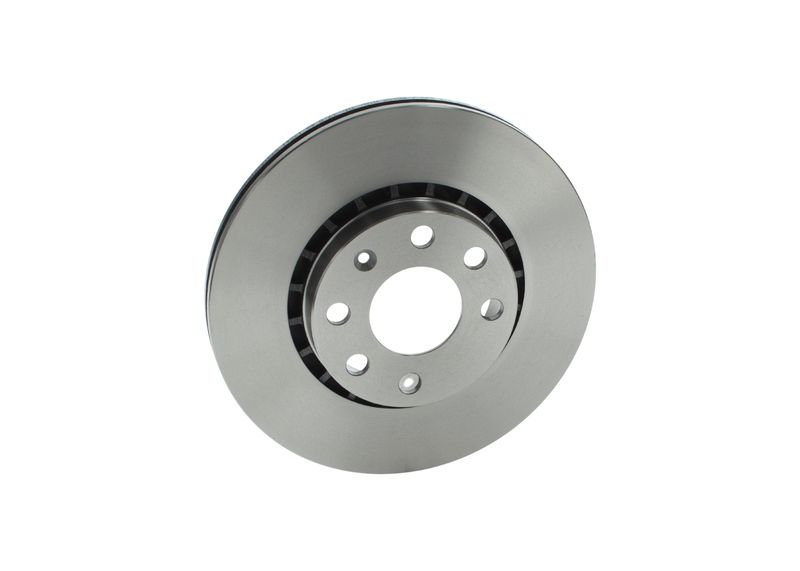

Bosch 0986478535 Brake Disc

SKU: 0986478535

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£44.92 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

OPEL

CORSA B (S93)

Description	Cylinder Capacity	Horse Power	Year
1.6 GSI 16V (F08, F68, M68)	1598 CCM	109 HP	03/1993 - 09/2000
1.6 i 16V (F08, F68, M68)	1598 CCM	106 HP	09/1994 - 09/2000

TIGRA (S93)

Description	Cylinder Capacity	Horse Power	Year
1.4 16V (F07)	1389 CCM	90 HP	07/1994 - 12/2000
1.6 16V (F07)	1598 CCM	106 HP	07/1994 - 08/1998
1.4 16V (F07)	1389 CCM	86 HP	08/1997 - 12/2000

VECTRA A Hatchback (J89)

Description	Cylinder Capacity	Horse Power	Year
1.6 i Cat (F68, M68)	1598 CCM	75 HP	09/1988 - 11/1995
1.8 i Cat (F68, M68)	1796 CCM	90 HP	03/1990 - 11/1995
1.8 i (F68, M68)	1796 CCM	90 HP	09/1988 - 10/1990
1.7 D (F68, M68)	1699 CCM	60 HP	07/1992 - 11/1995
1.6 i (F68, M68)	1598 CCM	75 HP	09/1993 - 11/1995

VECTRA A (J89)

Description	Cylinder Capacity	Horse Power	Year
1.8 i Cat (F19, M19)	1796 CCM	90 HP	03/1990 - 11/1995
1.7 D (F19, M19)	1699 CCM	60 HP	07/1992 - 11/1995
1.8 S (F19, M19)	1796 CCM	90 HP	09/1989 - 10/1990

VAUXHALL

CAVALIER Mk III Saloon (J89)

Description	Cylinder Capacity	Horse Power	Year
1.7 D	1699 CCM	57 HP	09/1988 - 09/1992
1.7 TD	1686 CCM	82 HP	09/1988 - 11/1995
1.8	1796 CCM	90 HP	09/1988 - 08/1995

CAVALIER Mk III Hatchback (J89)

Description	Cylinder Capacity	Horse Power	Year
1.7 D	1699 CCM	57 HP	09/1988 - 09/1992
1.7 TD	1686 CCM	82 HP	09/1988 - 11/1995
1.8	1796 CCM	90 HP	09/1988 - 10/1990
1.8 i Cat	1796 CCM	90 HP	03/1990 - 11/1995

CORSA Mk I (B) (S93)

Description	Cylinder Capacity	Horse Power	Year
1.6 i 16V	1598 CCM	106 HP	09/1994 - 09/2000
1.6 GSI 16V	1598 CCM	109 HP	03/1993 - 09/2000

TIGRA Mk I (S93)

Description	Cylinder Capacity	Horse Power	Year
1.4 16V	1389 CCM	90 HP	07/1994 - 12/2000
1.6 16V	1598 CCM	106 HP	07/1994 - 12/2000

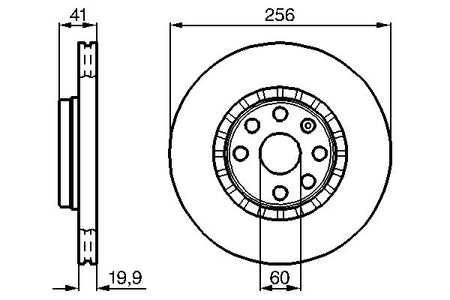

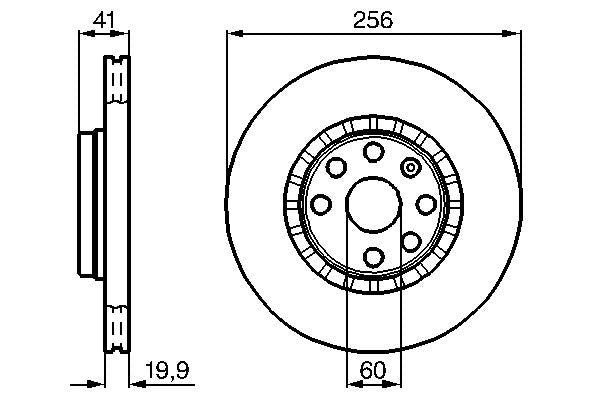

The Bosch 0986478535 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 255.9 mm outer diameter, 19.9 mm brake disc thickness, 17 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 255.9

Brake Disc Thickness [mm] : 19.9

Minimum thickness [mm] : 17

Height [mm] : 41

Bolt Hole Circle Ø [mm] : 100

Brake Disc Type : Vented

Centering Diameter [mm] : 60

Number of Holes : 6

Surface : Oiled

Supplementary Article/Supplementary Info 2 : with bolts/screws

Bore Diameter up to [mm] : 14.3

APEC : DSK532
BLUE PRINT : ADW194337
BORG & BECK : BBD4960
BREMBO : 09.5527.24
DELPHI : BG2636
HELLA : 8DD 355 127-071
MEYLE : 615 521 6005
MINTEX : MDC693
National : NBD241
TEXTAR : 92056500
TEXTAR : 92056503
TRW : DF1624
VALEO : 186282
VALEO : 673536
