BOSCH

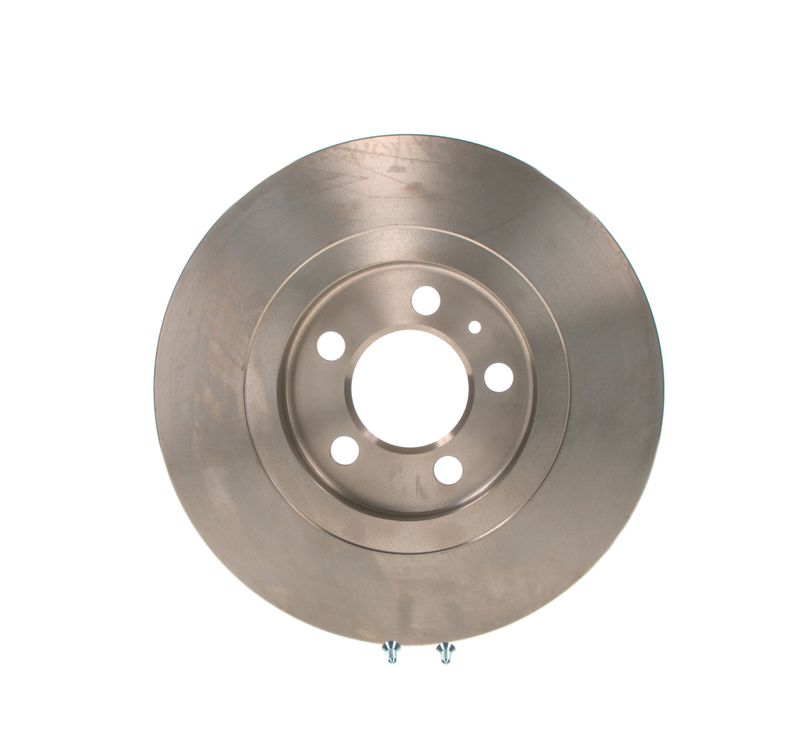

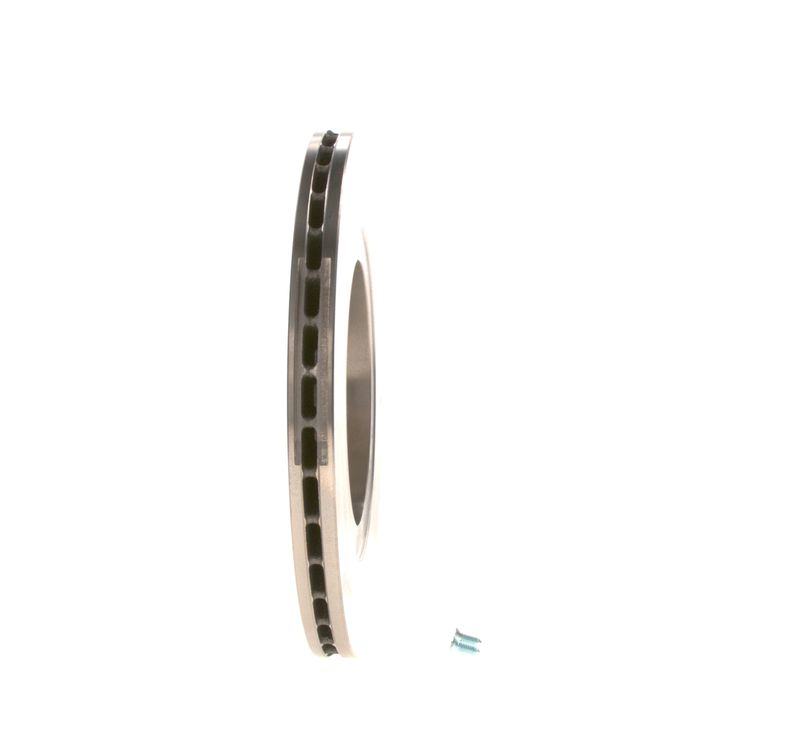

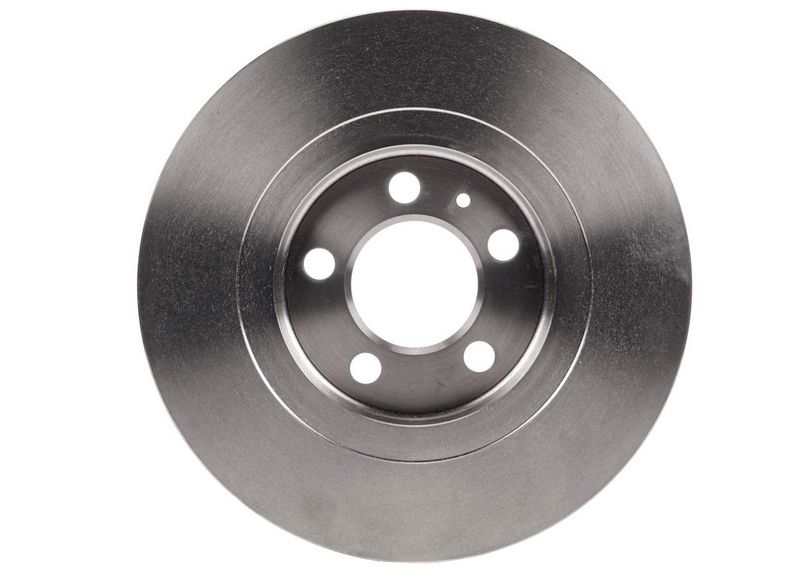

Bosch 0986478542 Brake Disc

5.0/5 78 reviews
SKU: 0986478542

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£58.82 inc. VAT

Complete the job

APEC — Aerosol Brake cleaner 600ml
£6.92

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

SEAT
TOLEDO   (1L2)
Description Cylinder Capacity Horse Power Year
1.6 i 1595 CCM 73 HP 05/1991 - 03/1999
1.8 16V 1781 CCM 133 HP 05/1991 - 03/1999
1.9 D 1896 CCM 68 HP 05/1991 - 03/1999
1.9 TD 1896 CCM 75 HP 05/1991 - 03/1999
1.6 i 1595 CCM 71 HP 05/1991 - 12/1993
1.8 i 1781 CCM 88 HP 05/1991 - 12/1996
1.8 16V 1781 CCM 125 HP 05/1991 - 03/1999
2.0 i 1984 CCM 115 HP 05/1991 - 03/1999
1.6 i 1595 CCM 75 HP 01/1993 - 03/1999
1.8 i 1781 CCM 90 HP 11/1993 - 12/1996
2.0 i 16V 1984 CCM 150 HP 11/1993 - 03/1999
1.9 TDI 1896 CCM 90 HP 08/1995 - 03/1999
1.6 i 1595 CCM 101 HP 11/1996 - 03/1999
1.9 TDI 1896 CCM 110 HP 11/1996 - 03/1999
1.9 D 1896 CCM 64 HP 12/1995 - 03/1999
VW
CORRADO (53I)
Description Cylinder Capacity Horse Power Year
1.8 G60 1781 CCM 160 HP 09/1988 - 09/1993
2.0 i 16V 1984 CCM 136 HP 08/1991 - 12/1995
2.9 VR6 2861 CCM 190 HP 08/1991 - 12/1995
2.0 i 1984 CCM 115 HP 04/1993 - 12/1995
1.8 16V 1781 CCM 136 HP 04/1989 - 07/1992
2.8 VR6 2792 CCM 174 HP 09/1991 - 12/1995
GOLF Mk III (1H1)
Description Cylinder Capacity Horse Power Year
2.0 1984 CCM 115 HP 11/1991 - 08/1997
2.0 GTI 16V 1984 CCM 150 HP 08/1992 - 12/1997
2.8 VR6 2792 CCM 174 HP 01/1992 - 08/1997
GOLF III Van (1H1)
Description Cylinder Capacity Horse Power Year
2.0 GTI 1984 CCM 150 HP 08/1991 - 09/1997
2.0 1984 CCM 116 HP 08/1995 - 09/1997
GOLF Mk III Estate (1H5)
Description Cylinder Capacity Horse Power Year
2.0 1984 CCM 115 HP 07/1993 - 04/1999
PASSAT B3/B4 Estate (3A5, 35I)
Description Cylinder Capacity Horse Power Year
2.8 VR6 2792 CCM 174 HP 06/1991 - 05/1997
VENTO (1H2)
Description Cylinder Capacity Horse Power Year
1.9 D 1896 CCM 65 HP 11/1991 - 09/1998
1.9 TD 1896 CCM 75 HP 11/1991 - 09/1998
1.9 TDI 1896 CCM 90 HP 09/1993 - 09/1998
1.4 1390 CCM 55 HP 11/1991 - 09/1998
1.4 1390 CCM 60 HP 11/1991 - 09/1998
1.6 1598 CCM 75 HP 09/1992 - 09/1998
1.8 1781 CCM 75 HP 11/1991 - 09/1998
1.8 1781 CCM 90 HP 11/1991 - 09/1998
2.0 1984 CCM 115 HP 11/1991 - 09/1998
2.8 VR6 2792 CCM 174 HP 01/1992 - 09/1998
1.6 1595 CCM 101 HP 10/1994 - 09/1998
1.9 TDI 1896 CCM 110 HP 04/1996 - 09/1998
1.9 SDI 1896 CCM 64 HP 04/1997 - 09/1998
2.0 GL 1984 CCM 107 HP 05/1996 - 12/1997
2.8 VR6 2792 CCM 163 HP 08/1995 - 04/1996

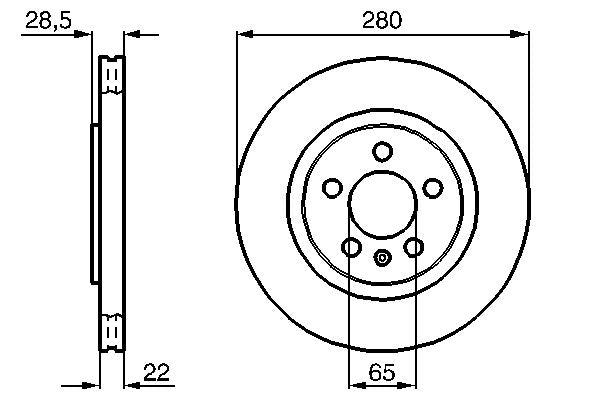

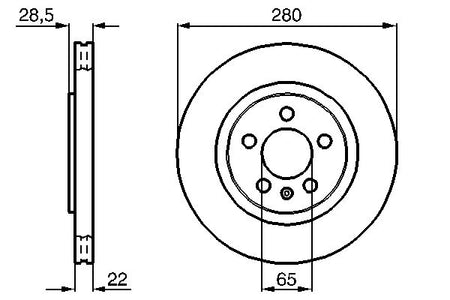

The Bosch 0986478542 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 280 mm outer diameter, 22 mm brake disc thickness, 20 mm minimum thickness, and vented and internally vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 280
Brake Disc Thickness [mm] : 22
Minimum thickness [mm] : 20
Height [mm] : 28.2
Bolt Hole Circle Ø [mm] : 100
Brake Disc Type : Vented
Centering Diameter [mm] : 65
Number of Holes : 5
Surface : Oiled
Machining : High-carbon
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.6
Brake Disc Type : internally vented
  • Vendor BOSCH
  • SKU 0986478542
  • Barcode 3165142131627
  • SEAT : 1H0 615 301 A
  • VW : 1H0 615 301 A 1H0615301
  • APEC : DSK596
  • BLUE PRINT : ADBP430005
  • BORG & BECK : BBD5040
  • BREMBO : 09.5570.10
  • BREMBO : 09.5570.75
  • DELPHI : BG2713
  • FEBI BILSTEIN : 06548
  • FTE : 9072531
  • HELLA : 8DD 355 102-741
  • MEYLE : 115 521 0030
  • MEYLE : 115 521 1007/PD
  • MINTEX : MDC800
  • National : NBD279
  • TEXTAR : 92057100
  • TRW : DF2619
  • VALEO : 186313
  • VALEO : 673611
  • BOSCH : BD465
  • BOSCH : E1 90R-02C0289/0072
