BOSCH

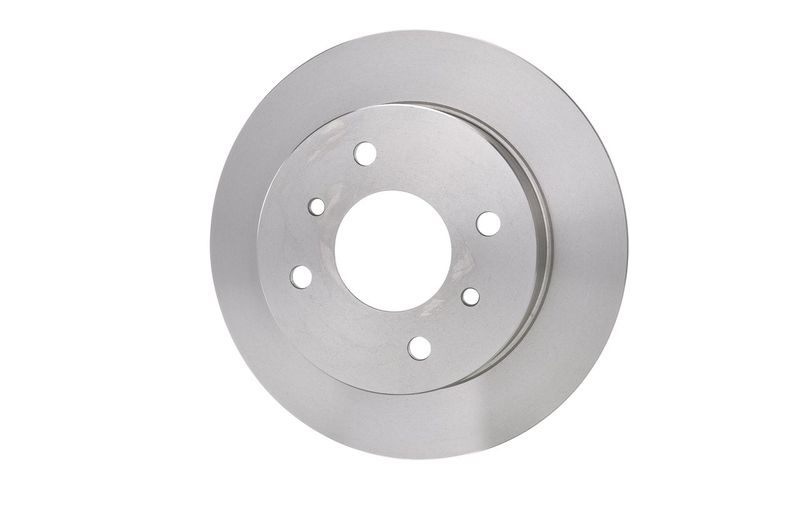

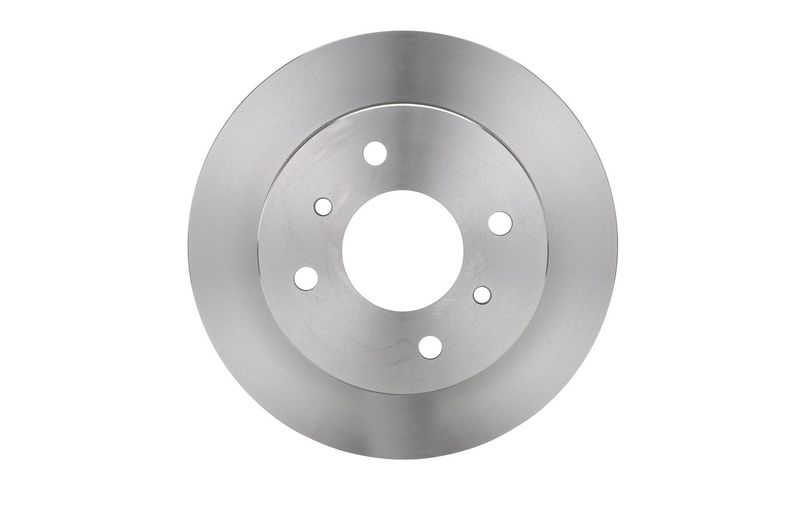

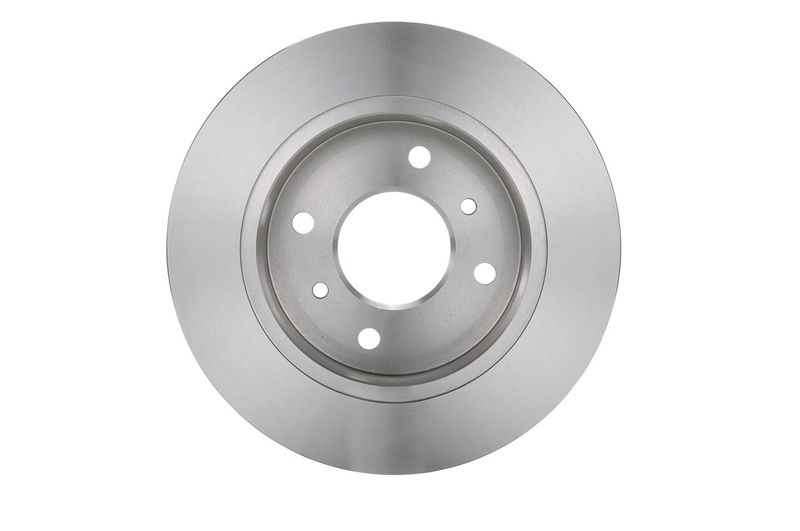

Bosch 0986478564 Brake Disc

SKU: 0986478564
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£42.18 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

NISSAN
ALMERA Mk II (N16)
Description Cylinder Capacity Horse Power Year
1.5 1498 CCM 90 HP 03/2000 - 11/2006
1.8 1769 CCM 114 HP 01/2000 - 11/2002
2.2 Di 2184 CCM 110 HP 03/2000 - 04/2003
1.5 1497 CCM 98 HP 10/2002 - 09/2006
1.8 1769 CCM 116 HP 10/2002 - 09/2006
1.5 dCi 1461 CCM 82 HP 01/2003 - 09/2006
2.2 dCi 2184 CCM 112 HP 09/2003 - 09/2006
2.2 dCi 2184 CCM 136 HP 09/2003 - 09/2006
ALMERA Mk II (N16)
Description Cylinder Capacity Horse Power Year
1.5 1498 CCM 90 HP 07/2000 - 11/2006
2.2 Di 2184 CCM 110 HP 07/2000 - 04/2003
1.8 1769 CCM 114 HP 07/2000 - 11/2002
1.5 1497 CCM 98 HP 10/2002 - 09/2006
1.8 1769 CCM 116 HP 10/2002 - 09/2006
1.5 dCi 1461 CCM 82 HP 01/2003 - 09/2006
2.2 dCi 2184 CCM 112 HP 09/2002 - 05/2007
2.2 dCi 2184 CCM 136 HP 09/2003 - 09/2006
PRIMERA (P10)
Description Cylinder Capacity Horse Power Year
2.0 16V 1998 CCM 116 HP 06/1990 - 01/1996
2.0 GT 1998 CCM 150 HP 06/1990 - 01/1996
2.0 D 1974 CCM 75 HP 01/1991 - 01/1996
2.0 i 1998 CCM 125 HP 01/1995 - 06/1996
2.0 16V 4x4 1998 CCM 116 HP 04/1991 - 06/1996
1.6 1597 CCM 102 HP 06/1993 - 01/1996
2.0 1998 CCM 131 HP 06/1990 - 05/1996
PRIMERA Hatchback (P10)
Description Cylinder Capacity Horse Power Year
2.0 16V 1998 CCM 116 HP 06/1990 - 01/1996
2.0 i 1998 CCM 125 HP 01/1995 - 06/1996
2.0 D 1974 CCM 75 HP 01/1991 - 01/1996
1.6 1597 CCM 102 HP 06/1993 - 01/1996
2.0 16V 4x4 1998 CCM 116 HP 04/1991 - 06/1996
2.0 1998 CCM 152 HP 09/1990 - 01/1996
2.0 1998 CCM 150 HP 06/1990 - 01/1996
PRIMERA (P11)
Description Cylinder Capacity Horse Power Year
1.6 16V 1597 CCM 99 HP 09/1996 - 10/2000
1.6 16V 1597 CCM 90 HP 09/1996 - 12/2001
2.0 16V 1998 CCM 131 HP 09/1996 - 12/2001
2.0 16V 1998 CCM 115 HP 09/1996 - 12/2001
2.0 16V 1998 CCM 150 HP 09/1996 - 12/2001
2.0 TD 1974 CCM 90 HP 09/1996 - 12/2001
1.8 16V 1769 CCM 114 HP 08/1999 - 12/2001
2.0 16V 1998 CCM 140 HP 08/1999 - 12/2001
1.6 16V 1597 CCM 106 HP 06/1996 - 12/2001
2.0 16V 1998 CCM 143 HP 06/1996 - 12/2001
PRIMERA Traveller (WP11)
Description Cylinder Capacity Horse Power Year
2.0 TD 1974 CCM 90 HP 04/1998 - 12/2001
1.8 16V 1769 CCM 114 HP 08/1999 - 12/2001
2.0 16V 1998 CCM 140 HP 08/1999 - 12/2001
1.8 16V LPG 1769 CCM 114 HP 08/1999 - 12/2001
PRIMERA Hatchback (P11)
Description Cylinder Capacity Horse Power Year
1.6 16V 1597 CCM 99 HP 09/1996 - 07/2002
1.6 16V 1597 CCM 90 HP 09/1996 - 07/2002
2.0 16V 1998 CCM 131 HP 09/1996 - 07/2002
2.0 16V 1998 CCM 115 HP 09/1996 - 07/2002
2.0 16V 1998 CCM 150 HP 09/1996 - 07/2002
2.0 TD 1974 CCM 90 HP 09/1996 - 07/2002
1.8 16V 1769 CCM 114 HP 08/1999 - 07/2002
2.0 16V 1998 CCM 140 HP 08/1999 - 07/2002
1.6 16V 1597 CCM 106 HP 09/2000 - 07/2002
1.8 16V LPG 1769 CCM 114 HP 08/1999 - 07/2002
2.0 16V LPG 1998 CCM 131 HP 09/1996 - 07/2002

The Bosch 0986478564 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 257.8 mm outer diameter, 10 mm brake disc thickness, 9 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 257.8
Brake Disc Thickness [mm] : 10
Minimum thickness [mm] : 9
Height [mm] : 45
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : solid
Centering Diameter [mm] : 68
Number of Holes : 4
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.8
  • Vendor BOSCH
  • SKU 0986478564
  • Barcode 3165142302065
  • NISSAN : 43206 42R03 43206 99J01
  • APEC : DSK641
  • APEC : SDK6071
  • BLUE PRINT : ADN14361
  • BORG & BECK : BBD4957
  • BREMBO : 08.5443.10
  • BREMBO : 08.5443.11
  • DELPHI : BG2633
  • Fahren : FBD6071
  • FEBI BILSTEIN : 15895
  • FTE : 9072203
  • FTE : 9082319
  • HELLA : 8DD 355 102-661
  • MEYLE : 36-15 523 0001
  • MINTEX : MDC1006
  • MINTEX : MDC1006C
  • NAPA : NBD5883
  • National : NBD312
  • SKF : VKBD 90735 S2
  • TEXTAR : 92056400
  • TEXTAR : 92056403
  • TRW : DF2592
  • VALEO : 186487
  • VALEO : 673129
  • BOSCH : BD486
