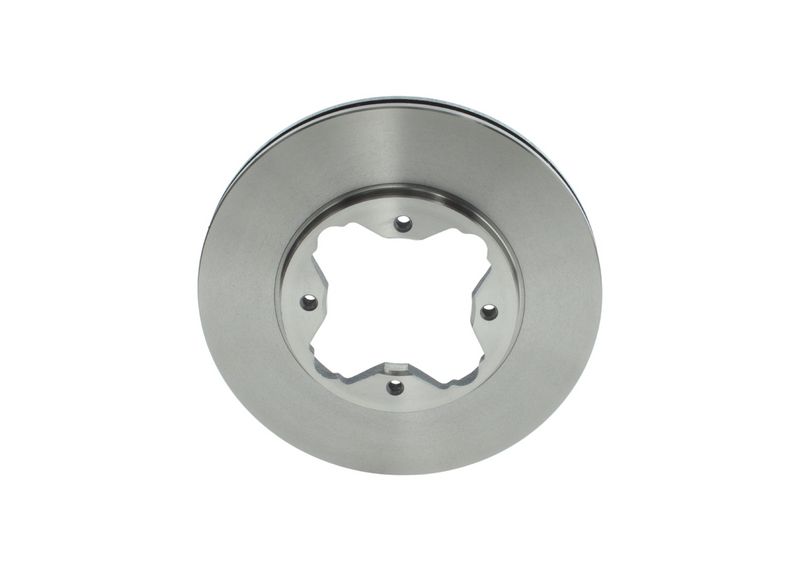

Bosch 0986478568 Brake Disc - 1
Bosch 0986478568 Brake Disc - 2

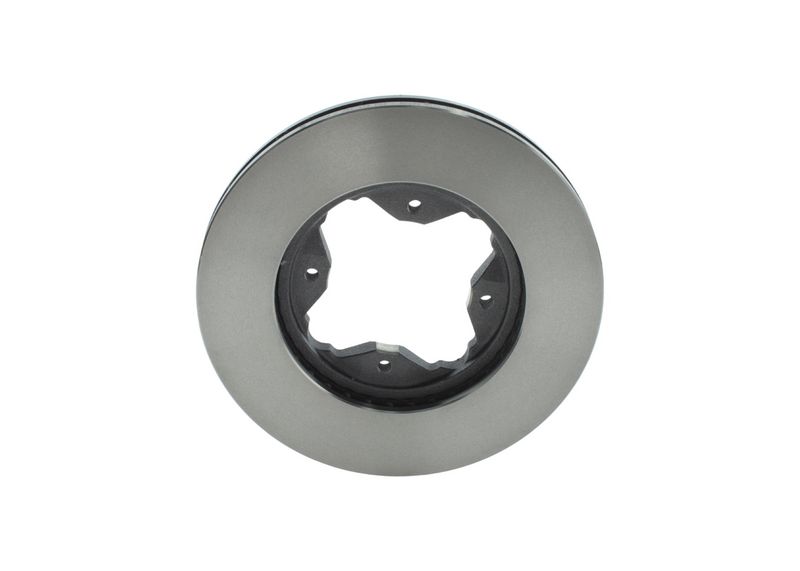

Bosch 0986478568 Brake Disc - 3
Bosch 0986478568 Brake Disc - 4
Bosch 0986478568 Brake Disc - 5

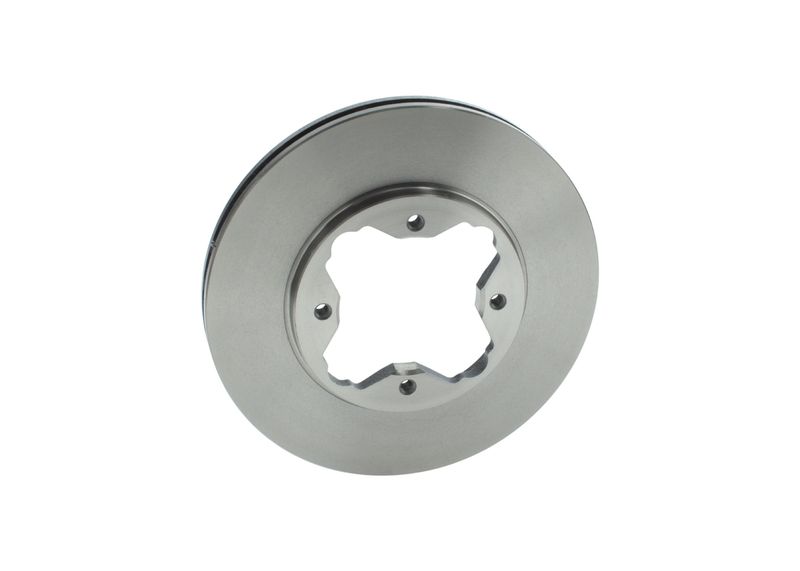

Bosch 0986478568 Brake Disc - 6
Bosch 0986478568 Brake Disc - 1
Bosch 0986478568 Brake Disc - 2
Bosch 0986478568 Brake Disc - 3
Bosch 0986478568 Brake Disc - 4
Bosch 0986478568 Brake Disc - 5
Bosch 0986478568 Brake Disc - 6
BOSCH

Bosch 0986478568 Brake Disc

SKU: 0986478568
Your selected vehicle
Out of stock
Out of Stock
£48.55 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HONDA
ACCORD Mk IV Coupe (CB, CC)
Description Cylinder Capacity Horse Power Year
2.0 i 16V (CC1) 1997 CCM 133 HP 01/1992 - 09/1993
2.0 i 1997 CCM 135 HP 09/1990 - 04/1993
ACCORD Mk IV (CB)
Description Cylinder Capacity Horse Power Year
2.0 16V (CB3) 1997 CCM 90 HP 01/1990 - 03/1993
2.0 16V (CB3) 1997 CCM 110 HP 01/1990 - 03/1993
2.0 i 16V (CB3) 1997 CCM 133 HP 01/1990 - 03/1993
2.0 i 1997 CCM 135 HP 09/1990 - 04/1993
ACCORD Mk V (CC, CD)
Description Cylinder Capacity Horse Power Year
2.0 i (CD4) 1997 CCM 116 HP 03/1993 - 01/1996
2.0 i S (CD4) 1997 CCM 131 HP 03/1993 - 01/1996
2.2 i (CD5) 2156 CCM 150 HP 04/1993 - 06/1997
ACCORD Mk V (CE, CF_, CD)
Description Cylinder Capacity Horse Power Year
1.8 i (CE7) 1850 CCM 116 HP 02/1996 - 10/1998
2.0 i LS (CE8) 1997 CCM 131 HP 02/1996 - 10/1998
2.0 TDi (CF1) 1994 CCM 105 HP 04/1996 - 10/1998
2.2 (CD5) 2156 CCM 140 HP 04/1996 - 12/1997
INSPIRE (CB5, CC2, CC3)
Description Cylinder Capacity Horse Power Year
2.0 GX (CB5) 1996 CCM 160 HP 09/1989 - 05/1995
ROVER
600 I (RH)
Description Cylinder Capacity Horse Power Year
620 i 1997 CCM 115 HP 08/1993 - 06/1996
620 Si 1997 CCM 131 HP 08/1993 - 02/1999
620 Sdi 1994 CCM 105 HP 05/1994 - 06/1999
618 i/Si 1850 CCM 115 HP 03/1996 - 02/1999

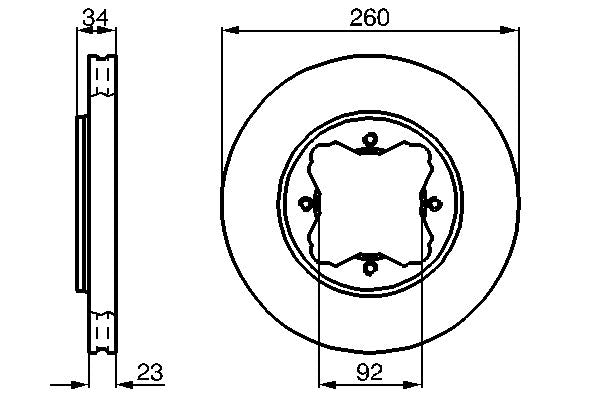

The Bosch 0986478568 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 260 mm outer diameter, 23 mm brake disc thickness, 21 mm minimum thickness, and vented and internally vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 260
Brake Disc Thickness [mm] : 23
Minimum thickness [mm] : 21
Height [mm] : 34
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 92.03
Number of Holes : 4
Surface : Oiled
fulfils ECE standard : ECE-R90
Brake Disc Type : internally vented
  • Vendor BOSCH
  • SKU 0986478568
  • Barcode 3165142954646
  • HONDA : 45251-SH4-000 45251-SM4-000 45251-SM4-010 45251-SM4-020 45251-SN7-E40
  • ROVER : GBD 90836
  • APEC : DSK602
  • BLUE PRINT : ADH24333
  • BORG & BECK : BBD4986
  • BREMBO : 09.5290.14
  • BREMBO : 09.5290.75
  • BREMBO : 09.9611.14
  • DELPHI : BG2798
  • FTE : 9072404
  • FTE : 9082473
  • MEYLE : 34-15 521 0008
  • MINTEX : MDC742
  • National : NBD352
  • SKF : VKBD 80992 V2
  • TEXTAR : 92081500
  • TRW : DF2024
  • BOSCH : BD490
