BOSCH

Bosch 0986478574 Brake Disc

SKU: 0986478574
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£71.08 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI
A8 D2 (4D2, 4D8)
Description Cylinder Capacity Horse Power Year
4.2 quattro 4172 CCM 299 HP 03/1994 - 11/1998
3.7 3697 CCM 230 HP 07/1995 - 12/1998
3.7 quattro 3697 CCM 230 HP 07/1995 - 11/1998
2.8 2771 CCM 193 HP 04/1996 - 09/2002
2.8 quattro 2771 CCM 193 HP 04/1996 - 09/2002
S8 quattro 4172 CCM 340 HP 07/1996 - 06/1999
2.5 TDI 2496 CCM 150 HP 01/1997 - 04/2000
2.5 TDI quattro 2496 CCM 150 HP 07/1997 - 04/2000
4.2 quattro 4172 CCM 310 HP 11/1998 - 09/2002
3.7 quattro 3697 CCM 260 HP 11/1998 - 09/2002

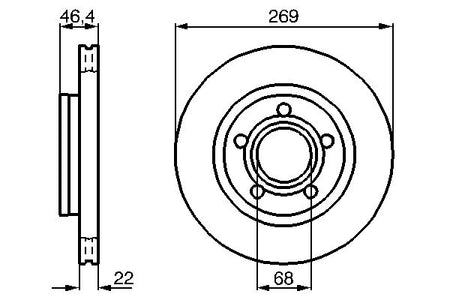

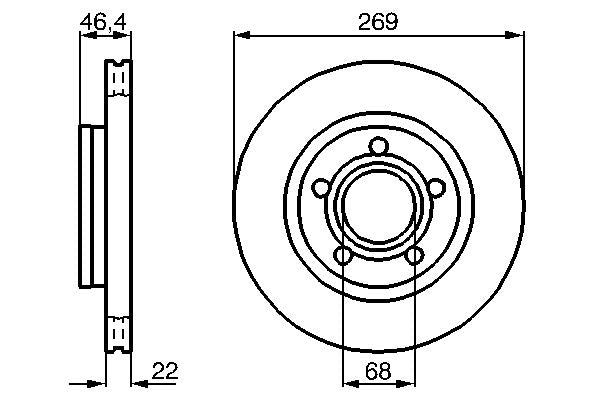

The Bosch 0986478574 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 268.8 mm outer diameter, 22 mm brake disc thickness, 20 mm minimum thickness, and vented and internally vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 268.8
Brake Disc Thickness [mm] : 22
Minimum thickness [mm] : 20
Height [mm] : 46.2
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : Vented
Centering Diameter [mm] : 68
Number of Holes : 5
Surface : Oiled
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.5
Brake Disc Type : internally vented
  • Vendor BOSCH
  • SKU 0986478574
  • Barcode 3165143277799
  • AUDI : 4D0 615 601 B
  • VW : 4D0 615 601 B
  • BORG & BECK : BBD4263
  • DELPHI : BG3525
  • FEBI BILSTEIN : 23306
  • FTE : 9072633
  • FTE : 9082490
  • HELLA : 8DD 355 127-431
  • MEYLE : 115 523 0029/PD
  • MINTEX : MDC1420
  • National : NBD1050
  • SKF : VKBD 91144 V2
  • TEXTAR : 92098400
  • TRW : DF4239
