BOSCH

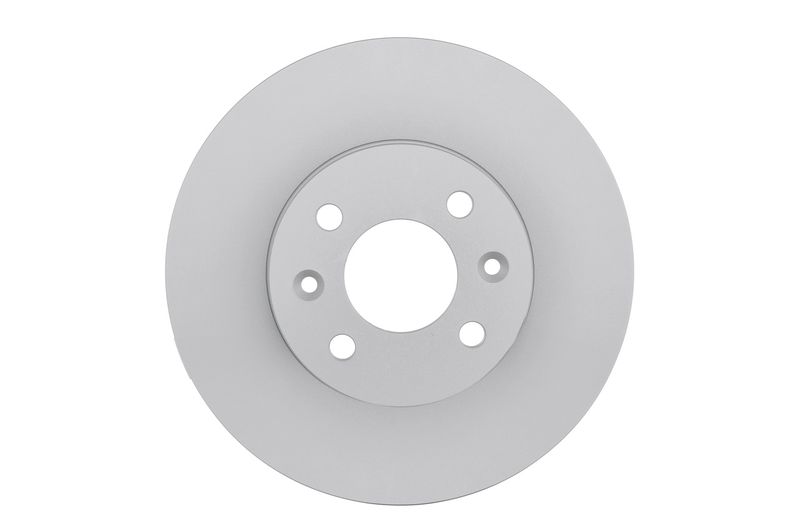

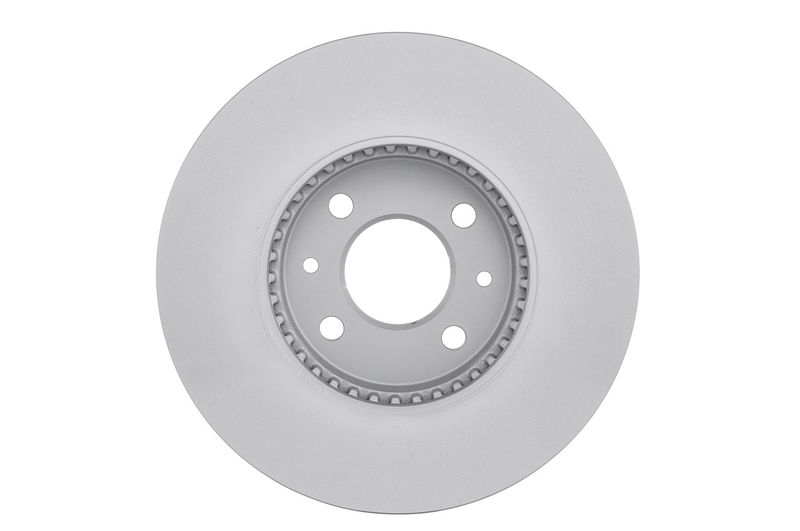

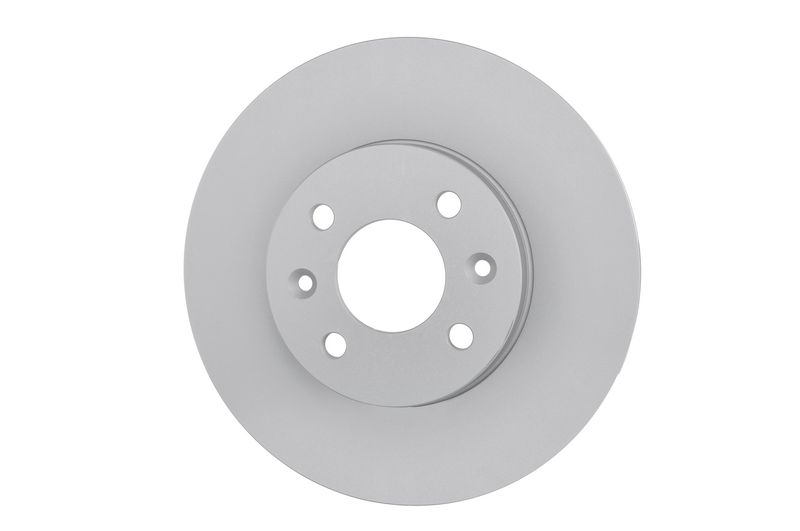

Bosch 0986478598 Brake Disc

SKU: 0986478598

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£79.82 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT

LAGUNA I (B56_, 556_)

Description	Cylinder Capacity	Horse Power	Year
1.8 (B56A/B)	1794 CCM	90 HP	11/1993 - 03/2001
2.2 D (B56F/2)	2188 CCM	83 HP	11/1993 - 03/2001
2.0 (B56C/H/N)	1998 CCM	113 HP	11/1993 - 03/2001
1.8 (B56S/T/0)	1794 CCM	90 HP	08/1995 - 03/2001
1.8 (B56Z)	1794 CCM	94 HP	08/1995 - 03/2001
2.0	1998 CCM	109 HP	03/1999 - 03/2001

LAGUNA I Estate (K56_)

Description	Cylinder Capacity	Horse Power	Year
1.8 (K56S/T/0)	1794 CCM	90 HP	09/1995 - 03/2001
1.8 (K56Z)	1794 CCM	94 HP	09/1995 - 03/2001
2.0 (K56C/H)	1998 CCM	113 HP	09/1995 - 03/2001
2.2 D (K56F/2, S56F)	2188 CCM	83 HP	09/1995 - 03/2001
2.2 dT (K569)	2188 CCM	113 HP	03/1996 - 03/2001
2.0	1998 CCM	114 HP	10/1998 - 01/2001

MEGANE I (BA0/1_)

Description	Cylinder Capacity	Horse Power	Year
2.0 16V (BA0H)	1998 CCM	147 HP	07/1996 - 08/2003

MEGANE I Coach (DA0/1_)

Description	Cylinder Capacity	Horse Power	Year
2.0 16V (DA0H)	1998 CCM	147 HP	03/1996 - 11/1999

MEGANE Scénic (JA0/1_)

Description	Cylinder Capacity	Horse Power	Year
1.6 e (JA0F)	1598 CCM	90 HP	10/1996 - 10/1999
2.0 i (JA0G)	1998 CCM	114 HP	01/1997 - 09/1999
1.9 dT (JA0K, JA0Y)	1870 CCM	90 HP	01/1997 - 09/1999
1.9 dTi (JA0N)	1870 CCM	98 HP	04/1997 - 09/1999
1.6 16V (JA0B, JA04, JA11, JA00)	1598 CCM	107 HP	04/1998 - 10/1999
2.0 RXE 4x4	1998 CCM	114 HP	05/1997 - 10/1999
1.9 dT (JA0Y)	1870 CCM	94 HP	03/1997 - 08/1999

MEGANE I Cabriolet (EA0/1_)

Description	Cylinder Capacity	Horse Power	Year
2.0 16V (EA0H)	1998 CCM	147 HP	10/1996 - 11/1999
2.0 16V	1998 CCM	150 HP	08/1997 - 11/2000

MEGANE Scénic VAN (JA0/1_)

Description	Cylinder Capacity	Horse Power	Year
1.9 DTi (JA0N)	1870 CCM	98 HP	04/1997 - 09/1999

SAFRANE (B54_)

Description	Cylinder Capacity	Horse Power	Year
2.1 dT (B546)	2068 CCM	88 HP	11/1993 - 07/1996
2.2 (B541)	2165 CCM	107 HP	04/1992 - 07/1996
2.2 (B543)	2165 CCM	137 HP	04/1992 - 07/1996
2.0 (B540)	1995 CCM	105 HP	11/1992 - 07/1996
2.0 12V (B542, B54E)	1995 CCM	132 HP	04/1992 - 07/1996

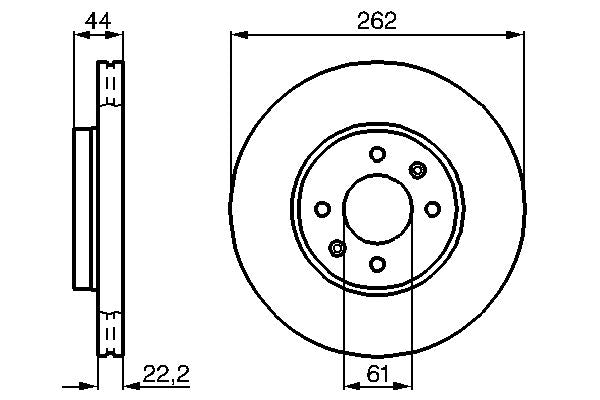

The Bosch 0986478598 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 262 mm outer diameter, 22.2 mm brake disc thickness, 19.8 mm minimum thickness, and vented and internally vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 262

Brake Disc Thickness [mm] : 22.2

Minimum thickness [mm] : 19.8

Height [mm] : 44

Bolt Hole Circle Ø [mm] : 100

Brake Disc Type : Vented

Centering Diameter [mm] : 61

Number of Holes : 4

Surface : Coated

Machining : Alloyed/High-carbon

Supplementary Article/Supplementary Info 2 : with bolts/screws

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 13.5

Brake Disc Type : internally vented

APEC : DSK608
BLUE PRINT : ADR164329
BORG & BECK : BBD5018
BREMBO : 09.7292.34
BREMBO : 09.7292.77
DELPHI : BG2693
FTE : 9072139
HELLA : 8DD 355 127-141
MEYLE : 16-15 521 0001
MINTEX : MDC777
National : NBD489
SKF : VKBD 80566 V2
TEXTAR : 92064800
TEXTAR : 92064803
TRW : DF1032
VALEO : 186304
VALEO : 673307

Bosch 0986478598 Brake Disc
