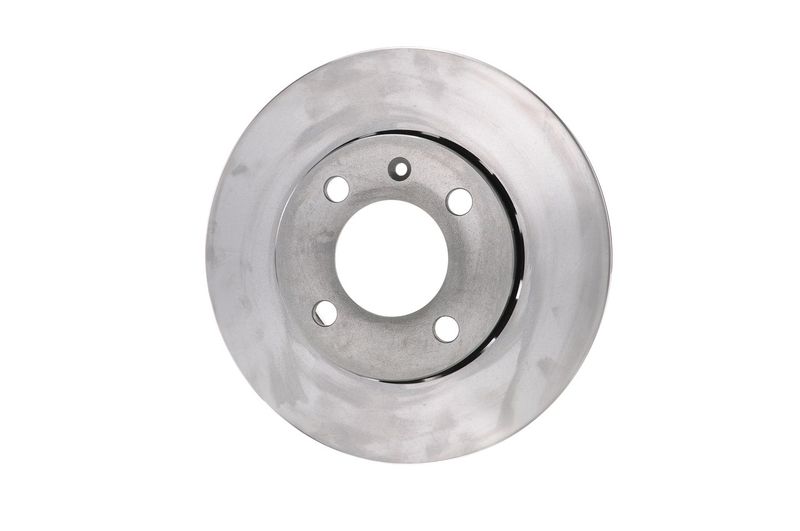

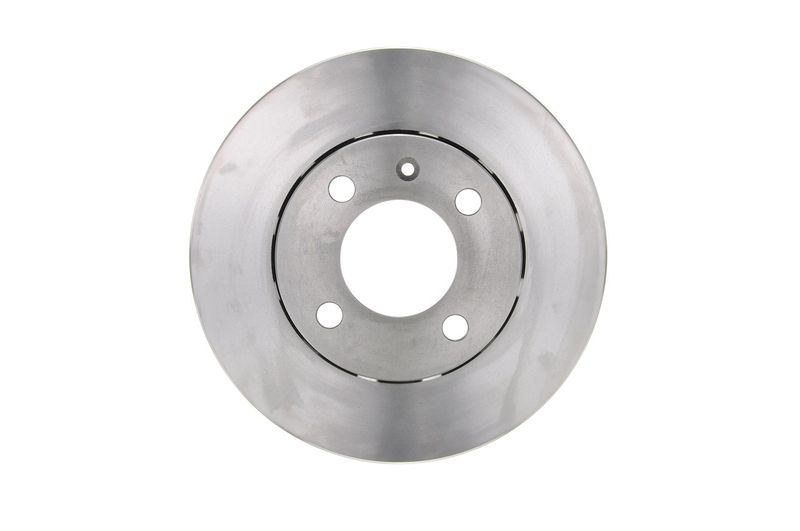

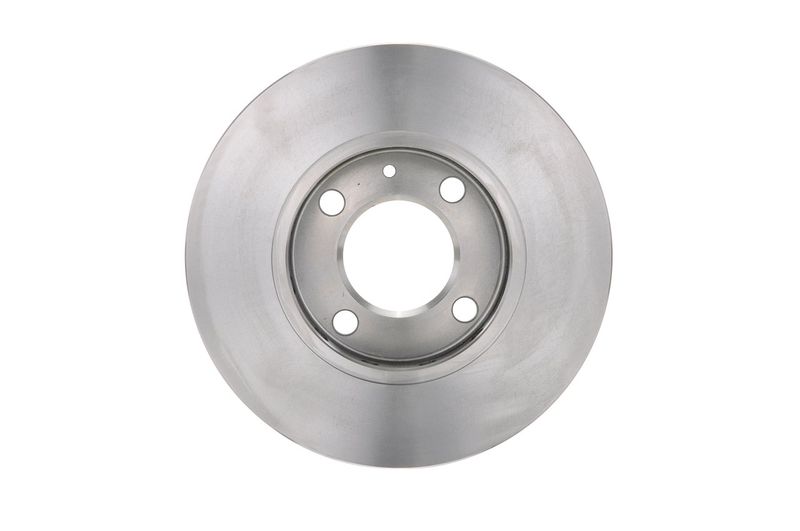

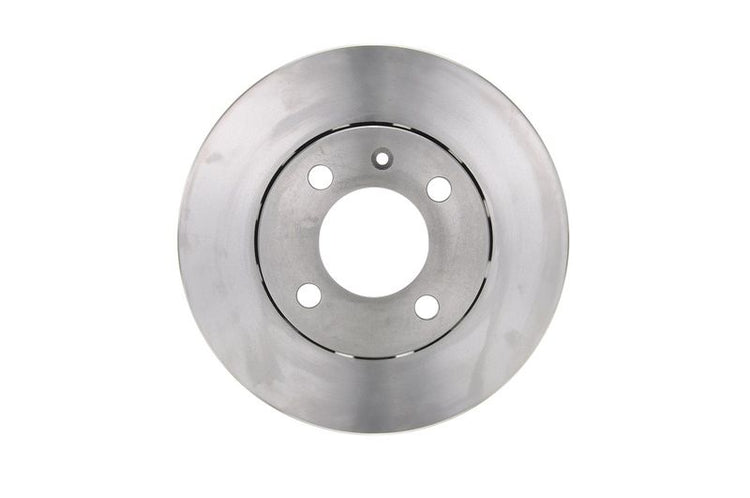

Bosch 0986478621 Brake Disc

Position: Check fitment
5.0/5 78 reviews
SKU: 0986478621

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock
Out of Stock
Regular price £40.65 inc. VAT

Complete the job

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

SEAT
AROSA (6H1)
Description Cylinder Capacity Horse Power Year
1.0 999 CCM 50 HP 05/1997 - 06/2004
1.4 1389 CCM 60 HP 05/1997 - 06/2004
1.7 SDI 1716 CCM 60 HP 08/1997 - 06/2004
1.4 16V 1390 CCM 100 HP 01/2000 - 06/2004
1.4 TDI 1422 CCM 75 HP 01/2000 - 06/2004
1.0 997 CCM 50 HP 10/1998 - 01/2001
VW
LUPO I (6X1, 6E1)
Description Cylinder Capacity Horse Power Year
1.0 999 CCM 50 HP 09/1998 - 07/2005
1.4 16V 1390 CCM 75 HP 09/1998 - 07/2005
1.7 SDI 1716 CCM 60 HP 09/1998 - 07/2005
1.4 16V 1390 CCM 100 HP 08/1999 - 07/2005
1.4 TDI 1422 CCM 75 HP 01/1999 - 07/2005
1.4 FSI 1390 CCM 105 HP 02/2001 - 07/2005
1.4 1390 CCM 60 HP 10/2000 - 07/2005
1.0 997 CCM 50 HP 10/1998 - 05/2000
POLO Hatchback Van (6N1)
Description Cylinder Capacity Horse Power Year
1.0 1043 CCM 45 HP 10/1994 - 12/1999
POLO III (6N1)
Description Cylinder Capacity Horse Power Year
55 1.3 1296 CCM 55 HP 10/1994 - 04/1997
75 1.6 1598 CCM 75 HP 10/1994 - 10/1999
45 1.0 1043 CCM 45 HP 10/1994 - 09/1996
64 1.9 D 1896 CCM 64 HP 10/1994 - 10/1999
55 1.4 1390 CCM 55 HP 08/1995 - 10/1999
60 1.4 1390 CCM 60 HP 07/1995 - 10/1999
100 1.4 16V 1390 CCM 100 HP 04/1996 - 10/1999
50 1.0 999 CCM 50 HP 09/1996 - 10/1999
60 1.7 SDI 1716 CCM 60 HP 08/1997 - 10/1999
120 1.6 16V GTI 1598 CCM 120 HP 09/1998 - 10/1999
64 1.9 SDI 1896 CCM 64 HP 07/1996 - 10/1999
1.7 SDI 1716 CCM 57 HP 04/1997 - 10/1999
POLO (6N2)
Description Cylinder Capacity Horse Power Year
1.4 16V 1390 CCM 75 HP 10/1999 - 09/2001
1.6 16V GTI 1598 CCM 125 HP 10/1999 - 09/2001
1.4 TDI 1422 CCM 75 HP 10/1999 - 09/2001
1.0 999 CCM 50 HP 10/1999 - 09/2001
1.4 16V 1390 CCM 101 HP 10/1999 - 09/2001
1.7 SDI 1716 CCM 60 HP 10/1999 - 09/2001
1.9 D 1896 CCM 64 HP 10/1999 - 09/2001
1.4 1390 CCM 60 HP 10/1999 - 09/2001
1.4 1390 CCM 54 HP 10/1999 - 09/2001
1.9 SDI 1896 CCM 64 HP 10/1999 - 09/2001

The Bosch 0986478621 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 239 mm outer diameter, 18 mm brake disc thickness, 16 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

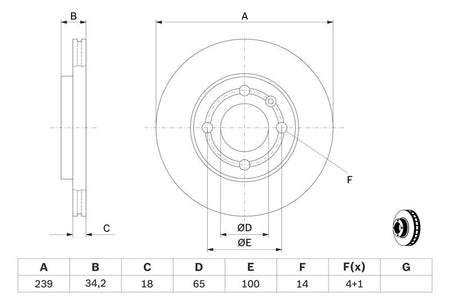

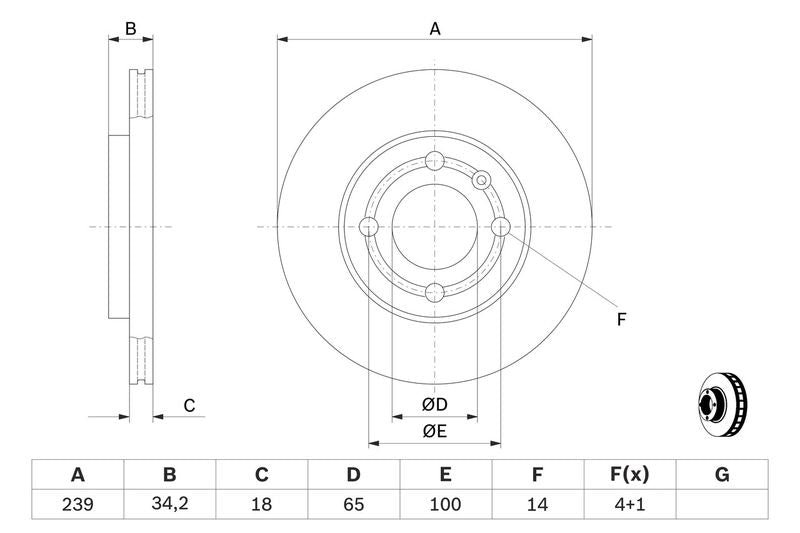

Function : Brake Disc
Outer Diameter [mm] : 239
Brake Disc Thickness [mm] : 18
Minimum thickness [mm] : 16
Height [mm] : 34.2
Bolt Hole Circle Ø [mm] : 100
Brake Disc Type : Vented
Centering Diameter [mm] : 65
Number of Holes : 4
Surface : Coated
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 14
  • Vendor BOSCH
  • SKU 0986478621
  • Barcode 4047024095397
  • SEAT : 6N0 615 301 C 6N0 615 301 F
  • VW : 6N0 615 301 C 6N0 615 301 F
  • APEC : DSK233
  • APEC : SDK6032
  • BLUE PRINT : ADV184357
  • BORG & BECK : BBD5109
  • BREMBO : 09.6799.11
  • BREMBO : 09.6799.14
  • BREMBO : 09.6799.75
  • DELPHI : BG2982
  • Fahren : FBD6032
  • FEBI BILSTEIN : 09462
  • FTE : 9072029
  • FTE : 9082413
  • HELLA : 8DD 355 104-211
  • MEYLE : 115 521 1020
  • MEYLE : 183 521 1020/PD
  • MINTEX : MDC916C
  • NAPA : NBD5519
  • National : NBD773
  • SKF : VKBD 80331 V2
  • TEXTAR : 92072003
  • TRW : DF2780
  • VALEO : 186523
  • BOSCH : BD539
  • BOSCH : E1 90 R - 02 C0765/0008
