BOSCH

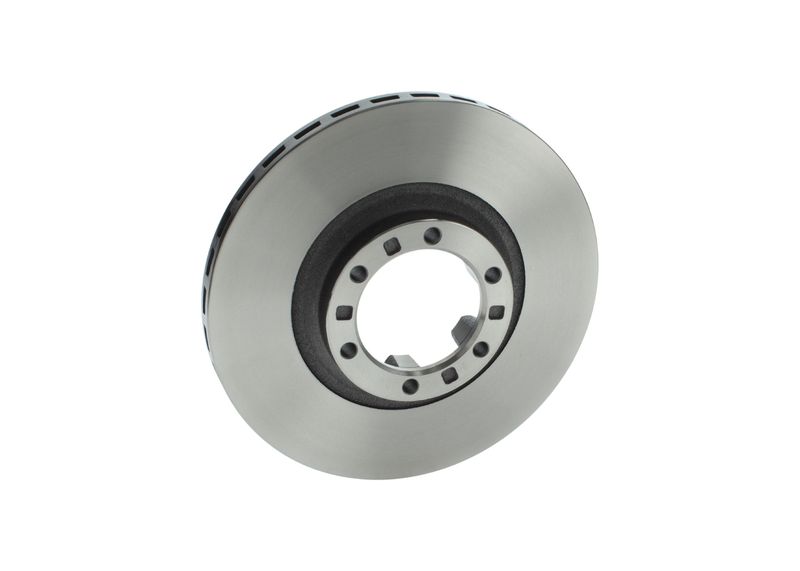

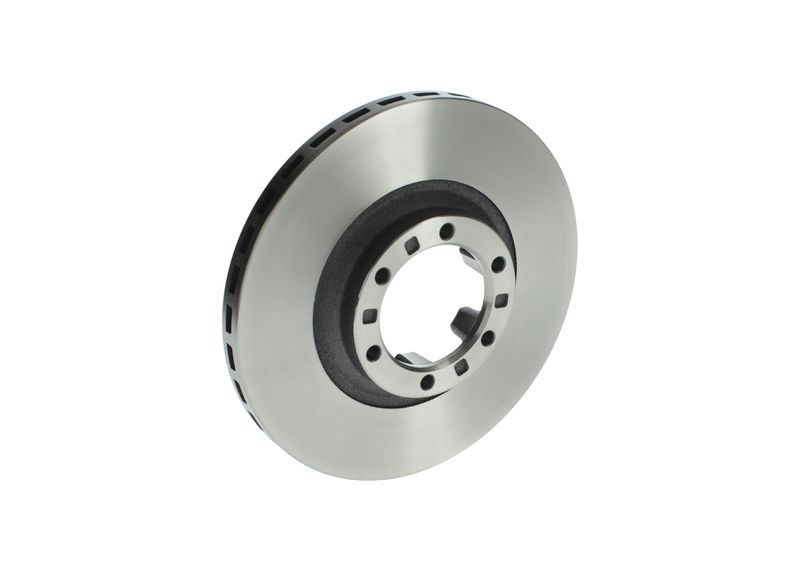

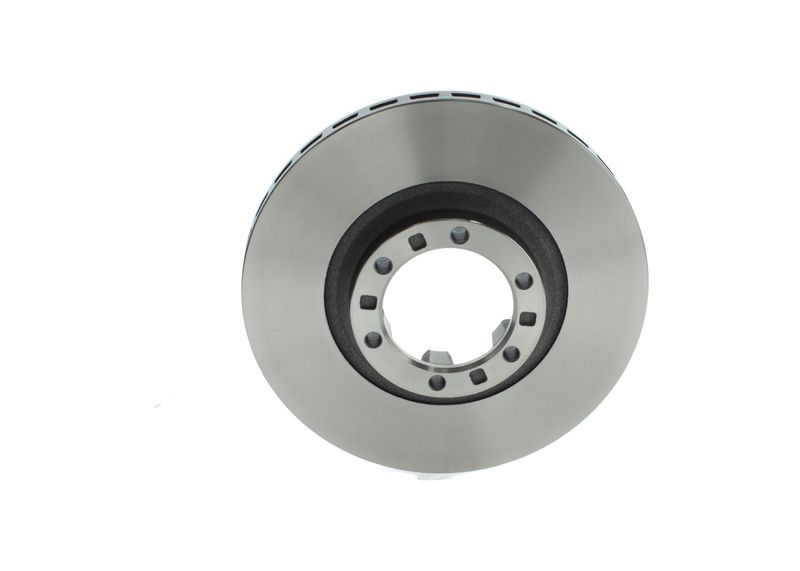

Bosch 0986478635 Brake Disc

SKU: 0986478635
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£69.38 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MITSUBISHI
L 300 III Bus (P0_W, P1_W, P2_W, P3_W)
Description Cylinder Capacity Horse Power Year
2.0 4WD (P23W, P03W, P13W) 1997 CCM 88 HP 12/1986 - 05/2004
2.0 4WD (P23W, P03W, P13W) 1997 CCM 90 HP 11/1986 - 05/2004
2.4 4WD (P24W) 2351 CCM 109 HP 11/1986 - 12/1990
2.4 4WD (P24W) 2351 CCM 112 HP 08/1986 - 05/2004
2.5 TD 4WD (P25W, P35W) 2477 CCM 87 HP 12/1987 - 05/2004
L 300 III Van (P0_V, P1_V, P2_V)
Description Cylinder Capacity Horse Power Year
2.5 TD 4WD (P25V) 2477 CCM 87 HP 11/1991 - 05/2003
L200 (K3_T, K2_T, K1_T, K0_T)
Description Cylinder Capacity Horse Power Year
2.5 TD 4WD (K34T) 2477 CCM 87 HP 11/1992 - 08/1996
2.5 D 4WD (K24T) 2476 CCM 70 HP 12/1987 - 05/1993
2.6 4WD (K33T) 2555 CCM 103 HP 11/1989 - 05/1995
PAJERO/SHOGUN   (L04_G, L14_G)
Description Cylinder Capacity Horse Power Year
2.5 TD (L044G, L049G) 2477 CCM 87 HP 04/1987 - 12/1991
3.0 V6 (L141G, L146G) 2972 CCM 141 HP 11/1988 - 11/1990
2.6 4WD (L042G, L047G) 2555 CCM 107 HP 10/1986 - 05/1991
3.0 i 4WD 2972 CCM 143 HP 05/1988 - 05/1991
PAJERO/SHOGUN Mk II Canvas Top (L04_G)
Description Cylinder Capacity Horse Power Year
2.6 (L042G, L047G) 2555 CCM 103 HP 01/1983 - 11/1990
2.5 TD (L044G, L049G) 2477 CCM 84 HP 05/1986 - 10/1989
PAJERO/SHOGUN Mk II (V3_W, V2_W, V4_W, V5_W)
Description Cylinder Capacity Horse Power Year
2.5 TD 4WD (V24W) 2477 CCM 99 HP 12/1990 - 10/1999
2.5 TDiC (V44W, V24W) 2477 CCM 99 HP 03/1991 - 08/1999
2.6 4WD 2555 CCM 103 HP 03/1991 - 10/1997
HYUNDAI
GALLOPER I
Description Cylinder Capacity Horse Power Year
2.5 TD 2477 CCM 85 HP 08/1991 - 07/1998
2.5 TD intercooler 2477 CCM 95 HP 08/1991 - 07/1998
3.0 V6 2972 CCM 141 HP 08/1991 - 07/1998
GALLOPER II (JK-01)
Description Cylinder Capacity Horse Power Year
3.0 V6 2972 CCM 141 HP 08/1998 - 12/2003
2.5 TD intercooler 2476 CCM 99 HP 08/1998 - 12/2003
2.5 TCi D 2476 CCM 105 HP 08/1998 - 12/2003
2.5 TD 2476 CCM 88 HP 08/1998 - 12/2003

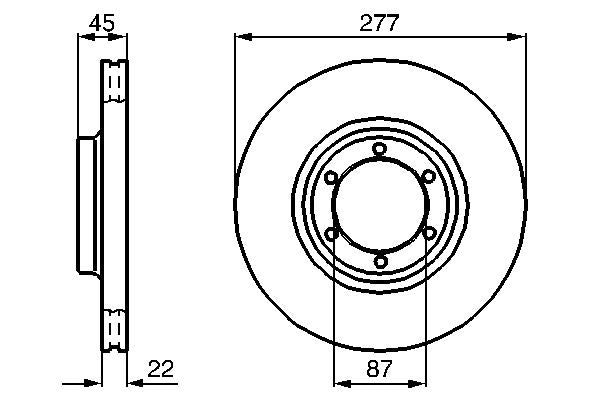

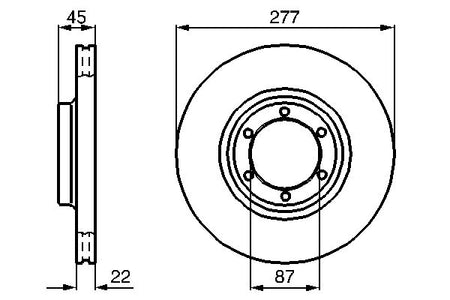

The Bosch 0986478635 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 277.2 mm outer diameter, 22 mm brake disc thickness, 20.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 277.2
Brake Disc Thickness [mm] : 22
Minimum thickness [mm] : 20.4
Height [mm] : 45.1
Bolt Hole Circle Ø [mm] : 108
Brake Disc Type : Vented
Centering Diameter [mm] : 87.1
Number of Holes : 6
Surface : Oiled
Bore Diameter up to [mm] : 10.67
  • Vendor BOSCH
  • SKU 0986478635
  • Barcode 3165141196122
  • MITSUBISHI : HB403101 MB407038 MB407039 S2351601A
  • HYUNDAI : ZB403101
  • APEC : DSK730
  • BLUE PRINT : ADC44318
  • BORG & BECK : BBD5006
  • BREMBO : 09.6817.10
  • DELPHI : BG2561
  • FTE : 9072493
  • MINTEX : MDC929
  • National : NBD364
  • SKF : VKBD 81126 V2
  • TEXTAR : 92074600
  • TRW : DF3031
  • VALEO : 186653
  • VALEO : 673598
  • BOSCH : BD553
