BOSCH

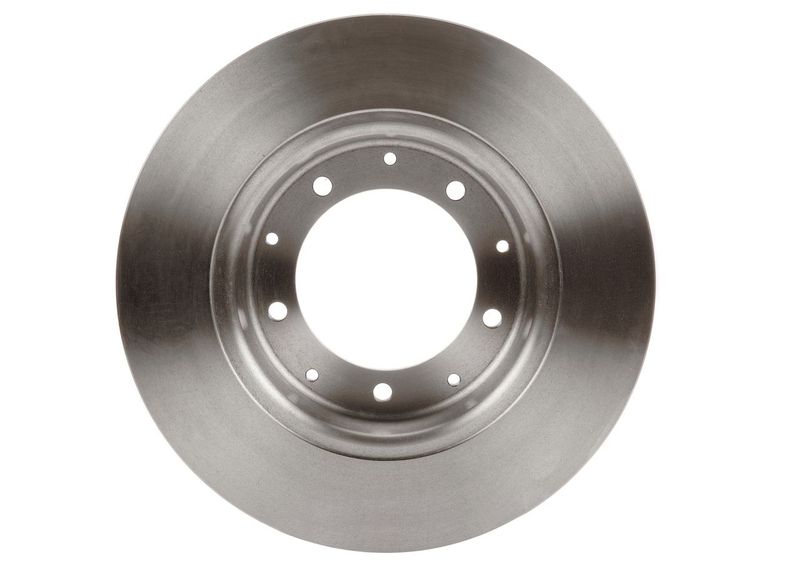

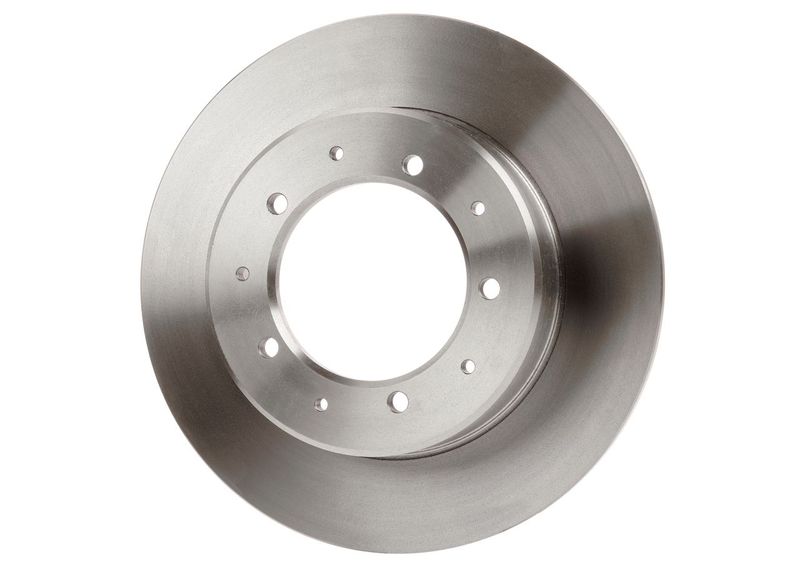

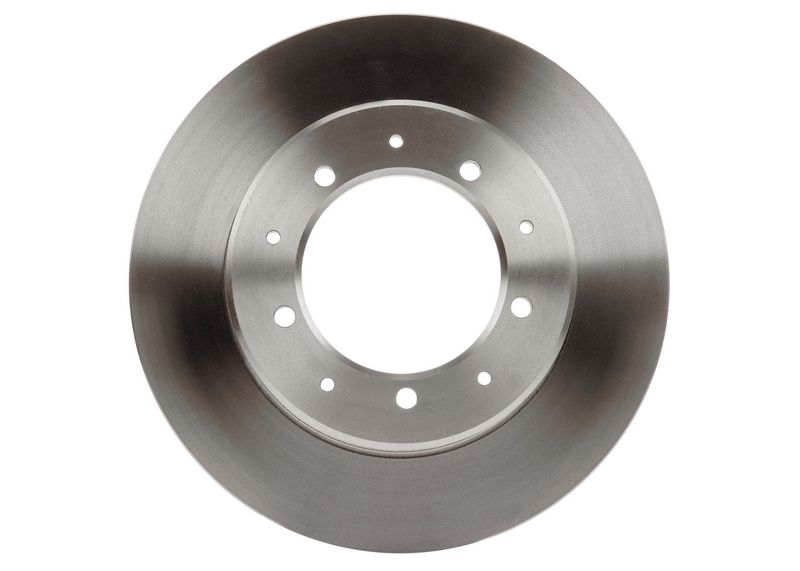

Bosch 0986478656 Brake Disc

SKU: 0986478656
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£63.23 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

LAND ROVER
DEFENDER Station Wagon (L316, L315)
Description Cylinder Capacity Horse Power Year
2.5 TDI 4x4 (L316) 2495 CCM 113 HP 08/1990 - 12/1998
3.9 V8 4x4 (L316) 3947 CCM 185 HP 11/1998 - 02/2016
2.5 Td5 4x4 (L316) 2495 CCM 122 HP 06/1998 - 02/2016
2.2 Td4 4x4 (L316) 2198 CCM 122 HP 08/2011 - 02/2016
2.5 4x4 2495 CCM 83 HP 09/1990 - 12/1994
3.5 4x4 3528 CCM 117 HP 09/1990 - 08/1993
2.4 Td4 4x4 (L316) 2402 CCM 122 HP 10/2006 - 02/2016
2.5 D 4x4 (L316) 2495 CCM 69 HP 09/1990 - 07/1994
2.2 Td4 4x4 (L316) 2198 CCM 150 HP 02/2015 - 02/2016
3.5 4x4 3528 CCM 136 HP 09/1990 - 07/1994
2.4 Td4 4x4 2402 CCM 140 HP 07/2007 - 02/2016
DEFENDER Cabrio (L316)
Description Cylinder Capacity Horse Power Year
2.5 TDI 4x4 (L316) 2495 CCM 113 HP 08/1990 - 11/1998
2.5 Td5 4x4 (L316) 2495 CCM 122 HP 06/1998 - 02/2016
3.9 4x4 3947 CCM 182 HP 04/1998 - 09/2000
2.4 Td4 4x4 (L317) 2402 CCM 122 HP 05/2007 - 02/2016
2.5 D 4x4 (L316) 2495 CCM 69 HP 09/1990 - 07/1994
3.5 4x4 3528 CCM 117 HP 09/1990 - 08/1993
DEFENDER Platform/Chassis (L316)
Description Cylinder Capacity Horse Power Year
2.4 TD4 4x4 2402 CCM 122 HP 05/2007 - 02/2016
DEFENDER Pick Up (L316)
Description Cylinder Capacity Horse Power Year
2.5 Td5 4x4 (L316) 2495 CCM 122 HP 06/1998 - 02/2016
4.0 4x4 3947 CCM 182 HP 04/1998 - 09/2000
2.4 Td4 4x4 2402 CCM 140 HP 10/2009 - 05/2016
DISCOVERY I (LJ)
Description Cylinder Capacity Horse Power Year
2.5 TDI 4x4 2495 CCM 113 HP 10/1989 - 10/1998
3.5 4x4 (SALLJG) 3531 CCM 154 HP 06/1989 - 06/1994
2.0 16 V 4x4 1994 CCM 135 HP 06/1989 - 10/1998
4.0 4x4 3947 CCM 182 HP 09/1993 - 10/1998
3.5 4x4 3531 CCM 166 HP 06/1989 - 06/1994
3.5 4x4 3528 CCM 133 HP 06/1989 - 08/1990
2.5 TDI 4x4 2495 CCM 122 HP 06/1993 - 10/1998
2.5 D 4x4 2496 CCM 116 HP 10/1993 - 12/1998
4.0 4x4 3947 CCM 185 HP 09/1993 - 10/1998
RANGE ROVER
Description Cylinder Capacity Horse Power Year
3.5 Vogue 4x4 3528 CCM 126 HP 08/1981 - 09/1990
3.5 4x4 3528 CCM 146 HP 01/1987 - 09/1990
3.5 Vogue 4x4 3528 CCM 163 HP 10/1985 - 09/1990
3.9 Cat 4x4 3947 CCM 173 HP 11/1988 - 07/1994
2.4 TD 4x4 2393 CCM 106 HP 04/1986 - 12/1990
3.9 Vogue SEI 4x4 3947 CCM 182 HP 11/1988 - 07/1994
4.3 Vogue LSE 4x4 4275 CCM 203 HP 09/1992 - 07/1994
3.5 4x4 3528 CCM 132 HP 07/1970 - 08/1981
2.4 TD 4x4 2393 CCM 121 HP 10/1989 - 02/1992
2.5 TDi 4x4 2495 CCM 113 HP 11/1992 - 04/1996
2.5 TD 4x4 2498 CCM 121 HP 10/1989 - 11/1992
3.5 4x4 3528 CCM 131 HP 10/1969 - 08/1991
2.4 TD 4x4 2393 CCM 113 HP 04/1986 - 07/1994
3.9 4x4 3947 CCM 185 HP 10/1989 - 12/1994
3.9 4x4 3947 CCM 182 HP 11/1988 - 12/1992

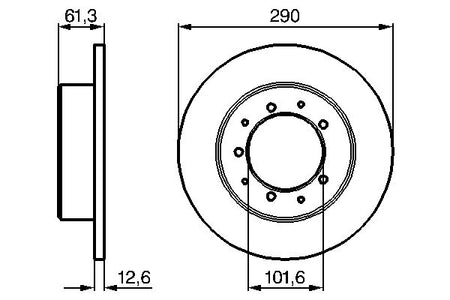

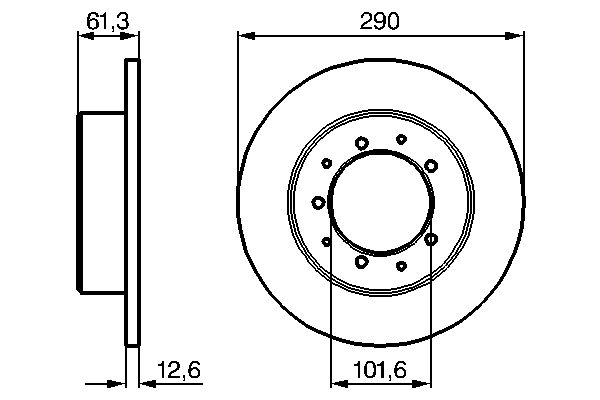

The Bosch 0986478656 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 289.6 mm outer diameter, 12.6 mm brake disc thickness, 11.7 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 289.6
Brake Disc Thickness [mm] : 12.6
Minimum thickness [mm] : 11.7
Height [mm] : 61.2
Bolt Hole Circle Ø [mm] : 136
Brake Disc Type : solid
Centering Diameter [mm] : 101.7
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 10.3
  • Vendor BOSCH
  • SKU 0986478656
  • Barcode 4047024188495
  • LEYLAND : 571912
  • ROVER : FRC 9831 FTC 1381 FTC 3846 FTC 461 LR017953 R57 1912 571 912
  • LAND ROVER : FRC9831 FTC1381 FTC3846 FTC461 LR017953 571912
  • APEC : DSK945
  • APEC : SDK6204
  • BLUE PRINT : ADJ134325
  • BORG & BECK : BBD4812
  • BORG & BECK : BBD5064
  • BREMBO : 08.5316.10
  • BREMBO : 08.5347.11
  • BREMBO : 08.5347.14
  • DELPHI : BG2799
  • Fahren : FBD6204
  • FEBI BILSTEIN : 106298
  • FTE : 9072626
  • MEYLE : 45-15 523 0003/PD
  • MINTEX : MDC468C
  • NAPA : NBD5720
  • National : NBD197
  • SKF : VKBD 90642 S2
  • TRW : DF1802
  • VALEO : 673239
  • BOSCH : BD572
