Bosch 0986478689 Brake Disc - 1
Bosch 0986478689 Brake Disc - 1
BOSCH

Bosch 0986478689 Brake Disc

SKU: 0986478689
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£69.94 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

DAIMLER
2.8 - 5.3
Description Cylinder Capacity Horse Power Year
Double Six 5.3 5344 CCM 268 HP 07/1981 - 02/1993
JAGUAR
XJ
Description Cylinder Capacity Horse Power Year
6 4.2 4235 CCM 205 HP 09/1979 - 12/1987
12 5.3 5343 CCM 287 HP 05/1975 - 02/1993
12 H.E. 5343 CCM 295 HP 05/1981 - 12/1992
6 3.4 3442 CCM 162 HP 05/1975 - 10/1986
6 4.2 4235 CCM 177 HP 09/1985 - 12/1986
6 4.2 4235 CCM 181 HP 09/1985 - 12/1986
Sovereign V12 5343 CCM 268 HP 07/1985 - 12/1992
XJ Coupe
Description Cylinder Capacity Horse Power Year
3.6 3590 CCM 185 HP 01/1988 - 05/1992
3.6 3590 CCM 212 HP 10/1983 - 12/1989
3.6 3590 CCM 220 HP 10/1983 - 12/1988
3.6 3590 CCM 199 HP 01/1988 - 05/1991
5.3 H.E. 5343 CCM 264 HP 09/1985 - 09/1992
5.3 5343 CCM 268 HP 01/1986 - 12/1989
5.3 H.E. 5343 CCM 295 HP 07/1981 - 12/1987
5.3 5343 CCM 287 HP 09/1973 - 05/1992
5.3 5343 CCM 275 HP 01/1988 - 06/1991
5.3 5343 CCM 282 HP 05/1991 - 08/1993
XJSC Convertible (X27)
Description Cylinder Capacity Horse Power Year
3.6 3590 CCM 185 HP 08/1987 - 05/1991
3.6 3590 CCM 212 HP 08/1987 - 05/1991
3.6 3590 CCM 220 HP 10/1986 - 12/1988
5.3 5343 CCM 287 HP 01/1988 - 05/1992
5.3 5343 CCM 282 HP 05/1991 - 08/1993

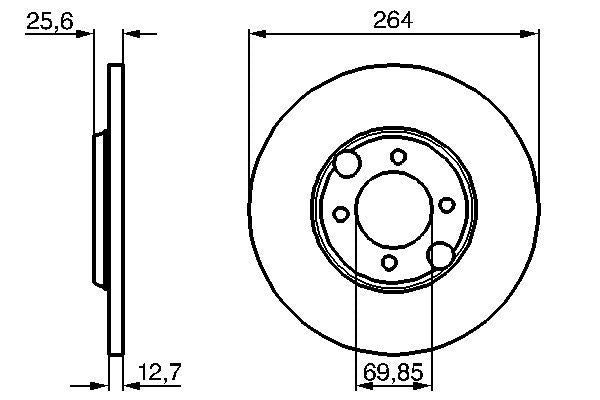

The Bosch 0986478689 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 264 mm outer diameter, 13 mm brake disc thickness, 11.4 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 264
Brake Disc Thickness [mm] : 13
Minimum thickness [mm] : 11.4
Height [mm] : 25.6
Bolt Hole Circle Ø [mm] : 95.25
Brake Disc Type : solid
Centering Diameter [mm] : 69.85
Number of Holes : 4
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 11.6
  • Vendor BOSCH
  • SKU 0986478689
  • Barcode 4047024094970
  • JAGUAR : JLM731
  • BORG & BECK : BBD5860S
  • BREMBO : 08.2557.40
  • DELPHI : BG2508
  • MINTEX : MDC130
  • National : NBD098
  • TRW : DF1878
  • BOSCH : BD603
