Bosch 0986478701 Brake Disc - 1
Bosch 0986478701 Brake Disc - 1
BOSCH

Bosch 0986478701 Brake Disc

SKU: 0986478701
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£43.85 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA
323 F Mk IV (BG)
Description Cylinder Capacity Horse Power Year
1.8 16V (BG8S, BG8P) 1840 CCM 103 HP 08/1989 - 07/1994
1.8 16V GT (BG8S, BG8P) 1840 CCM 128 HP 08/1989 - 07/1994
1.8 16V (BG8S, BG8P) 1840 CCM 140 HP 09/1989 - 03/1993
323 C Mk IV (BG)
Description Cylinder Capacity Horse Power Year
1.8 16V GT (BG8S) 1840 CCM 128 HP 09/1989 - 03/1993
1.8 16V Turbo 4WD (BG8S) 1840 CCM 163 HP 09/1990 - 12/1992
1.8 16V (BG8S) 1840 CCM 140 HP 09/1989 - 03/1993
1.8 (BG8S) 1840 CCM 130 HP 09/1989 - 06/1993
323 S Mk IV (BG)
Description Cylinder Capacity Horse Power Year
1.8 16V (BG8P) 1840 CCM 103 HP 08/1989 - 07/1994
1.8 16V GT (BG8P) 1840 CCM 128 HP 06/1989 - 07/1994
MX-3 / AZ-3 / PRESSO (EC)
Description Cylinder Capacity Horse Power Year
1.6 1597 CCM 90 HP 05/1991 - 10/1993
1.8 i V6 (ECPSA) 1845 CCM 133 HP 01/1992 - 01/1994
1.6 i 1597 CCM 107 HP 11/1993 - 09/1998
1.8 i V6 (ECPSA) 1845 CCM 129 HP 01/1994 - 10/1997
1.8 i V6 1845 CCM 135 HP 01/1996 - 10/1997
1.6 i 1598 CCM 110 HP 11/1993 - 09/1998
MX-5   (NA)
Description Cylinder Capacity Horse Power Year
1.8 (NA8C) 1840 CCM 130 HP 01/1993 - 04/1998
1.8 (NA8C) 1839 CCM 131 HP 09/1993 - 12/1997
MX-5 Mk II (NB)
Description Cylinder Capacity Horse Power Year
1.6 16V (NB6C) 1597 CCM 110 HP 05/1998 - 10/2005
1.8 16V (NB8C) 1840 CCM 140 HP 05/1998 - 10/2005
1.8 (NB8C) 1839 CCM 140 HP 01/1998 - 07/2002

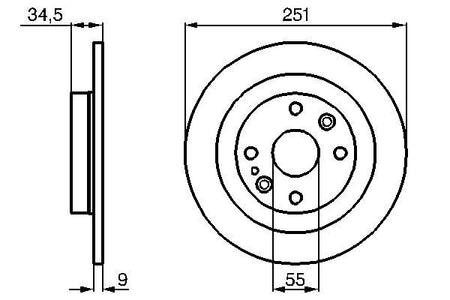

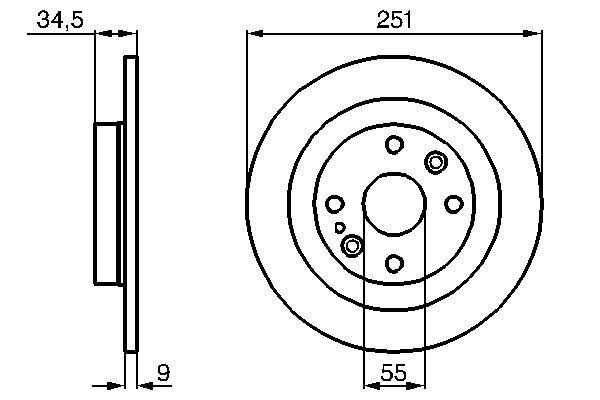

The Bosch 0986478701 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 250.5 mm outer diameter, 9 mm brake disc thickness, 8 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 250.5
Brake Disc Thickness [mm] : 9
Minimum thickness [mm] : 8
Height [mm] : 34.5
Bolt Hole Circle Ø [mm] : 100
Brake Disc Type : solid
Centering Diameter [mm] : 55.02
Number of Holes : 4
Surface : Oiled
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13
  • Vendor BOSCH
  • SKU 0986478701
  • Barcode 4047024095014
  • MAZDA : BB4C-26-251 BB4C-26-251C BR74-26-251A BR74-26-251B BR74-26-251D BR74-26-251E F1CZ2C026A F1CZ2C026B F1ZZ2C026A F1ZZ2C026B
  • APEC : DSK623
  • APEC : SDK6215
  • BORG & BECK : BBD4994
  • BREMBO : 08.6857.10
  • DELPHI : BG2805
  • Fahren : FBD6215
  • FTE : 9072723
  • FTE : 9082656
  • HELLA : 8DD 355 103-191
  • MEYLE : 35-15 523 0005
  • MINTEX : MDC660
  • NAPA : NBD5715
  • National : NBD450
  • SKF : VKBD 90705 S2
  • TEXTAR : 92061700
  • TRW : DF2703
  • VALEO : 673426
  • BOSCH : BD615
