BOSCH

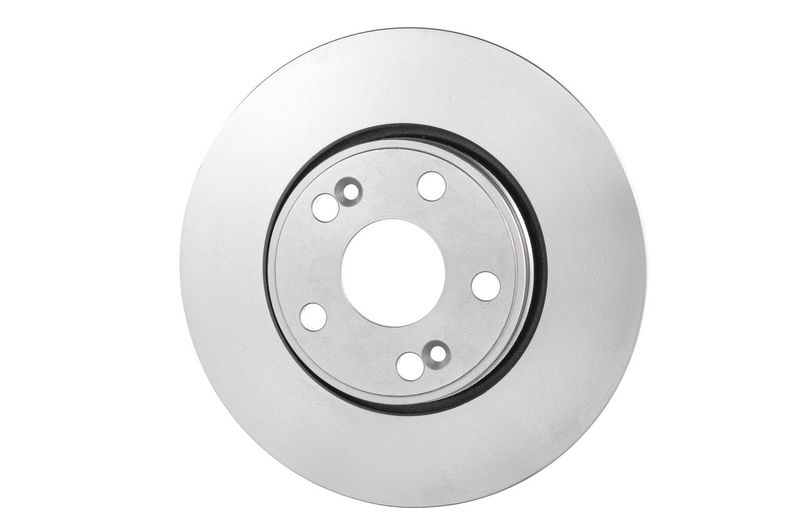

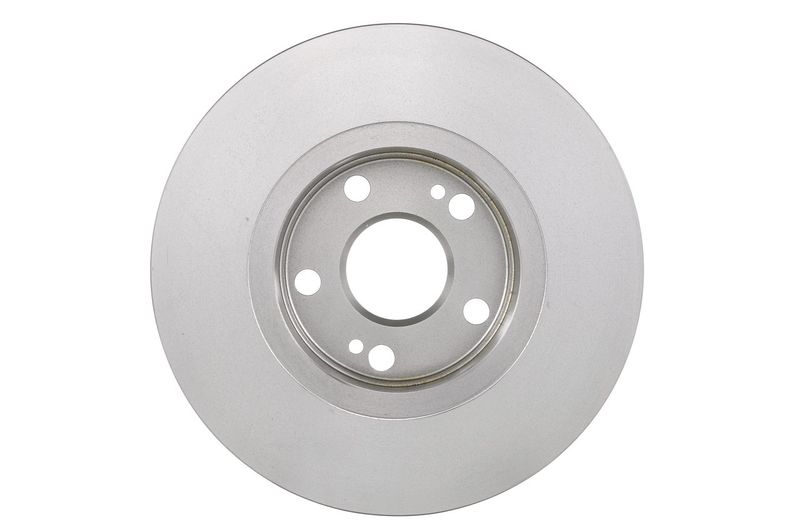

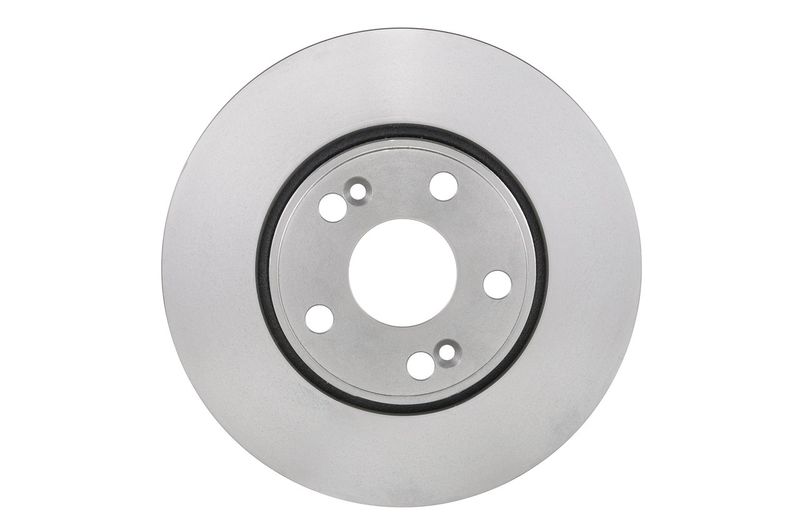

Bosch 0986478734 Brake Disc

SKU: 0986478734

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£54.06 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT

ESPACE Mk III (JE0_)

Description	Cylinder Capacity	Horse Power	Year
2.0 (JE0A)	1998 CCM	114 HP	11/1996 - 10/2000
3.0 (JE0D)	2963 CCM	167 HP	11/1996 - 10/1998
2.2 12V TD (JE0E, JE0H, JE0P)	2188 CCM	113 HP	11/1996 - 10/2000
2.0 16V (JE0N, JE0L, JE02)	1998 CCM	140 HP	10/1998 - 10/2002
1.9 dTi (JE0M)	1870 CCM	98 HP	02/1999 - 10/2002
2.0	1998 CCM	139 HP	09/2001 - 10/2002
2.2 D	2188 CCM	114 HP	11/1997 - 01/2000

LAGUNA I (B56_, 556_)

Description	Cylinder Capacity	Horse Power	Year
3.0 (B56E, B565, B56R)	2963 CCM	167 HP	11/1993 - 03/2001
2.0 (B56C/H/N)	1998 CCM	113 HP	11/1993 - 03/2001
2.0 16V (B56D, B56M)	1948 CCM	139 HP	06/1995 - 03/2001
2.2 dT (B569)	2188 CCM	113 HP	03/1996 - 03/2001
3.0 24V (B56V)	2946 CCM	190 HP	03/1997 - 03/2001
1.9 dTi (B56J)	1870 CCM	98 HP	10/1997 - 03/2001
1.8 16V (B563, B564)	1783 CCM	120 HP	04/1998 - 03/2001
2.0	1998 CCM	109 HP	03/1999 - 03/2001

LAGUNA I Estate (K56_)

Description	Cylinder Capacity	Horse Power	Year
2.0 16V (K56D, K56M)	1948 CCM	139 HP	09/1995 - 03/2001
2.2 dT (K569)	2188 CCM	113 HP	03/1996 - 03/2001
3.0 (K56R, K565)	2963 CCM	167 HP	02/1996 - 03/2001
3.0 24V (K56V)	2946 CCM	190 HP	03/1997 - 03/2001
1.9 dTi (K56J)	1870 CCM	98 HP	10/1997 - 03/2001
1.8 16V (K563, K564)	1783 CCM	120 HP	04/1998 - 03/2001

SAFRANE (B54_)

Description	Cylinder Capacity	Horse Power	Year
3.0 V6 (B54B, B544)	2975 CCM	167 HP	12/1992 - 07/1996
2.5 dT (B548)	2499 CCM	113 HP	12/1992 - 07/1996
3.0 V6 4x4 (B54B, B544)	2975 CCM	167 HP	12/1992 - 07/1996
3.0	2963 CCM	170 HP	03/1993 - 10/1996
3.0	2975 CCM	170 HP	02/1993 - 06/1996

SAFRANE Mk II (B54_)

Description	Cylinder Capacity	Horse Power	Year
2.0 16V (B54L)	1948 CCM	136 HP	07/1996 - 12/2000
2.2 dT (B54G)	2188 CCM	113 HP	07/1996 - 12/2000
2.5 20V (B54F)	2435 CCM	165 HP	07/1996 - 12/2000
3.0 V6 (B54M)	2963 CCM	167 HP	07/1996 - 12/2000
2.9 24V (B54N)	2946 CCM	190 HP	03/1999 - 12/2000

SCÉNIC I MPV (JA0/1_, FA0_)

Description	Cylinder Capacity	Horse Power	Year
2.0 16V RX4	1998 CCM	139 HP	06/2000 - 08/2003
1.9 dCi RX4	1870 CCM	102 HP	11/2000 - 08/2003

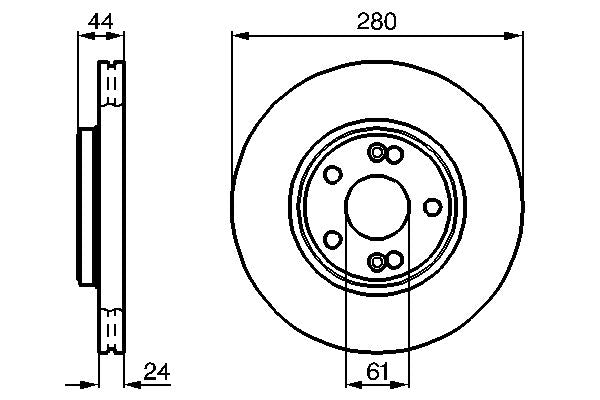

The Bosch 0986478734 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 280 mm outer diameter, 24 mm brake disc thickness, 21.8 mm minimum thickness, and vented and internally vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 280

Brake Disc Thickness [mm] : 24

Minimum thickness [mm] : 21.8

Height [mm] : 44

Bolt Hole Circle Ø [mm] : 108

Brake Disc Type : Vented

Centering Diameter [mm] : 61.01

Number of Holes : 5

Surface : Oiled

Machining : High-carbon

Supplementary Article/Supplementary Info 2 : with bolts/screws

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 15.6

Brake Disc Type : internally vented

APEC : DSK834
BLUE PRINT : ADR164306
BORG & BECK : BBD5020
BREMBO : 09.8137.11
BREMBO : 09.8137.14
BREMBO : 09.8137.75
DELPHI : BG2697
FEBI BILSTEIN : 12097
FTE : 9072130
HELLA : 8DD 355 127-741
MEYLE : 16-15 521 0016
MINTEX : MDC778
SKF : VKBD 80210 V2
TEXTAR : 92113800
TEXTAR : 92113803
TRW : DF4109
VALEO : 186600
VALEO : 673343

Bosch 0986478734 Brake Disc
