BOSCH

Bosch 0986478743 Brake Disc

5.0/5 78 reviews

SKU: 0986478743

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£55.78 inc. VAT

Complete the job

APEC — Aerosol Brake cleaner 600ml

£6.92

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details

Pay securely with

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

RENAULT

LAGUNA II (BG0/1_)

Description	Cylinder Capacity	Horse Power	Year
1.6 16V (BG0A, BG0L)	1598 CCM	107 HP	03/2001 - 05/2005
1.8 16V (BG0B, BG0C, BG0J, BG0M, BG0V)	1783 CCM	121 HP	03/2001 - 05/2005
3.0 V6 24V (BG01, BG02, BG0D, BG0Y)	2946 CCM	207 HP	03/2001 - 08/2007
1.9 dCi (BG08, BG0G)	1870 CCM	120 HP	03/2001 - 09/2007
2.0 16V IDE (BG0N)	1998 CCM	140 HP	04/2001 - 09/2007
1.9 dCI (BG0E)	1870 CCM	105 HP	06/2001 - 05/2005
2.2 dCi (BG0F)	2188 CCM	150 HP	10/2001 - 08/2006
1.8 16V (BG0B, BG0M)	1783 CCM	120 HP	03/2001 - 09/2007
1.8 16V (BG06, BG0J, BG0M)	1783 CCM	116 HP	03/2001 - 12/2007
1.9 dCi (BG0R, BG0E)	1870 CCM	100 HP	10/2001 - 05/2005
2.0 16V (BG00, BG0K, BG0P, BG0W)	1998 CCM	135 HP	08/2002 - 12/2007
1.9 dCi (BG05)	1870 CCM	92 HP	03/2004 - 05/2005

LAGUNA II Sport Tourer (KG0/1_)

Description	Cylinder Capacity	Horse Power	Year
1.6 16V (KG0A, KG0L)	1598 CCM	107 HP	03/2001 - 12/2007
1.8 16V	1783 CCM	121 HP	03/2001 - 05/2005
3.0 V6 24V (KG0D, KG01)	2946 CCM	207 HP	03/2001 - 12/2007
1.9 dCi (KG0G)	1870 CCM	120 HP	03/2001 - 09/2007
2.0 16V IDE (KG0N)	1998 CCM	140 HP	04/2001 - 09/2007
1.9 dCI (KG0E)	1870 CCM	105 HP	06/2001 - 05/2005
2.2 dCi (KG0F)	2188 CCM	150 HP	10/2001 - 08/2006
1.8 16V (KG0J)	1783 CCM	116 HP	03/2001 - 05/2005
1.8 16V (KG0B, KG0M)	1783 CCM	120 HP	03/2001 - 05/2005
1.9 dCi (KG0E, KG0R)	1870 CCM	100 HP	10/2001 - 05/2005
2.0 16V (KG00, KG0K, KG0W, KG0P)	1998 CCM	135 HP	08/2002 - 12/2007
1.9 dCi (KG05)	1870 CCM	92 HP	03/2004 - 05/2005

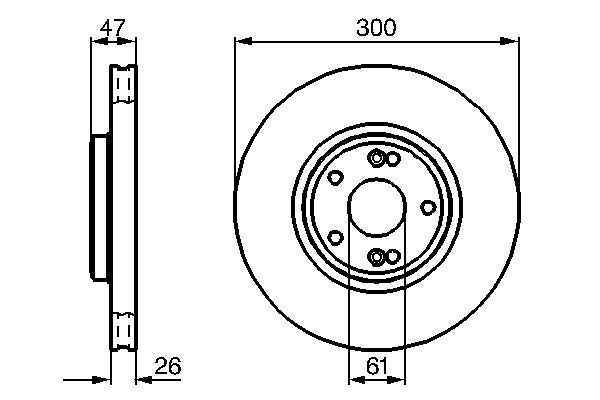

The Bosch 0986478743 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 300 mm outer diameter, 26 mm brake disc thickness, 22.8 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 300

Brake Disc Thickness [mm] : 26

Minimum thickness [mm] : 22.8

Height [mm] : 47

Bolt Hole Circle Ø [mm] : 108

Brake Disc Type : Vented

Centering Diameter [mm] : 61

Number of Holes : 5

Surface : Oiled

Machining : High-carbon

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 13.5

APEC : DSK2102
APEC : SDK6144
BLUE PRINT : ADR164319
BORG & BECK : BBD4271
BOSCH : 0 986 479 B47
BREMBO : 09.9074.10
BREMBO : 09.9074.11
DELPHI : BG3688
FEBI BILSTEIN : 23333
FTE : 9072146
HELLA : 8DD 355 109-301
MEYLE : 16-15 521 0015
MEYLE : 16-83 521 0015/PD
MINTEX : MDC1535
National : NBD1167
SKF : VKBD 80338 V1
TEXTAR : 92119000
TEXTAR : 92119003
TRW : DF4229
TRW : DF4229S
VALEO : 197221
VALEO : 673131
