BOSCH

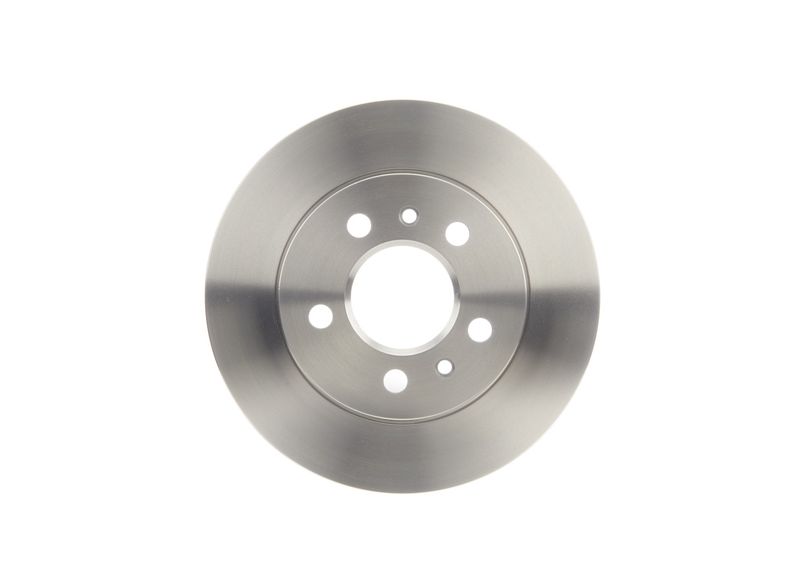

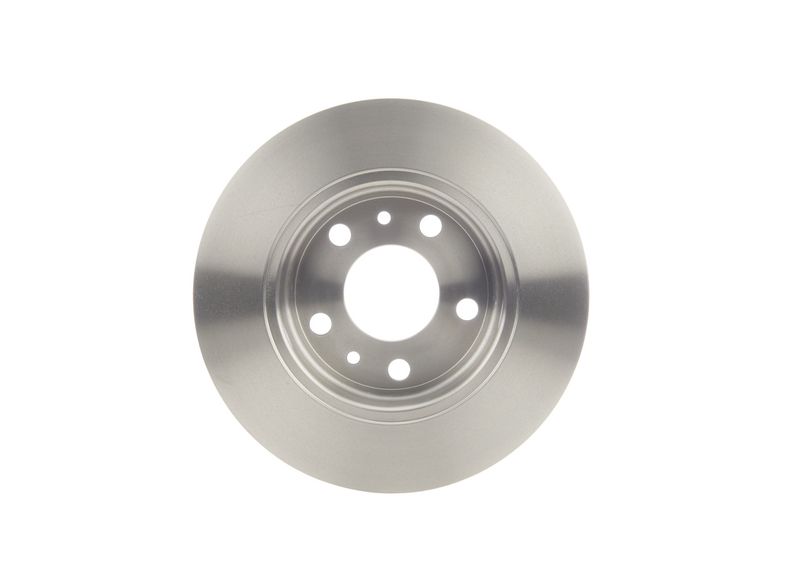

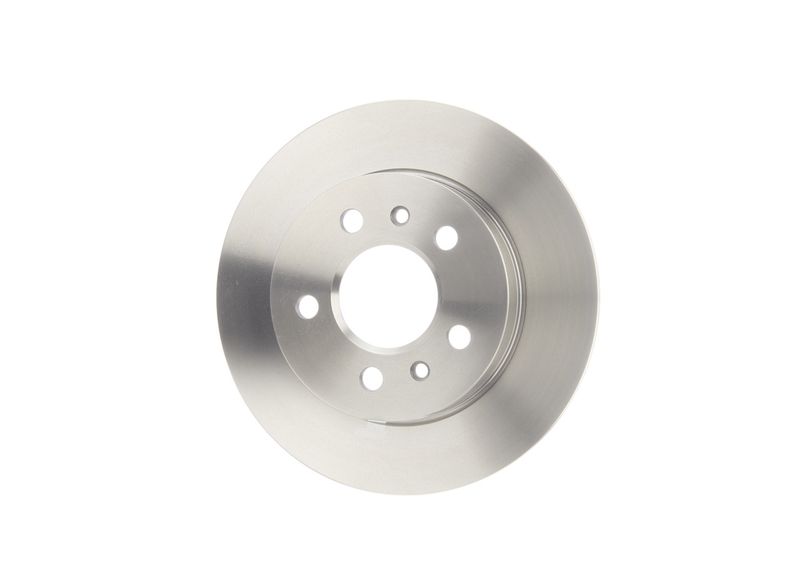

Bosch 0986478757 Brake Disc

Position: Check fitment

5.0/5 78 reviews

SKU: 0986478757

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£42.42 inc. VAT

Complete the job

APEC — Aerosol Brake cleaner 600ml

£6.92

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details

Pay securely with

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

RENAULT

LAGUNA I (B56_, 556_)

Description	Cylinder Capacity	Horse Power	Year
3.0 (B56E, B565, B56R)	2963 CCM	167 HP	11/1993 - 03/2001
2.0 (B56C/H/N)	1998 CCM	113 HP	11/1993 - 03/2001
2.0 16V (B56D, B56M)	1948 CCM	139 HP	06/1995 - 03/2001
2.2 dT (B569)	2188 CCM	113 HP	03/1996 - 03/2001
3.0 24V (B56V)	2946 CCM	190 HP	03/1997 - 03/2001
1.9 dTi (B56J)	1870 CCM	98 HP	10/1997 - 03/2001
1.8 16V (B563, B564)	1783 CCM	120 HP	04/1998 - 03/2001
2.0	1998 CCM	109 HP	03/1999 - 03/2001

LAGUNA I Estate (K56_)

Description	Cylinder Capacity	Horse Power	Year
2.0 16V (K56D, K56M)	1948 CCM	139 HP	09/1995 - 03/2001
2.2 dT (K569)	2188 CCM	113 HP	03/1996 - 03/2001
3.0 (K56R, K565)	2963 CCM	167 HP	02/1996 - 03/2001
3.0 24V (K56V)	2946 CCM	190 HP	03/1997 - 03/2001
1.9 dTi (K56J)	1870 CCM	98 HP	10/1997 - 03/2001
1.8 16V (K563, K564)	1783 CCM	120 HP	04/1998 - 03/2001

SAFRANE (B54_)

Description	Cylinder Capacity	Horse Power	Year
2.2 (B543)	2165 CCM	137 HP	04/1992 - 07/1996
3.0 V6 (B54B, B544)	2975 CCM	167 HP	12/1992 - 07/1996
2.5 dT (B548)	2499 CCM	113 HP	12/1992 - 07/1996
3.0 V6 4x4 (B54B, B544)	2975 CCM	167 HP	12/1992 - 07/1996
2.0 12V (B542, B54E)	1995 CCM	132 HP	04/1992 - 07/1996
3.0	2963 CCM	170 HP	03/1993 - 10/1996
3.0	2975 CCM	170 HP	02/1993 - 06/1996

SAFRANE Mk II (B54_)

Description	Cylinder Capacity	Horse Power	Year
2.0 16V (B54L)	1948 CCM	136 HP	07/1996 - 12/2000
2.2 dT (B54G)	2188 CCM	113 HP	07/1996 - 12/2000
2.5 20V (B54F)	2435 CCM	165 HP	07/1996 - 12/2000
3.0 V6 (B54M)	2963 CCM	167 HP	07/1996 - 12/2000
2.9 24V (B54N)	2946 CCM	190 HP	03/1999 - 12/2000

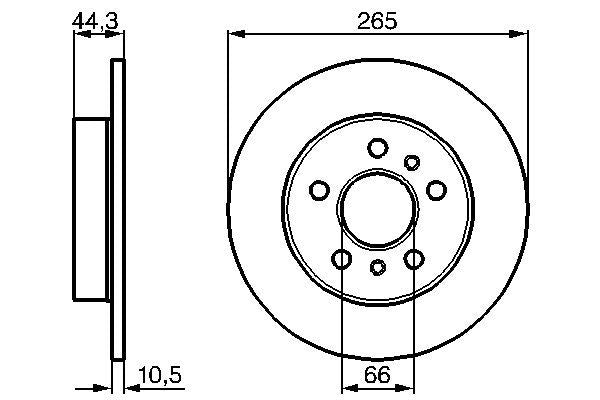

The Bosch 0986478757 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 264.7 mm outer diameter, 10.5 mm brake disc thickness, 9.5 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 264.7

Brake Disc Thickness [mm] : 10.5

Minimum thickness [mm] : 9.5

Height [mm] : 44.3

Bolt Hole Circle Ø [mm] : 108

Brake Disc Type : solid

Centering Diameter [mm] : 66

Number of Holes : 5

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 15

APEC : DSK707
BORG & BECK : BBD5102
BREMBO : 08.5645.50
DELPHI : BG2696
FTE : 9072143
MINTEX : MDC785
National : NBD496
TEXTAR : 92065100
TRW : DF1029
VALEO : 186307
VALEO : 673526
