Bosch 0986478774 Brake Disc - 1
Bosch 0986478774 Brake Disc - 1
BOSCH

Bosch 0986478774 Brake Disc

SKU: 0986478774
Your selected vehicle
Out of stock
Out of Stock
£54.28 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HYUNDAI
COUPE I (RD)
Description Cylinder Capacity Horse Power Year
2.0 16V 1975 CCM 139 HP 08/1996 - 04/2002
1.6 16V 1599 CCM 116 HP 03/1998 - 04/2002
1.6 i 16V 1599 CCM 114 HP 12/1996 - 04/2002
2.0 16V 1975 CCM 135 HP 03/2001 - 04/2002
2.0 1975 CCM 137 HP 08/1999 - 01/2002
LANTRA Mk II (J-2)
Description Cylinder Capacity Horse Power Year
1.6 i 1599 CCM 90 HP 11/1995 - 09/2000
1.6 16V 1599 CCM 114 HP 11/1995 - 09/2000
1.8 16V 1795 CCM 128 HP 11/1995 - 09/2000
2.0 16V 1975 CCM 139 HP 08/1996 - 09/2000
1.5 12V 1495 CCM 88 HP 12/1996 - 09/2000
1.9 D 1905 CCM 68 HP 03/1998 - 09/2000
1.6 16V 1599 CCM 118 HP 06/1995 - 09/2000
LANTRA Mk II Estate (J-2)
Description Cylinder Capacity Horse Power Year
1.6 i 1599 CCM 90 HP 02/1996 - 10/2000
1.6 16V 1599 CCM 114 HP 02/1996 - 10/2000
1.8 16V 1795 CCM 128 HP 02/1996 - 10/2000
1.5 12V 1495 CCM 88 HP 04/1997 - 10/2000
2.0 16V 1975 CCM 139 HP 11/1995 - 10/2000
1.9 D 1905 CCM 68 HP 03/1998 - 10/2000
1.6 16V 1599 CCM 118 HP 06/1998 - 05/2000
SONATA Mk III (EF)
Description Cylinder Capacity Horse Power Year
2.5 V6 24V 2493 CCM 160 HP 06/1998 - 10/2001
2.0 16V 1997 CCM 136 HP 06/1998 - 10/2001
2.4 16V 2351 CCM 143 HP 03/1998 - 10/2001

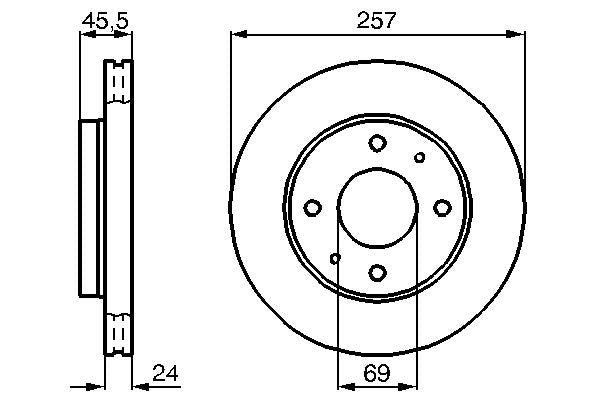

The Bosch 0986478774 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 257 mm outer diameter, 24 mm brake disc thickness, 22.4 mm minimum thickness, and vented and internally vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 257
Brake Disc Thickness [mm] : 24
Minimum thickness [mm] : 22.4
Height [mm] : 45.8
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 69
Number of Holes : 4
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.6
Brake Disc Type : internally vented
  • Vendor BOSCH
  • SKU 0986478774
  • Barcode 3165143376560
  • HYUNDAI : 51712 17000 51712 2D300 51712 2D310 51712 38100
  • KIA : 51712 2C000 51712 2F000
  • BLUE PRINT : ADG043135
  • BLUE PRINT : ADG04347
  • BLUE PRINT : ADG04356
  • BORG & BECK : BBD4347
  • BREMBO : 09.A258.10
  • DELPHI : BG3750
  • FEBI BILSTEIN : 108449
  • FEBI BILSTEIN : 108601
  • FEBI BILSTEIN : 31316
  • FTE : 9072313
  • HELLA : 8DD 355 110-931
  • MINTEX : MDC1512
  • SKF : VKBD 80867 V2
  • TEXTAR : 92130800
  • TRW : DF4158
  • VALEO : 186823
  • BOSCH : BD684
