Bosch 0986478787 Brake Disc - 1
Bosch 0986478787 Brake Disc - 1
BOSCH

Bosch 0986478787 Brake Disc

SKU: 0986478787
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£51.94 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA
323 C Mk V (BA)
Description Cylinder Capacity Horse Power Year
1.5 16V (BA11) 1489 CCM 88 HP 08/1994 - 09/1998
323 S Mk VI Saloon (BJ)
Description Cylinder Capacity Horse Power Year
1.3 16V (BJ3P) 1324 CCM 73 HP 09/1998 - 01/2001
1.5 16V (BJ5P) 1498 CCM 88 HP 09/1998 - 01/2001
1.3 (BJ3P) 1324 CCM 72 HP 01/2001 - 05/2004
323 F/P Mk VI Hatchback (BJ)
Description Cylinder Capacity Horse Power Year
1.3 16V (BJ3P, BJ14) 1324 CCM 73 HP 09/1998 - 01/2001
1.5 16V (BJ5W) 1498 CCM 88 HP 09/1998 - 01/2001
1.4 (BJ3P) 1324 CCM 72 HP 01/2001 - 05/2004
1.6 (BJ10M) 1598 CCM 98 HP 01/2001 - 05/2004

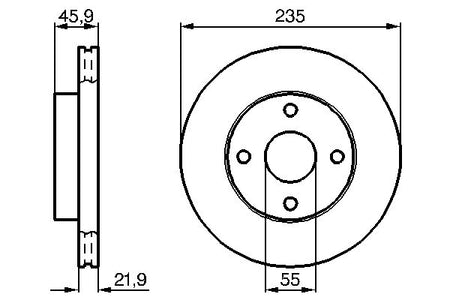

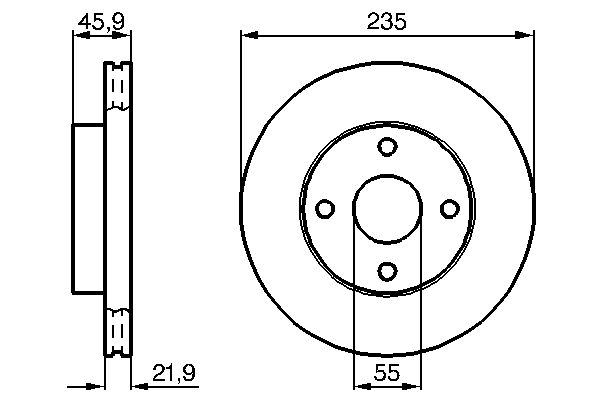

The Bosch 0986478787 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 235 mm outer diameter, 22 mm brake disc thickness, 20 mm minimum thickness, and vented and internally vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 235
Brake Disc Thickness [mm] : 22
Minimum thickness [mm] : 20
Height [mm] : 46.2
Bolt Hole Circle Ø [mm] : 100
Brake Disc Type : Vented
Centering Diameter [mm] : 55
Number of Holes : 4
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13.1
Brake Disc Type : internally vented
  • Vendor BOSCH
  • SKU 0986478787
  • Barcode 3165143376577
  • MAZDA : BJ0Y3325X B26Y3325XA B26Y3325XD
  • BORG & BECK : BBD4226
  • BORG & BECK : BBD4993
  • BREMBO : 09.7824.10
  • DELPHI : BG3508
  • FTE : 9072219
  • HELLA : 8DD 355 104-151
  • MINTEX : MDC743
  • National : NBD1048
  • TEXTAR : 92071500
  • TRW : DF3089
  • TRW : DF4119
  • TRW : DF4120
  • VALEO : 197161
  • BOSCH : BD695
