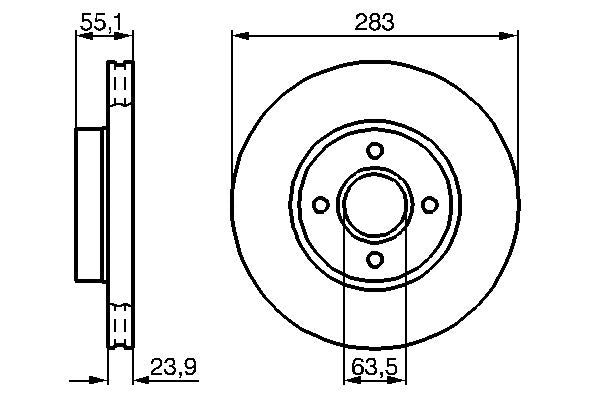

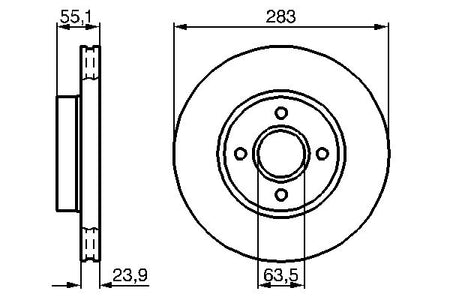

The Bosch 0986478814 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 282.8 mm outer diameter, 24 mm brake disc thickness, 22.5 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Outer Diameter [mm] :
282.8
Brake Disc Thickness [mm] :
24
Minimum thickness [mm] :
22.5
Height [mm] :
55.1
Bolt Hole Circle Ø [mm] :
107.95
Brake Disc Type :
Vented
Centering Diameter [mm] :
63.5
Number of Holes :
4
Surface :
Oiled
fulfils ECE standard :
ECE-R90
Bore Diameter up to [mm] :
13.64
- Vendor BOSCH
- SKU 0986478814
- FORD : V88BX1125AA 1637618 1648717 5022665 5023482
- APEC : DSK2492
- BORG & BECK : BBD4954
- BREMBO : 09.A293.10
- MINTEX : MDC638
- National : NBD203
- TRW : DF2630
- BOSCH : BD717
- BOSCH : E1 90 R - 02C0349/0064
