BOSCH

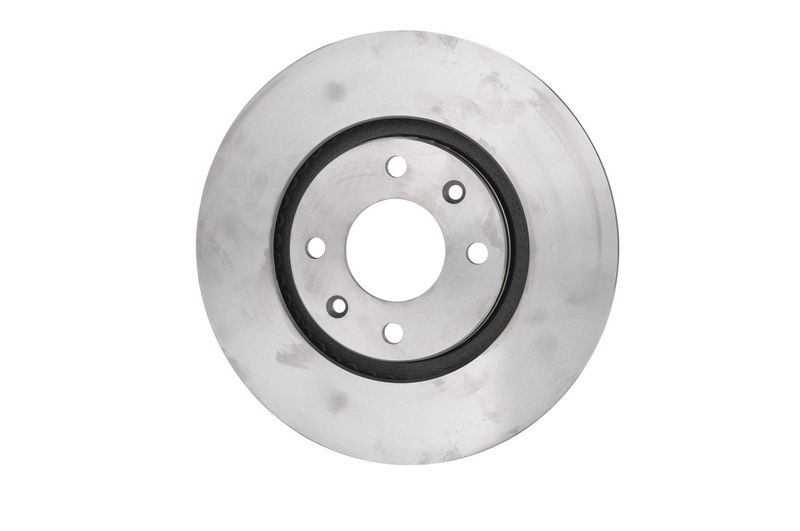

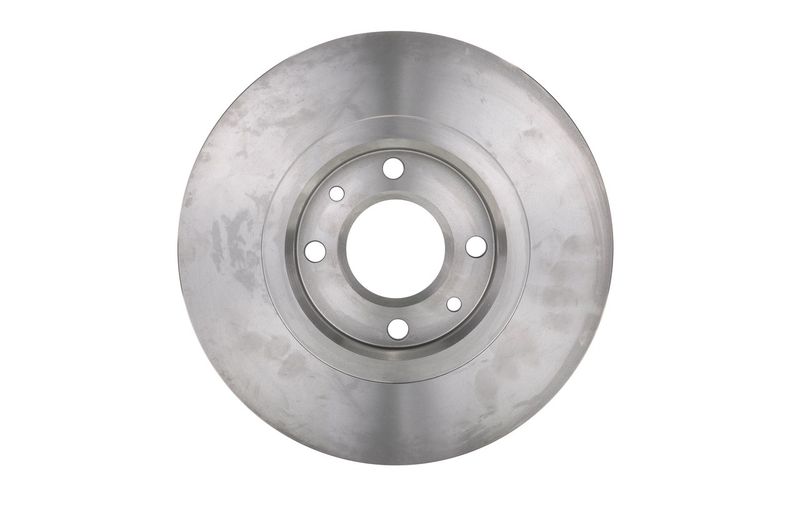

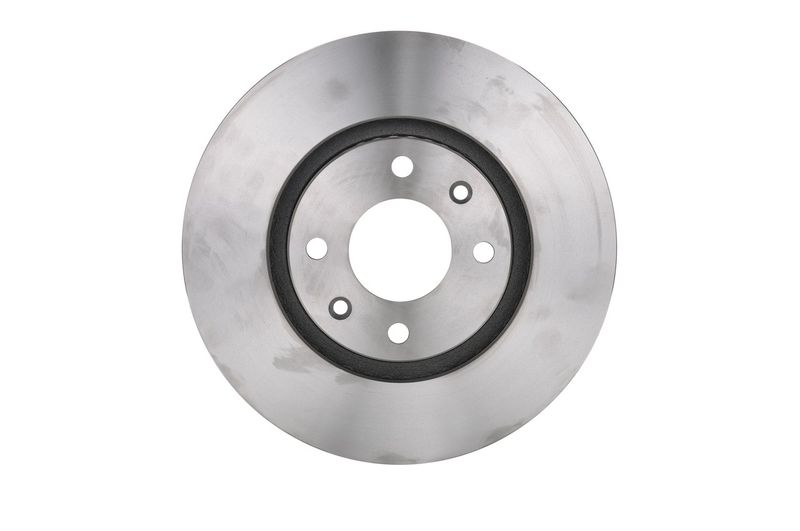

Bosch 0986478831 Brake Disc

SKU: 0986478831

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£71.69 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN

XANTIA (X1_, X2_)

Description	Cylinder Capacity	Horse Power	Year
2.0 Turbo	1998 CCM	147 HP	06/1995 - 04/2003
2.0 i 16V	1998 CCM	132 HP	06/1995 - 04/2003
2.1 Turbo D 12V	2088 CCM	109 HP	06/1995 - 02/1999

XANTIA Estate (X1_, X2_)

Description	Cylinder Capacity	Horse Power	Year
2.0 Turbo	1998 CCM	147 HP	06/1995 - 04/2003
2.1 Turbo D 12V	2088 CCM	109 HP	06/1996 - 02/1999

PEUGEOT

406 (8B)

Description	Cylinder Capacity	Horse Power	Year
2.0 16V	1998 CCM	132 HP	11/1995 - 05/2004
1.9 TD	1905 CCM	90 HP	01/1996 - 05/2004
2.1 TD 12V	2088 CCM	109 HP	01/1996 - 05/2004
2.0 Turbo	1998 CCM	147 HP	04/1996 - 05/2004
1.9 TD	1905 CCM	92 HP	01/1996 - 05/2004
3.0 24V	2946 CCM	190 HP	10/1996 - 05/2004
2.0 HDI 110	1997 CCM	109 HP	06/1998 - 08/2001
2.0 HDI 90	1997 CCM	90 HP	02/1999 - 05/2004
2.0 16V	1997 CCM	135 HP	01/1999 - 08/2000
3.0 V6	2946 CCM	207 HP	03/2000 - 05/2004
2.2	2230 CCM	158 HP	07/2000 - 05/2004

406 Estate (8E/F)

Description	Cylinder Capacity	Horse Power	Year
1.9 TD	1905 CCM	90 HP	10/1996 - 10/2004
2.1 TD 12V	2088 CCM	109 HP	10/1996 - 10/2004
2.0 Turbo	1998 CCM	147 HP	10/1996 - 10/2004
2.0 16V	1998 CCM	132 HP	10/1996 - 10/2004
3.0 24V	2946 CCM	190 HP	10/1996 - 10/2004
2.0 HDI 110	1997 CCM	109 HP	02/1999 - 04/2004
2.0 HDI 90	1997 CCM	90 HP	02/1999 - 10/2004
2.0 16V	1997 CCM	135 HP	01/1999 - 10/2000
3.0 V6	2946 CCM	207 HP	03/2000 - 10/2004
2.2	2230 CCM	158 HP	07/2000 - 10/2004
2.0 16V	1997 CCM	136 HP	10/2000 - 10/2004

406 Coupe (8C)

Description	Cylinder Capacity	Horse Power	Year
2.0 16V	1998 CCM	132 HP	03/1997 - 12/2004
2.0 16V	1997 CCM	135 HP	01/1999 - 10/2000
2.0 16V	1997 CCM	136 HP	10/2000 - 12/2004
2.2 HDI	2179 CCM	133 HP	03/2000 - 12/2004
2.2	2230 CCM	158 HP	03/2002 - 12/2004
2.0 16V	1998 CCM	135 HP	04/1999 - 09/2004

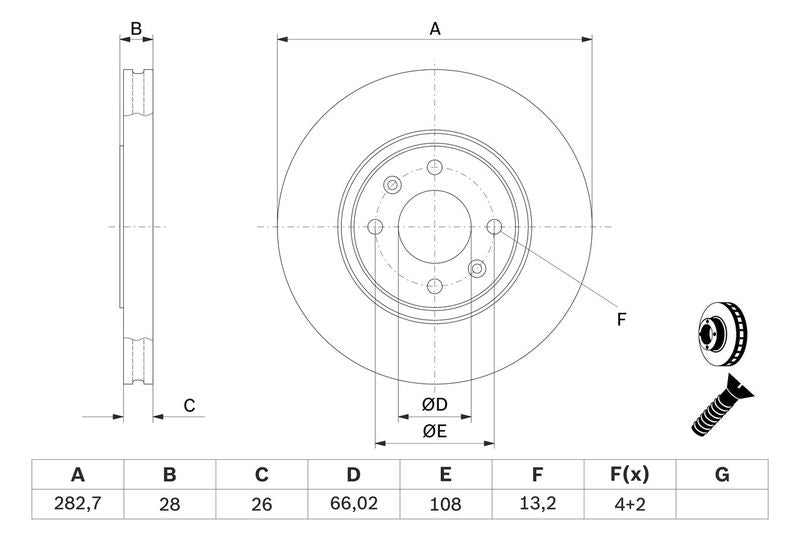

The Bosch 0986478831 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 282.7 mm outer diameter, 26 mm brake disc thickness, 24 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 282.7

Brake Disc Thickness [mm] : 26

Minimum thickness [mm] : 24

Height [mm] : 28

Bolt Hole Circle Ø [mm] : 108

Brake Disc Type : Vented

Centering Diameter [mm] : 66.02

Number of Holes : 4

Surface : Oiled

Machining : High-carbon

Supplementary Article/Supplementary Info 2 : with bolts/screws

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 13.2

APEC : DSK633
APEC : SDK6056
BLUE PRINT : ADP154330
BORG & BECK : BBD5100
BREMBO : 09.6925.14
BREMBO : 09.9616.11
BREMBO : 09.9616.14
DELPHI : BG2872
FEBI BILSTEIN : 10679
FTE : 9072596
FTE : 9082409
HELLA : 8DD 355 105-051
MEYLE : 11-15 521 0007
MINTEX : MDC869
National : NBD799
SKF : VKBD 80412 V2
TEXTAR : 92078700
TEXTAR : 92078703
TRW : DF2796
VALEO : 186533
VALEO : 673210

Bosch 0986478831 Brake Disc
