BOSCH

Bosch 0986478837 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986478837

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£59.32 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

Description	Cylinder Capacity	Horse Power	Year
190	2497 CCM	190 HP	06/2001 - 07/2005
160	2497 CCM	160 HP	06/2001 - 07/2005
2.0 CDTi	1951 CCM	131 HP	11/2002 - 07/2005
1.8 16V	1795 CCM	120 HP	01/2003 - 07/2005
1.8 T 16V	1796 CCM	160 HP	01/2003 - 07/2005
2.0 CDTi	1951 CCM	116 HP	06/2002 - 09/2003

ZT- T

Description	Cylinder Capacity	Horse Power	Year
160	2497 CCM	160 HP	10/2001 - 07/2005
190	2497 CCM	190 HP	10/2001 - 07/2005
2.0 CDTi	1951 CCM	131 HP	11/2002 - 07/2005
1.8 16V	1795 CCM	120 HP	01/2003 - 07/2005
1.8 T 16V	1796 CCM	160 HP	01/2003 - 07/2005
2.0 CDTi	1951 CCM	116 HP	06/2002 - 07/2005

ROVER

75 (RJ)

Description	Cylinder Capacity	Horse Power	Year
1.8	1796 CCM	120 HP	02/1999 - 05/2005
2.0 V6	1997 CCM	150 HP	02/1999 - 05/2005
2.5 V6	2497 CCM	175 HP	02/1999 - 10/2001
2.0 CDT	1951 CCM	115 HP	02/1999 - 05/2005
2.5 V6	2497 CCM	177 HP	10/2001 - 05/2005
2.0 CDTi	1951 CCM	131 HP	02/2003 - 04/2005
1.8 Turbo	1796 CCM	150 HP	05/2003 - 05/2005

75 I Tourer (RJ)

Description	Cylinder Capacity	Horse Power	Year
1.8	1796 CCM	120 HP	08/2001 - 05/2005
2.0 V6	1997 CCM	150 HP	08/2001 - 05/2005
2.5 V6	2497 CCM	177 HP	08/2001 - 05/2005
2.0 CDT	1951 CCM	115 HP	08/2001 - 05/2005
2.0 CDTi	1951 CCM	131 HP	02/2003 - 05/2005
1.8 Turbo	1796 CCM	150 HP	05/2003 - 05/2005

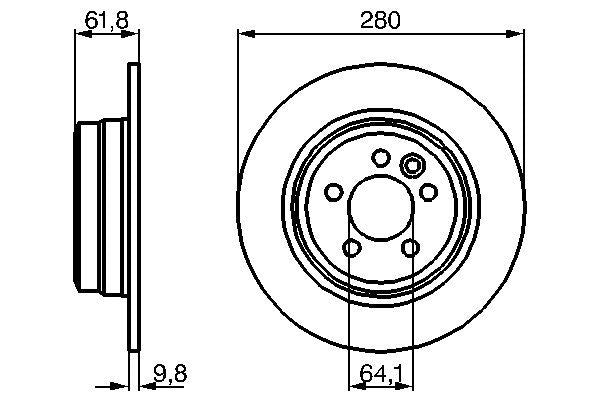

The Bosch 0986478837 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 280 mm outer diameter, 10 mm brake disc thickness, 8 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 280

Brake Disc Thickness [mm] : 10

Minimum thickness [mm] : 8

Height [mm] : 61.9

Bolt Hole Circle Ø [mm] : 100

Brake Disc Type : solid

Centering Diameter [mm] : 64.15

Number of Holes : 5

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 15.3
