BOSCH

Bosch 0986478841 Brake Disc

SKU: 0986478841
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£62.34 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUZUKI
BALENO (EG)
Description Cylinder Capacity Horse Power Year
1.8 GTX (SY418) 1839 CCM 121 HP 03/1996 - 05/2002
1.9 TD (SY419) 1905 CCM 75 HP 04/1998 - 05/2002
BALENO Hatchback (EG)
Description Cylinder Capacity Horse Power Year
1.3 i 16V (SY413) 1298 CCM 85 HP 07/1995 - 05/2002
1.8 GTX (SY418) 1839 CCM 121 HP 03/1996 - 05/2002
1.9 TD (SY419) 1905 CCM 75 HP 04/1998 - 05/2002
BALENO Estate (EG)
Description Cylinder Capacity Horse Power Year
1.8 i 16V (SY418) 1839 CCM 121 HP 08/1996 - 05/2002
1.9 TD (SY419) 1905 CCM 75 HP 04/1998 - 05/2002
LIANA Hatchback
Description Cylinder Capacity Horse Power Year
1.3 1328 CCM 90 HP 07/2001 - 12/2007
1.6 (RH416) 1586 CCM 103 HP 07/2001 - 12/2007
1.6 4WD 1586 CCM 103 HP 07/2001 - 12/2007
1.6 i (RH416) 1586 CCM 106 HP 04/2002 - 12/2007
1.6 4WD 1586 CCM 106 HP 04/2002 - 12/2007
1.4 DDiS 1398 CCM 90 HP 04/2004 - 12/2007
1.6 4WD 1586 CCM 107 HP 01/2005 - 12/2007
1.6 1586 CCM 107 HP 01/2005 - 08/2007
LIANA (ER, RH_)
Description Cylinder Capacity Horse Power Year
1.3 (RH 413) 1328 CCM 90 HP From 03/2002
1.6 (RH416) 1586 CCM 103 HP From 03/2002
1.6 4WD (RH416) 1586 CCM 103 HP From 03/2002
1.6 i (RH416) 1586 CCM 106 HP From 04/2002
1.6 4WD (RH416) 1586 CCM 106 HP From 04/2002
1.4 DDiS (RH 414D) 1398 CCM 90 HP From 04/2004
1.6 (RH416) 1586 CCM 107 HP From 01/2005
1.6 4WD (RH416) 1586 CCM 107 HP 01/2005 - 12/2007

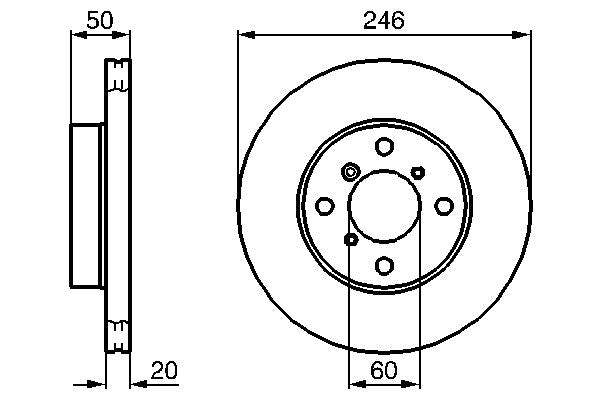

The Bosch 0986478841 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 246 mm outer diameter, 20 mm brake disc thickness, 18 mm minimum thickness, and vented and internally vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 246
Brake Disc Thickness [mm] : 20
Minimum thickness [mm] : 18
Height [mm] : 49.9
Bolt Hole Circle Ø [mm] : 100
Brake Disc Type : Vented
Centering Diameter [mm] : 60
Number of Holes : 4
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.7
Brake Disc Type : internally vented
  • Vendor BOSCH
  • SKU 0986478841
  • Barcode 3165143376430
  • SUZUKI : 55311 62G00 000 55311 62G01 000 55311-62G00 55311-62G01
  • BLUE PRINT : ADK84313
  • BORG & BECK : BBD4230
  • BREMBO : 09.9350.10
  • DELPHI : BG3341
  • FEBI BILSTEIN : 26046
  • FTE : 9072298
  • FTE : 9082347
  • HELLA : 8DD 355 107-391
  • MEYLE : 33-15 521 0011
  • MINTEX : MDC1457
  • SKF : VKBD 80517 V2
  • TEXTAR : 92104500
  • TRW : DF4435
  • VALEO : 197654
  • BOSCH : BD741
