BOSCH

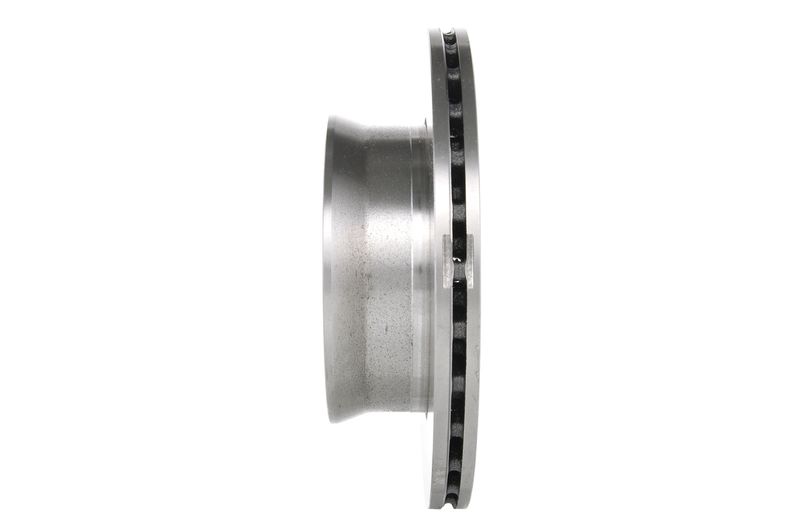

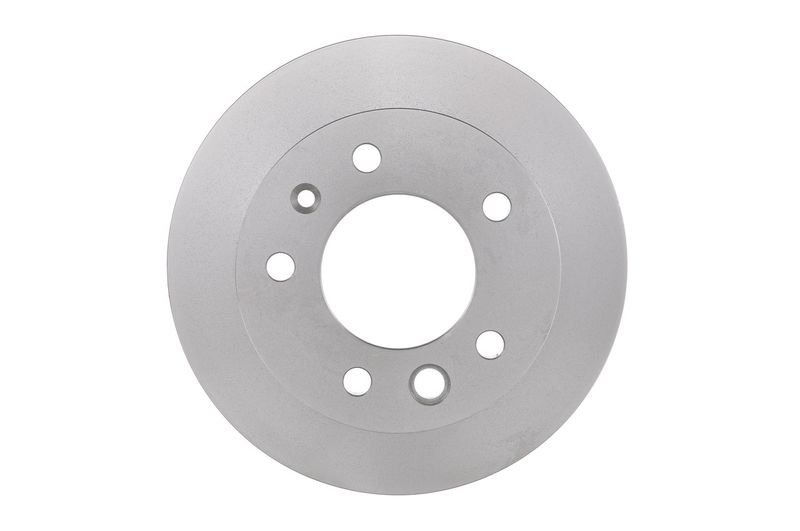

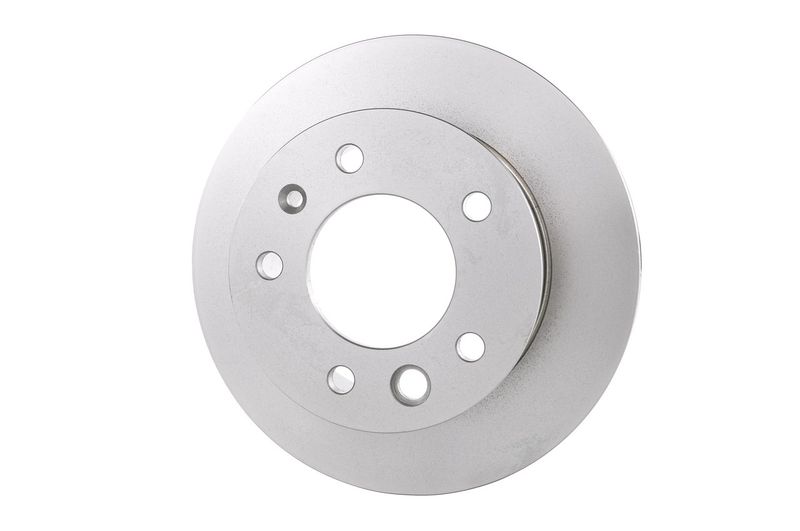

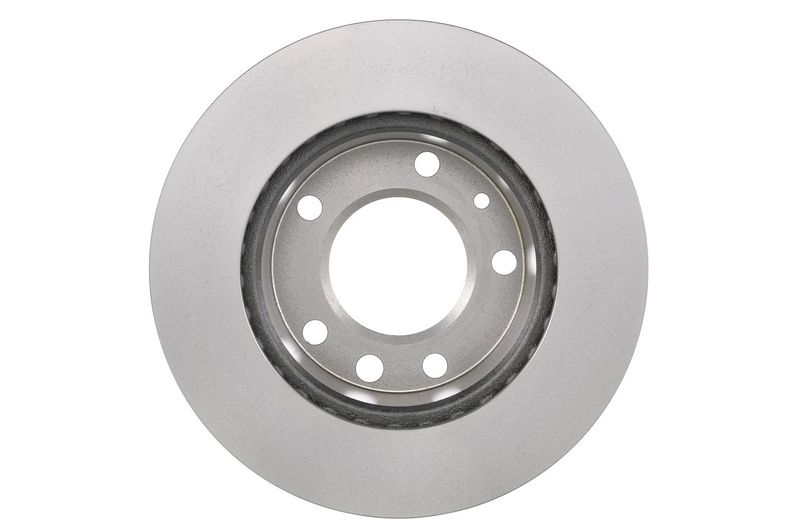

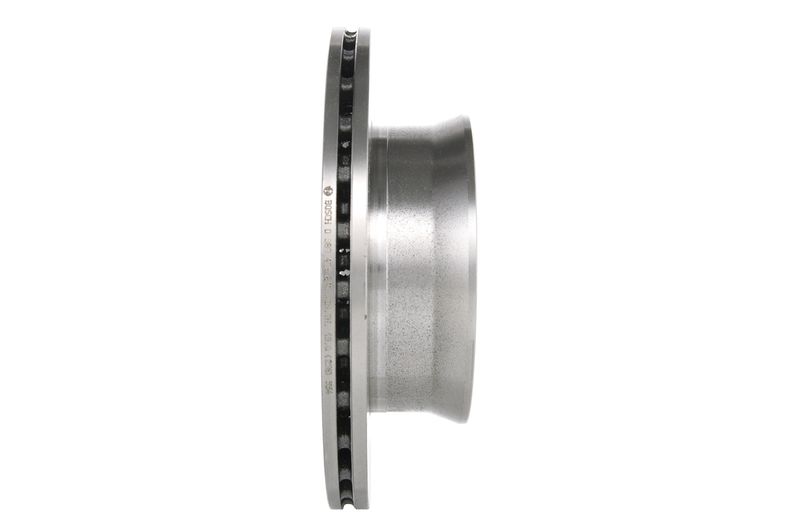

Bosch 0986478849 Brake Disc

SKU: 0986478849

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£73.05 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ

SPRINTER 2-t Platform/Chassis (B901, B902)

Description	Cylinder Capacity	Horse Power	Year
212 D (901.421, 902.412)	2874 CCM	122 HP	02/1995 - 04/2000
208 D (901.311, 901.312, 901.321, 902.311, 902.312,...	2299 CCM	79 HP	01/1995 - 04/2000
214 (902.011, 902.012, 902.611, 902.612)	2295 CCM	143 HP	02/1995 - 05/2006
210 D (901.421, 902.412)	2874 CCM	102 HP	01/1997 - 04/2000
208 D (901.311, 901.312, 901.321, 902.311, 902.312,...	2299 CCM	82 HP	09/1996 - 04/2000
208 CDI (901.611, 901.612, 901.621, 902.611, 902.612,...	2148 CCM	82 HP	04/2000 - 05/2006
211 CDI (901.621, 902.611, 902.612, 902.621, 902.622)	2148 CCM	109 HP	04/2000 - 05/2006
213 CDI (901.621, 902.611, 902.612, 902.621, 902.622)	2148 CCM	129 HP	04/2000 - 05/2006
216 CDI (902.611, 902.612, 902.621, 902.622)	2685 CCM	156 HP	04/2000 - 05/2006
214 NGT (902.012, 902.611, 902.612)	2295 CCM	129 HP	02/1995 - 05/2006

SPRINTER 3-t Platform/Chassis (B903)

Description	Cylinder Capacity	Horse Power	Year
308 D 2.3 (903.311, 903.312, 903.322)	2299 CCM	79 HP	02/1995 - 04/2000
312 D 2.9 (903.411, 903.412, 903.421, 903.422, 903.423)	2874 CCM	122 HP	02/1995 - 04/2000
314 (903.011, 903.012, 903.013, 903.022, 903.612,...	2295 CCM	143 HP	02/1995 - 05/2006
310 D 2.9 (903.411, 903.412, 903.413, 903.421, 903.422,...	2874 CCM	102 HP	01/1997 - 04/2000
308 D 2.3 (903.311, 903.322)	2299 CCM	82 HP	11/1996 - 04/2000
308 CDI (903.611, 903.612, 903.613, 903.621, 903.622,...	2148 CCM	82 HP	04/2000 - 05/2006
311 CDI (903.611, 903.612, 903.613, 903.621, 903.622,...	2148 CCM	109 HP	04/2000 - 05/2006
313 CDI (903.611, 903.612, 903.621, 903.622, 903.623,...	2148 CCM	129 HP	04/2000 - 05/2006
316 CDI (903.611, 903.612, 903.613, 903.621, 903.622,...	2685 CCM	156 HP	04/2000 - 05/2006
314 NGT (903.611, 903.612, 903.613, 903.622, 903.012,...	2295 CCM	129 HP	02/1995 - 05/2006
314 4x4 (903.612, 903.613, 903.622)	2295 CCM	143 HP	02/1995 - 05/2006
311 CDI 4x4 (903.612, 903.613, 903.622, 903.623)	2148 CCM	109 HP	04/2000 - 05/2006
313 CDI 4x4 (903.612, 903.613, 903.622, 903.623)	2148 CCM	129 HP	04/2000 - 05/2006
312 D 2.9 (903.411, 903.412, 903.413, 903.421, 903.422,...	2874 CCM	116 HP	12/1998 - 09/2001

SPRINTER 2-t Bus (B901, B902)

Description	Cylinder Capacity	Horse Power	Year
208 D (901.371, 902.371, 902.372)	2299 CCM	79 HP	02/1995 - 04/2000
212 D (902.471, 902.472)	2874 CCM	122 HP	02/1995 - 04/2000
214 (902.071, 902.072, 902.671, 902.672)	2295 CCM	143 HP	02/1995 - 05/2006
210 D (902.471, 902.472)	2874 CCM	102 HP	03/1997 - 04/2000
208 CDI (901.671, 902.671, 902.672)	2148 CCM	82 HP	04/2000 - 05/2006
211 CDI (902.671, 902.672)	2148 CCM	109 HP	04/2000 - 05/2006
213 CDI (902.671, 902.672)	2148 CCM	129 HP	04/2000 - 05/2006
216 CDI (902.671, 902.672)	2685 CCM	156 HP	04/2000 - 05/2006
214 NGT (902.072, 902.671, 902.672)	2295 CCM	129 HP	02/1995 - 05/2006

SPRINTER 2-t Van (B901, B902)

Description	Cylinder Capacity	Horse Power	Year
210 D (901.461, 901.462, 902.461, 902.462)	2874 CCM	102 HP	01/1997 - 04/2000
208 D (901.361, 901.362, 902.361, 902.362)	2299 CCM	79 HP	02/1995 - 04/2000
212 D (901.461, 901.462, 902.461, 902.462)	2874 CCM	122 HP	02/1995 - 04/2000
214 (901.061, 901.062, 901.661, 901.662, 902.061,...	2295 CCM	143 HP	02/1995 - 05/2006
208 D (901.361, 901.362, 902.361, 902.362)	2299 CCM	82 HP	10/1996 - 04/2000
208 CDI (901.661, 901.662, 902.661, 902.662)	2148 CCM	82 HP	04/2000 - 05/2006
211 CDI (901.661, 901.662, 902.661, 902.662)	2148 CCM	109 HP	04/2000 - 05/2006
213 CDI (901.661, 901.662, 902.661, 902.662)	2148 CCM	129 HP	04/2000 - 05/2006
216 CDI (902.661, 902.662)	2685 CCM	156 HP	04/2000 - 05/2006
214 NGT (901.661, 902.061, 902.062, 902.661, 902.662)	2295 CCM	129 HP	02/1995 - 05/2006

SPRINTER 3-t Bus (B903)

Description	Cylinder Capacity	Horse Power	Year
312 D 2.9 (903.471, 903.472, 903.473)	2874 CCM	122 HP	02/1995 - 04/2000
308 D (903.372, 903.373)	2299 CCM	79 HP	02/1995 - 04/2000
314 (903.071, 903.072, 903.073, 903.671, 903.672,...	2295 CCM	143 HP	02/1995 - 05/2006
312 D 2.9 4x4 (903.473)	2874 CCM	122 HP	05/1997 - 08/2002
310 D 4x4 (903.472, 903.473)	2874 CCM	102 HP	05/1997 - 08/2002
308 CDI (903.671, 903.672, 903.673)	2148 CCM	82 HP	04/2000 - 05/2006
311 CDI (903.671, 903.672)	2148 CCM	109 HP	04/2000 - 05/2006
313 CDI (903.671, 903.672, 903.673)	2148 CCM	129 HP	04/2000 - 05/2006
316 CDI (903.671, 903.672, 903.673)	2685 CCM	156 HP	04/2000 - 05/2006
314 NGT (903.072, 903.671, 903.672)	2295 CCM	129 HP	02/1995 - 05/2006
311 CDI 4x4 (903.672, 903.673)	2148 CCM	109 HP	08/2002 - 05/2006
313 CDI 4x4 (903.672, 903.673)	2148 CCM	129 HP	08/2002 - 05/2006
314 4x4 (903.672, 903.673)	2295 CCM	143 HP	02/1995 - 05/2006
310 D (903.471, 903.472, 903.473)	2874 CCM	102 HP	01/1997 - 12/1999

SPRINTER 3-t Van (B903)

Description	Cylinder Capacity	Horse Power	Year
308 D 2.3 (903.361, 903.362, 903.363)	2299 CCM	79 HP	02/1995 - 04/2000
310 D 2.9 (903.461, 903.462, 903.463)	2874 CCM	102 HP	02/1995 - 04/2000
314 (903.061, 903.062, 903.063, 903.661, 903.662)	2295 CCM	143 HP	02/1995 - 05/2006
312 D 2.9 (903.461, 903.462, 903.463)	2874 CCM	122 HP	02/1995 - 04/2000
308 CDI (903.661, 903.662, 903.663)	2148 CCM	82 HP	04/2000 - 05/2006
311 CDI (903.661, 903.662, 903.663)	2148 CCM	109 HP	04/2000 - 05/2006
313 CDI (903.663, 903.662, 903.661)	2148 CCM	129 HP	04/2000 - 05/2006
316 CDI (903.661, 903.662, 903.663)	2685 CCM	156 HP	04/2000 - 05/2006
314 NGT (903.661, 903.061, 903.062, 903.063, 903.662)	2295 CCM	129 HP	02/1995 - 05/2006
314 4x4 (903.661, 903.662, 903.663)	2295 CCM	143 HP	02/1995 - 05/2006
311 CDI 4x4 (903.662, 903.663)	2148 CCM	109 HP	08/2002 - 05/2006
313 CDI 4x4 (903.662, 903.663)	2148 CCM	129 HP	08/2002 - 05/2006
312 D 2.9 4x4 (903.461, 903.462)	2874 CCM	122 HP	05/1997 - 08/2002
308 D 2.3 (903.361)	2299 CCM	82 HP	02/1995 - 04/2000

SPRINTER 4-t Platform/Chassis (B904)

Description	Cylinder Capacity	Horse Power	Year
414 (904.012, 904.013, 904.612, 904.613)	2295 CCM	143 HP	02/1995 - 05/2006
414 4x4 (904.012, 904.013, 904.612, 904.613)	2295 CCM	143 HP	05/1997 - 05/2006
408 CDI	2148 CCM	82 HP	04/2000 - 05/2006
411 CDI	2148 CCM	109 HP	04/2000 - 05/2006
411 CDI 4x4	2148 CCM	109 HP	04/2000 - 05/2006
413 CDI	2148 CCM	129 HP	04/2000 - 05/2006
413 CDI 4x4	2148 CCM	129 HP	04/2000 - 05/2006
416 CDI	2685 CCM	156 HP	04/2000 - 05/2006
416 CDI 4x4	2685 CCM	156 HP	04/2000 - 05/2006
408 D	2299 CCM	79 HP	02/1996 - 05/2006
410 D	2874 CCM	102 HP	02/1996 - 05/2006
410 D 4x4	2874 CCM	102 HP	05/1997 - 05/2006
412 D	2874 CCM	115 HP	02/1996 - 05/2006
412 D 4x4	2874 CCM	115 HP	05/1997 - 05/2006
412 D	2874 CCM	122 HP	02/1996 - 05/2006

SPRINTER 4-t Van (B904)

Description	Cylinder Capacity	Horse Power	Year
414 (904.062, 904.063, 904.662, 904.663)	2295 CCM	143 HP	02/1996 - 05/2006
414 4x4 (904.062, 904.063, 904.662, 904.663)	2295 CCM	143 HP	05/1997 - 05/2006
408 CDI	2148 CCM	82 HP	04/2000 - 05/2006
411 CDI	2148 CCM	109 HP	04/2000 - 05/2006
413 CDI	2148 CCM	129 HP	04/2000 - 05/2006
416 CDI	2685 CCM	156 HP	04/2000 - 05/2006
411 CDI 4x4	2148 CCM	109 HP	04/2000 - 05/2006
413 CDI 4x4	2148 CCM	129 HP	04/2000 - 05/2006
416 CDI 4x4	2685 CCM	156 HP	04/2000 - 05/2006
408 D	2299 CCM	79 HP	02/1996 - 05/2006
410 D	2874 CCM	102 HP	02/1996 - 05/2006
410 D 4x4	2874 CCM	102 HP	05/1997 - 05/2006
412 D	2874 CCM	115 HP	02/1996 - 05/2006
412 D 4x4	2874 CCM	115 HP	05/1997 - 05/2006
412 D	2874 CCM	122 HP	02/1996 - 05/2006

SPRINTER 4-t Bus (B904)

Description	Cylinder Capacity	Horse Power	Year
414 (904.662, 904.663)	2295 CCM	143 HP	02/1996 - 05/2006
408 CDI (904.662, 904.663)	2148 CCM	82 HP	04/2000 - 05/2006
411 CDI (904.662, 904.663)	2148 CCM	109 HP	04/2000 - 05/2006
413 CDI (904.663, 904.662)	2148 CCM	129 HP	04/2000 - 05/2006
416 CDI (904.662, 904.663)	2685 CCM	156 HP	04/2000 - 05/2006

SPRINTER CLASSIC 3,5-t Van (B909)

Description	Cylinder Capacity	Horse Power	Year
311 CDI (909.632, 909.633)	2148 CCM	109 HP	From 09/2013

SPRINTER CLASSIC 4,6-t Bus (B909)

Description	Cylinder Capacity	Horse Power	Year
411 CDI (909.843)	2148 CCM	109 HP	From 09/2013

VARIO Platform/Chassis (B670, B668, B667)

Description	Cylinder Capacity	Horse Power	Year
512 D (667.321, 667.322, 667.323)	2874 CCM	122 HP	09/1996 - 12/2010

VARIO Van (B667, B670, B668)

Description	Cylinder Capacity	Horse Power	Year
512 D (667.351, 667.352, 667.353)	2874 CCM	122 HP	09/1996 - 12/2010

LT Mk II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM)

Description	Cylinder Capacity	Horse Power	Year
2.5 SDI	2461 CCM	75 HP	09/1996 - 07/2006
2.8 TDI	2799 CCM	125 HP	07/1997 - 01/2002
2.3	2295 CCM	143 HP	06/1996 - 07/2006
2.5 TDI	2461 CCM	102 HP	06/1996 - 08/1999
2.5 TDI	2461 CCM	90 HP	05/1999 - 07/2006
2.5 TDI	2461 CCM	109 HP	05/1999 - 07/2006
2.8 TDI	2799 CCM	130 HP	01/1999 - 07/2006
2.5 TDI	2461 CCM	83 HP	05/2001 - 07/2006
2.5 TDI	2461 CCM	95 HP	05/2001 - 07/2006
2.8 TDI	2799 CCM	158 HP	04/2002 - 07/2006

LT Mk II Bus (2DB, 2DE, 2DK)

Description	Cylinder Capacity	Horse Power	Year
2.3	2295 CCM	143 HP	05/1996 - 07/2006
2.5 SDI	2461 CCM	75 HP	07/1996 - 07/2006
2.5 TDI	2461 CCM	102 HP	05/1996 - 08/1999
2.5 TDI	2461 CCM	90 HP	05/1999 - 07/2006
2.5 TDI	2461 CCM	109 HP	05/1999 - 07/2006
2.5 TDI	2461 CCM	83 HP	05/2001 - 07/2006
2.5 TDI	2461 CCM	95 HP	05/2001 - 07/2006
2.8 TDI	2799 CCM	158 HP	05/2001 - 06/2006
2.8 TDI	2798 CCM	131 HP	01/1999 - 01/2002
2.8 TDI	2798 CCM	125 HP	07/1997 - 05/2003

LT Mk II Van (2DA, 2DD, 2DH)

Description	Cylinder Capacity	Horse Power	Year
2.3	2295 CCM	143 HP	05/1996 - 07/2006
2.5 SDI	2461 CCM	75 HP	09/1996 - 07/2006
2.5 TDI	2461 CCM	102 HP	05/1996 - 08/1999
2.8 TDI	2799 CCM	125 HP	07/1997 - 01/2002
2.5 TDI	2461 CCM	90 HP	05/1999 - 07/2006
2.5 TDI	2461 CCM	109 HP	05/1999 - 07/2006
2.8 TDI	2799 CCM	130 HP	01/1999 - 07/2006
2.5 TDI	2461 CCM	83 HP	05/2001 - 07/2006
2.5 TDI	2461 CCM	95 HP	05/2001 - 07/2006
2.8 TDI	2799 CCM	158 HP	04/2002 - 07/2006

The Bosch 0986478849 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 276 mm outer diameter, 22 mm brake disc thickness, 19 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

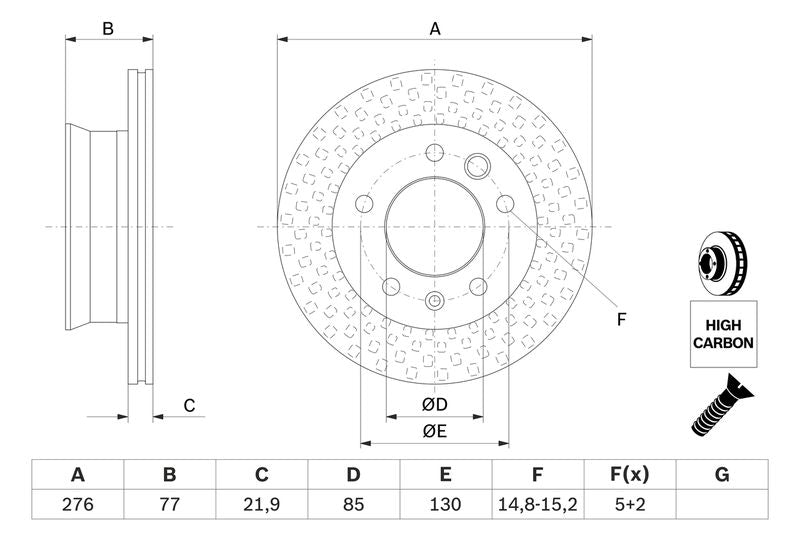

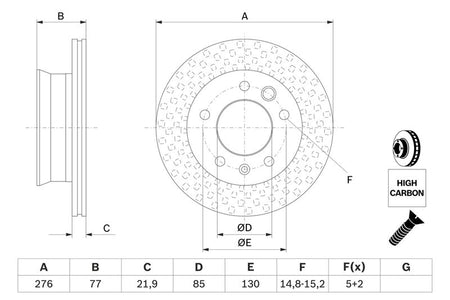

Outer Diameter [mm] : 276

Brake Disc Thickness [mm] : 22

Minimum thickness [mm] : 19

Height [mm] : 77

Bolt Hole Circle Ø [mm] : 130

Brake Disc Type : Vented

Centering Diameter [mm] : 85

Number of Holes : 5

Surface : Oiled

Machining : High-carbon

Supplementary Article/Supplementary Info 2 : with bolts/screws

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 15

APEC : DSK771
APEC : SDK6104
BLUE PRINT : ADU174360
BORG & BECK : BBD5134
BREMBO : 09.7314.14
BREMBO : 09.7314.24
BREMBO : 09.9618.14
BREMBO : 09.9618.24
DELPHI : BG3236
Fahren : FBD6104
FEBI BILSTEIN : 07517
FEBI BILSTEIN : 22857
FTE : 9072023
FTE : 9082045
HELLA : 8DD 355 111-001
MEYLE : 015 521 2032
MEYLE : 083 521 2032/PD
MINTEX : MDC1037
MINTEX : MDC1037C
NAPA : NBD5434
National : NBD790
SKF : VKBD 80174 V2
TEXTAR : 92105400
TEXTAR : 92131500
TEXTAR : 92131503
TRW : DF2790
VALEO : 186774
VALEO : 187041

Bosch 0986478849 Brake Disc
