BOSCH

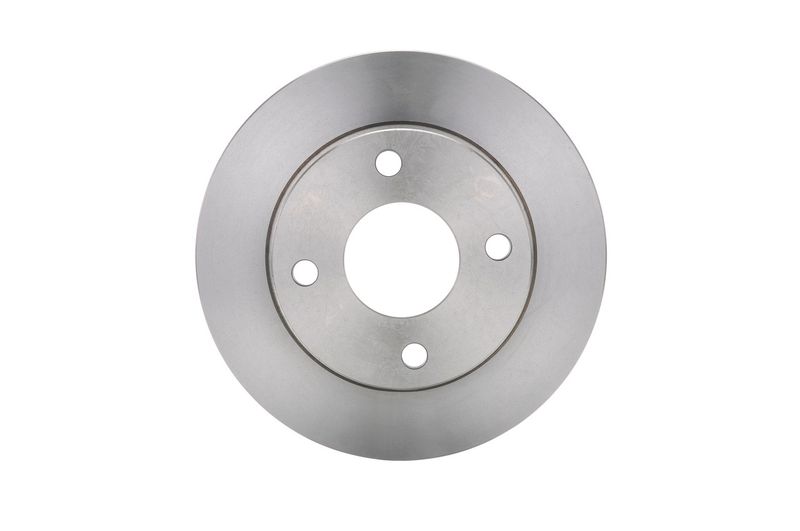

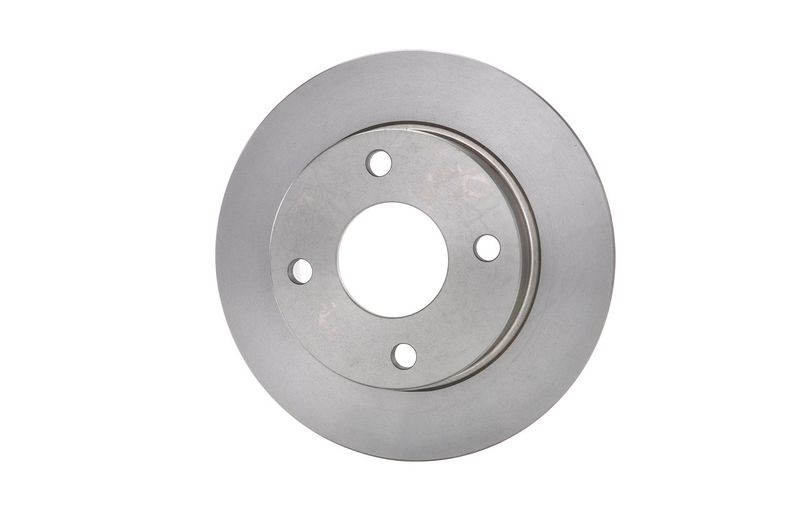

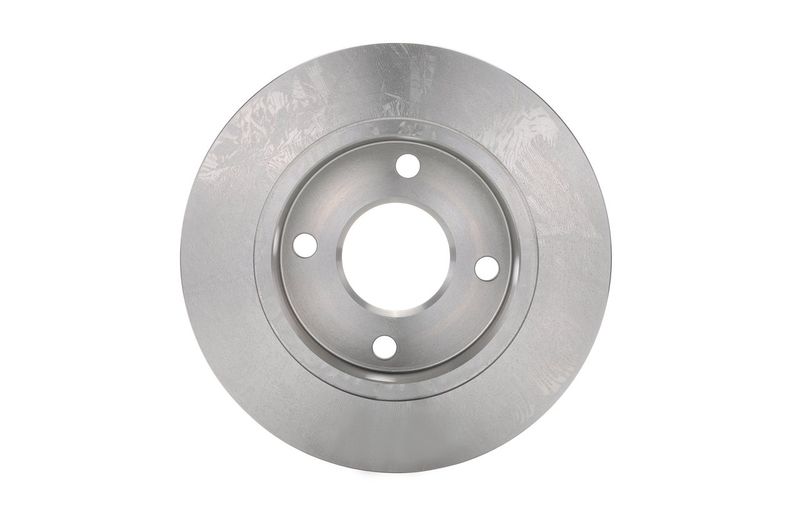

Bosch 0986478856 Brake Disc

SKU: 0986478856

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£30.55 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD

COURIER Hatchback Van (JV_)

Description	Cylinder Capacity	Horse Power	Year
D 1.8	1753 CCM	60 HP	05/1998 - 04/2002
1.4	1388 CCM	90 HP	08/1998 - 04/2002

FIESTA Hatchback Van (FVD)

Description	Cylinder Capacity	Horse Power	Year
1.8 D (FVJ)	1753 CCM	60 HP	03/1989 - 12/1995

FIESTA Mk III (GFJ)

Description	Cylinder Capacity	Horse Power	Year
1.8 D	1753 CCM	60 HP	03/1989 - 12/1995

FIESTA Mk IV (JA_, JB_)

Description	Cylinder Capacity	Horse Power	Year
1.3 i	1299 CCM	50 HP	08/1995 - 01/2002
1.3 i	1299 CCM	60 HP	08/1995 - 01/2002
1.25 i 16V	1242 CCM	75 HP	08/1995 - 01/2002
1.8 D	1753 CCM	60 HP	08/1995 - 04/2000
1.4 i 16V	1388 CCM	90 HP	04/1996 - 01/2002

KA (RB_)

Description	Cylinder Capacity	Horse Power	Year
1.3 i	1299 CCM	50 HP	09/1996 - 10/2002
1.3 i	1299 CCM	60 HP	09/1996 - 11/2008
1.3 i	1299 CCM	49 HP	06/1998 - 11/2008

MAZDA

121 III (JASM, JBSM)

Description	Cylinder Capacity	Horse Power	Year
1.3	1299 CCM	50 HP	03/1996 - 04/2003
1.3	1299 CCM	60 HP	03/1996 - 04/2003
1.25	1242 CCM	75 HP	03/1996 - 04/2003
1.8 D	1753 CCM	60 HP	03/1996 - 04/2003

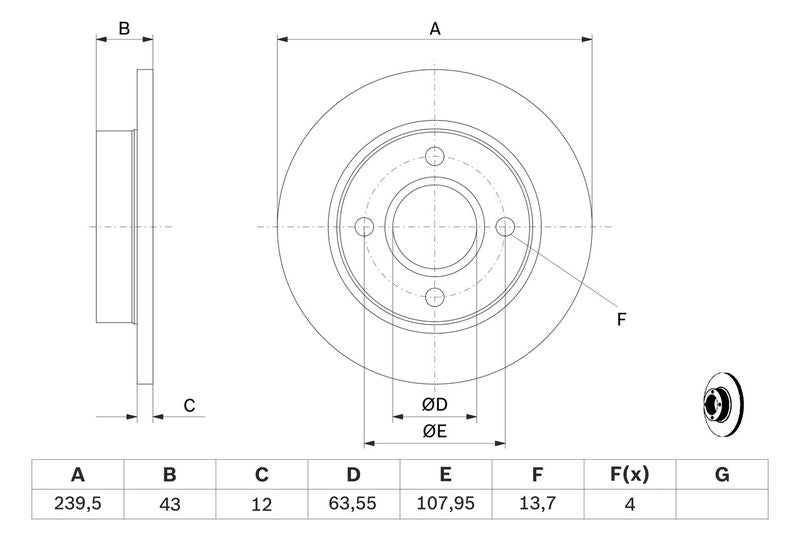

The Bosch 0986478856 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 239.5 mm outer diameter, 12 mm brake disc thickness, 10 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 239.5

Brake Disc Thickness [mm] : 12

Minimum thickness [mm] : 10

Height [mm] : 43

Bolt Hole Circle Ø [mm] : 107.95

Brake Disc Type : solid

Centering Diameter [mm] : 63.55

Number of Holes : 4

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 13.7

APEC : DSK253
APEC : SDK6067
BLUE PRINT : ADF124320
BORG & BECK : BBD4077
BREMBO : 08.6903.14
BREMBO : 08.6903.75
DELPHI : BG3055
FEBI BILSTEIN : 10518
FTE : 9072133
FTE : 9082022
HELLA : 8DD 355 104-631
MEYLE : 715 521 7007
MINTEX : MDC844
National : NBD689
SKF : VKBD 80076 S2
TEXTAR : 92075303
TRW : DF2752
VALEO : 186529
VALEO : 673081

Bosch 0986478856 Brake Disc
