Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs
Bosch 0986478875 Brake Disc - 1
Bosch 0986478875 Brake Disc - 2
Bosch 0986478875 Brake Disc - 3
Bosch 0986478875 Brake Disc - 4
Bosch 0986478875 Brake Disc - 5
Bosch 0986478875 Brake Disc - 6
Bosch 0986478875 Brake Disc - 1
Bosch 0986478875 Brake Disc - 2
Bosch 0986478875 Brake Disc - 3
Bosch 0986478875 Brake Disc - 4
Bosch 0986478875 Brake Disc - 5
Bosch 0986478875 Brake Disc - 6
BOSCH

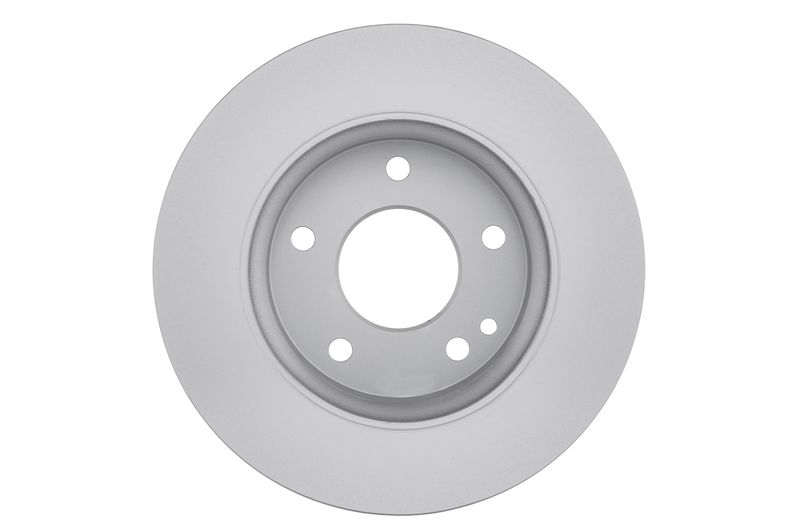

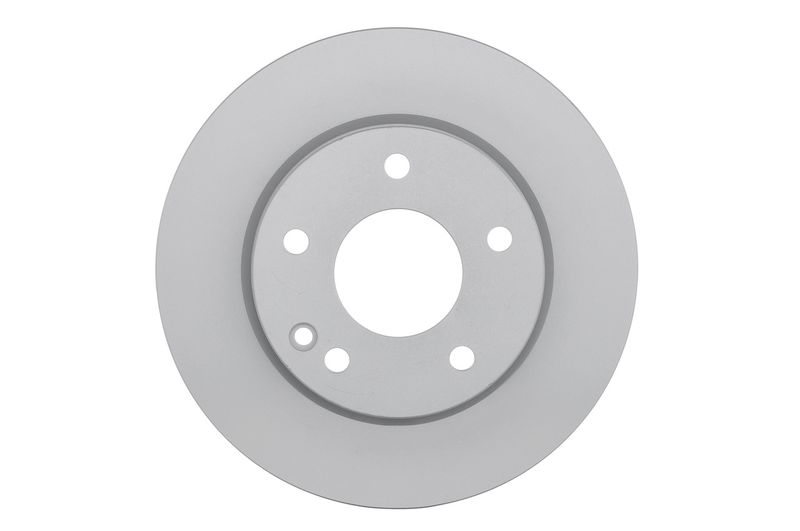

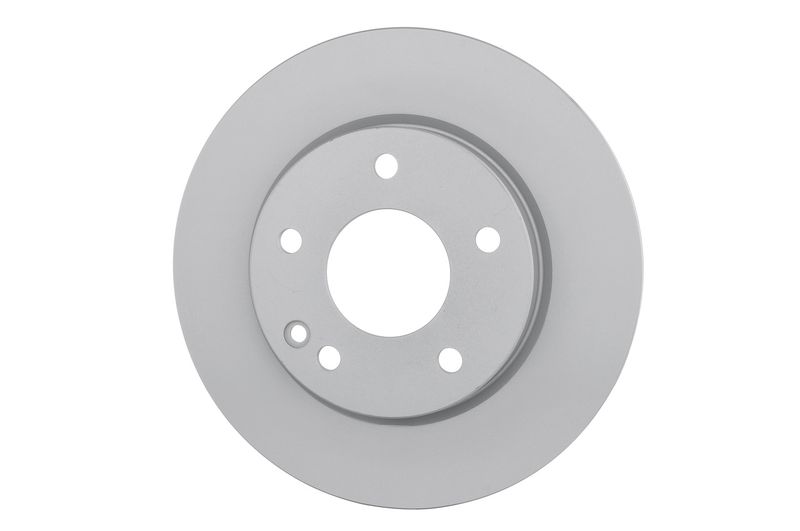

Bosch 0986478875 Brake Disc

5.0/5 65 reviews
SKU: 0986478875

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£48.23 inc. VAT

Complete the job

APEC — Aerosol Brake cleaner 600ml
£6.92

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

MERCEDES-BENZ
A-CLASS (W168)
Description Cylinder Capacity Horse Power Year
A 140 (168.031, 168.131) 1397 CCM 82 HP 07/1997 - 08/2004
A 160 (168.033, 168.133) 1598 CCM 102 HP 07/1997 - 08/2004
A 170 CDI (168.008) 1689 CCM 90 HP 07/1998 - 02/2001
A 190 (168.032, 168.132) 1898 CCM 125 HP 03/1999 - 08/2004
A 170 CDI (168.009, 168.109) 1689 CCM 95 HP 02/2001 - 08/2004
A 140 (168.031, 168.131) 1598 CCM 82 HP 01/2001 - 08/2004

The Bosch 0986478875 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 259.9 mm outer diameter, 22 mm brake disc thickness, 19.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

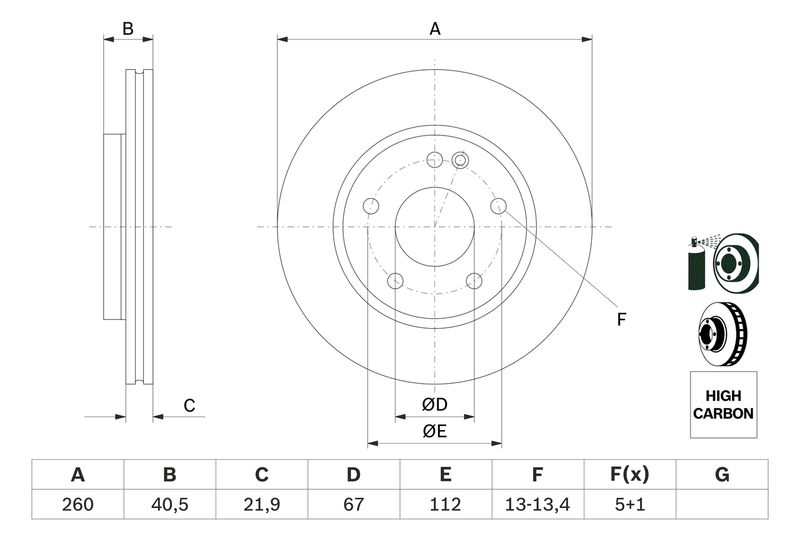

Function : Brake Disc
Outer Diameter [mm] : 259.9
Brake Disc Thickness [mm] : 22
Minimum thickness [mm] : 19.4
Height [mm] : 40.7
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : Vented
Centering Diameter [mm] : 67
Number of Holes : 5
Surface : Coated
Machining : Alloyed/High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13.2
  • Vendor BOSCH
  • SKU 0986478875
  • Barcode 3165143118160
  • MERCEDES-BENZ : A 168 421 02 12 A 168 421 08 12 168 421 02 12 168 421 08 12
  • APEC : DSK813
  • APEC : SDK6197
  • BLUE PRINT : ADU174326
  • BORG & BECK : BBD4110
  • BREMBO : 09.7359.20
  • BREMBO : 09.7359.21
  • BREMBO : 09.7359.76
  • DELPHI : BG3395
  • FEBI BILSTEIN : 17747
  • FEBI BILSTEIN : 22994
  • FTE : 9072104
  • FTE : 9082148
  • FTE : 9082545
  • HELLA : 8DD 355 105-991
  • MEYLE : 015 521 2030
  • MINTEX : MDC1035
  • National : NBD920
  • SKF : VKBD 80119 V2
  • TEXTAR : 92091303
  • TRW : DF4035
  • VALEO : 186573
  • VALEO : 673146
  • BOSCH : BD774
  • BOSCH : E1 90 R -02C0348/0266
