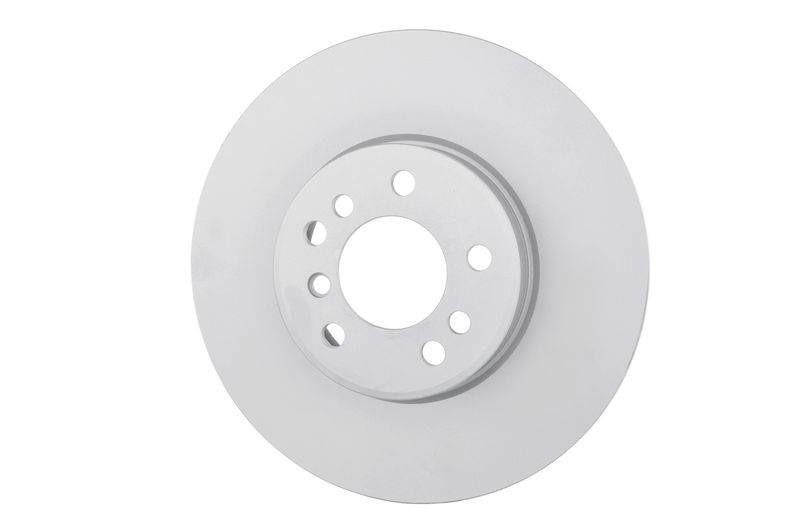

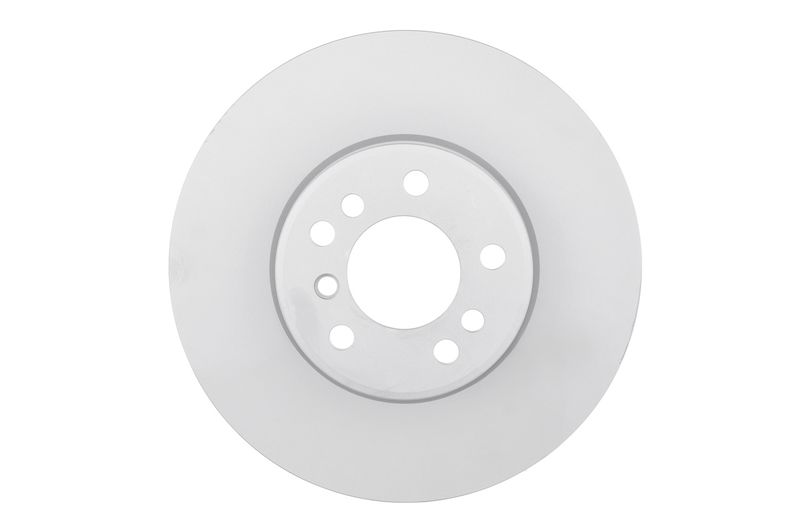

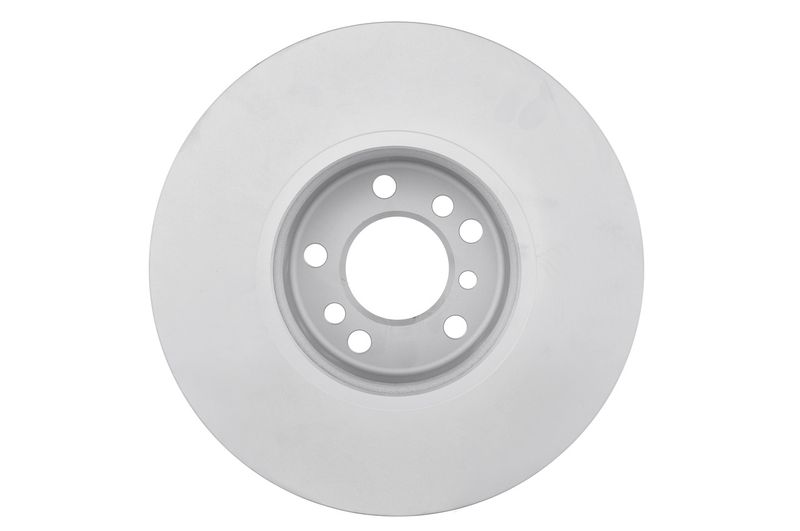

Bosch 0986478974 Brake Disc
Your selected vehicle
Regular price
£64.86
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986478974 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 332 mm outer diameter, 30 mm brake disc thickness, 28.4 mm minimum thickness, and vented and internally vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Outer Diameter [mm] :
332
Brake Disc Thickness [mm] :
30
Minimum thickness [mm] :
28.4
Height [mm] :
62.1
Bolt Hole Circle Ø [mm] :
120
Brake Disc Type :
Vented
Centering Diameter [mm] :
75
Number of Holes :
5
Surface :
Coated
Machining :
High-carbon
fulfils ECE standard :
ECE-R90
Bore Diameter up to [mm] :
16.7
Brake Disc Type :
internally vented
- Vendor BOSCH
- SKU 0986478974
- APEC : DSK2223
- APEC : SDK6228
- BLUE PRINT : ADB114349
- BLUE PRINT : ADB114357
- BORG & BECK : BBD5729S
- BREMBO : 09.8697.81
- BREMBO : 09.C896.11
- BREMBO : 09.C896.1X
- DELPHI : BG3628
- Fahren : FBD6228
- FEBI BILSTEIN : 21177
- FEBI BILSTEIN : 43990
- FTE : 9071068
- HELLA : 8DD 355 127-631
- MEYLE : 315 521 0019
- MEYLE : 383 521 0019/PD
- MINTEX : MDC1131
- NAPA : NBD5730
- National : NBD1080
- SKF : VKBD 80328 V1
- TEXTAR : 92107200
- TEXTAR : 92107205
- TRW : DF4187S
- VALEO : 186808
- VALEO : 672828
- BOSCH : BD872
- BOSCH : E1 90R-02C0074/1656
