BOSCH

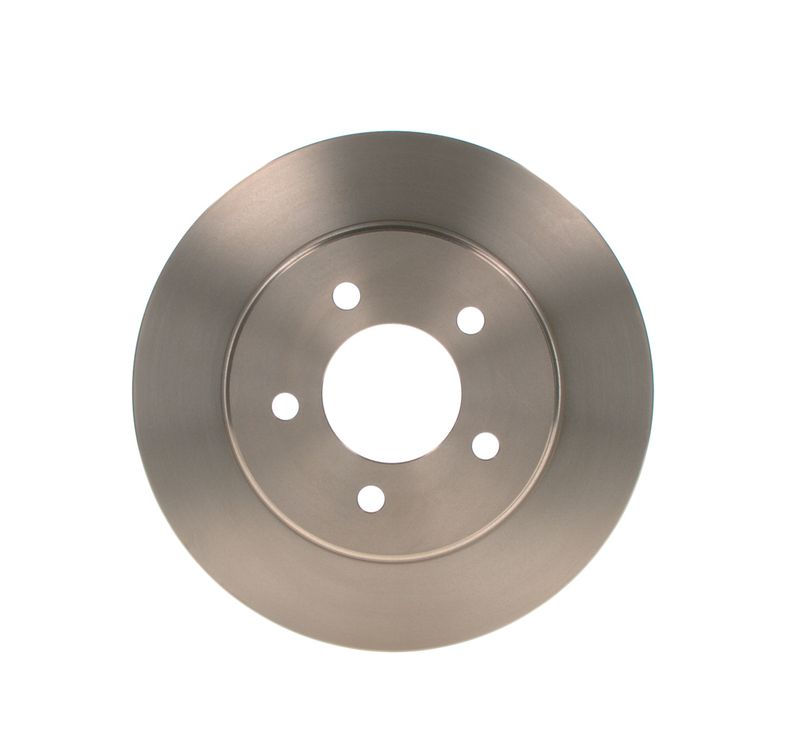

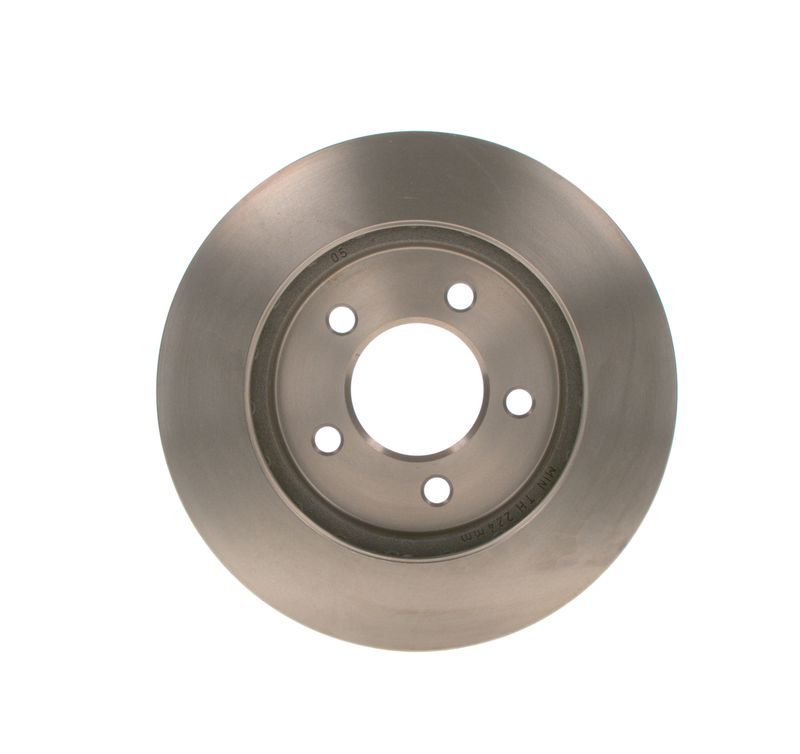

Bosch 0986478983 Brake Disc

SKU: 0986478983
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£64.86 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CHRYSLER
TACUMA Mk II (GS_, NS_)
Description Cylinder Capacity Horse Power Year
2.4 i 2429 CCM 151 HP 01/1995 - 03/2001
3.3 i 3301 CCM 158 HP 01/1995 - 03/2001
3.8 i AWD 3778 CCM 166 HP 01/1995 - 03/2001
2.5 TD 2499 CCM 116 HP 01/1995 - 03/2001
2.0 i 1995 CCM 133 HP 01/1995 - 03/2001
3.8 i AWD 3778 CCM 178 HP 01/1995 - 03/2001
3.0 2972 CCM 152 HP 01/1995 - 03/2001
VOYAGER III VAN (GS_)
Description Cylinder Capacity Horse Power Year
2.4 (GSHY52) 2429 CCM 151 HP 01/1995 - 03/2001
3.3 (GSHY52) 3301 CCM 158 HP 01/1995 - 03/2001
3.8 AWD (GSHC52) 3778 CCM 166 HP 10/1995 - 09/1997
3.8 AWD (GSHC52) 3778 CCM 178 HP 10/1997 - 03/2001
2.5 TD (GSHY52, GSHZ52) 2499 CCM 116 HP 01/1995 - 03/2001
DODGE
CARAVAN
Description Cylinder Capacity Horse Power Year
2.4 i 2429 CCM 151 HP 01/1995 - 03/2001
3.0 2972 CCM 152 HP 01/1995 - 06/2000
3.3 i 3301 CCM 158 HP 01/1995 - 03/2001
3.8 i AWD 3778 CCM 166 HP 01/1995 - 03/2001
3.8 i AWD 3778 CCM 178 HP 01/1995 - 03/2001
2.5 TD 2499 CCM 116 HP 01/1995 - 03/2001
3.8 i 3778 CCM 166 HP 01/1995 - 03/2001
3.8 i 3778 CCM 178 HP 01/1995 - 03/2001

The Bosch 0986478983 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 282 mm outer diameter, 24 mm brake disc thickness, 22.4 mm minimum thickness, and vented and internally vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

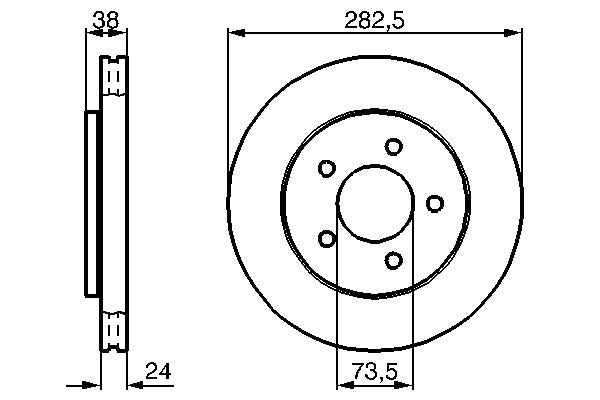

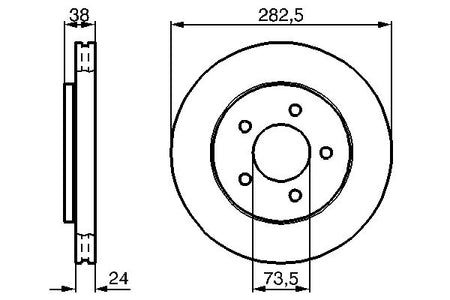

Function : Brake Disc
Outer Diameter [mm] : 282
Brake Disc Thickness [mm] : 24
Minimum thickness [mm] : 22.4
Height [mm] : 38
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 73.5
Number of Holes : 5
Surface : Oiled
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 14
Brake Disc Type : internally vented
  • Vendor BOSCH
  • SKU 0986478983
  • Barcode 4047024095847
  • CHRYSLER : 04721 820 04721 820AE 04815 797 4721 820 4721 820AE 4815 797
  • DODGE : 04721 820AE 04815 797 4721 820AE 4815 797
  • PLYMOUTH : 4815797
  • BLUE PRINT : ADA104303
  • BORG & BECK : BBD4122
  • BREMBO : 09.7367.14
  • DELPHI : BG3383
  • FTE : 9072242
  • HELLA : 8DD 355 107-931
  • MEYLE : 44-15 521 0015/PD
  • MINTEX : MDC1973
  • SKF : VKBD 80906 V2
  • TEXTAR : 92108700
  • TRW : DF4508
  • VALEO : 186730
  • BOSCH : BD880
  • BOSCH : E1 90R-02C0074/0075
