BOSCH

Bosch 0986478984 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986478984

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£42.98 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

SUZUKI

IGNIS I (FH)

Description	Cylinder Capacity	Horse Power	Year
1.3 (HV51, HX51, RG413)	1328 CCM	83 HP	10/2000 - 09/2003
1.3 4WD (RG413)	1328 CCM	83 HP	10/2000 - 09/2003
1.5 Sport (RG415)	1490 CCM	109 HP	12/2003 - 12/2005

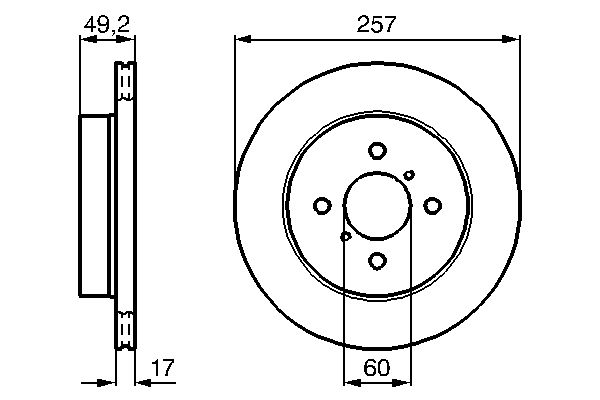

The Bosch 0986478984 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 257 mm outer diameter, 17 mm brake disc thickness, 15 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 257

Brake Disc Thickness [mm] : 17

Minimum thickness [mm] : 15

Height [mm] : 49.3

Bolt Hole Circle Ø [mm] : 100

Brake Disc Type : Vented

Centering Diameter [mm] : 60

Number of Holes : 4

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 12.7
