BOSCH

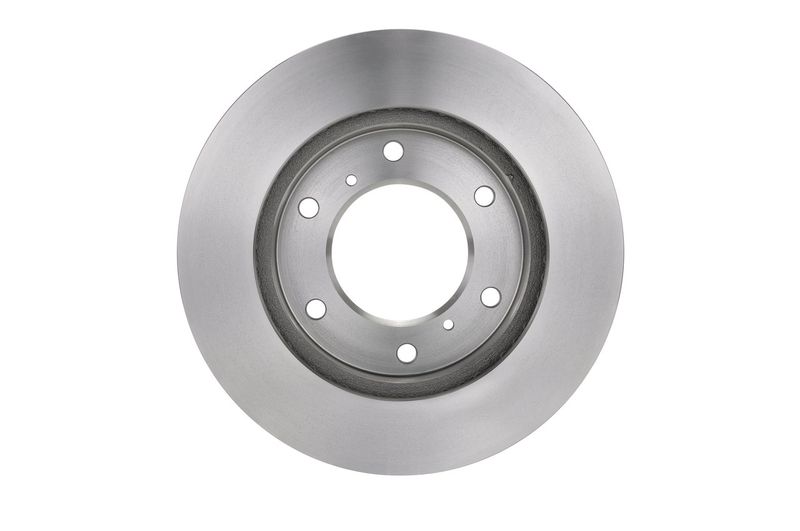

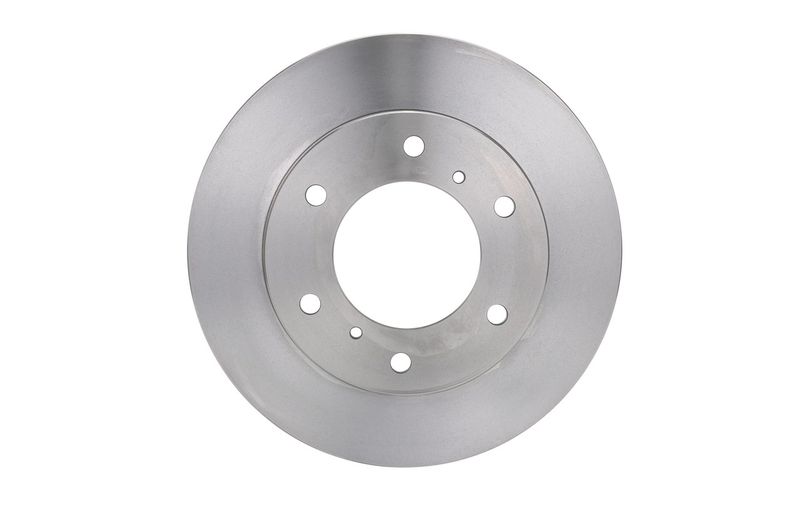

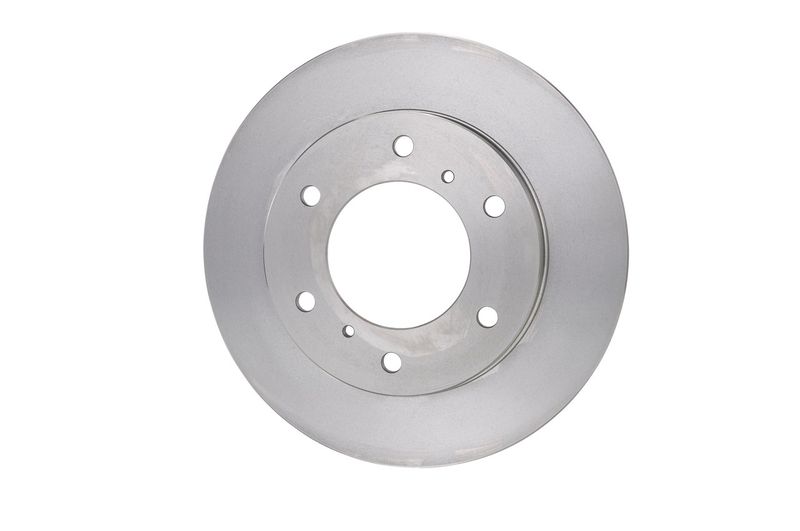

Bosch 0986478990 Brake Disc

SKU: 0986478990

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£70.40 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MITSUBISHI

PAJERO/SHOGUN III (V7_W, V6_W)

Description	Cylinder Capacity	Horse Power	Year
3.2 DI-D (V68W)	3200 CCM	160 HP	04/2000 - 12/2006
3.2 DI-D (V68W, V78W)	3200 CCM	165 HP	04/2000 - 10/2006
2.5 TDi (V64W)	2477 CCM	99 HP	04/2000 - 12/2006
2.5 TDi (V64W, V74W)	2477 CCM	115 HP	09/2001 - 12/2006

PAJERO/SHOGUN Mk III Canvas Top (V6_W, V7_W)

Description	Cylinder Capacity	Horse Power	Year
3.2 DI-D (V68W, V78W)	3200 CCM	165 HP	04/2000 - 12/2006
3.2 DI-D (V68W, V78W)	3200 CCM	160 HP	10/2001 - 12/2006
2.5 TDi (V64W, V74W)	2477 CCM	99 HP	04/2000 - 12/2006
2.5 TDi (V64W, V74W)	2477 CCM	115 HP	09/2001 - 12/2006
3.0 (V73W)	2972 CCM	170 HP	10/2001 - 12/2006

PAJERO/SHOGUN CLASSIC (V2_W, V6_W, V7_W)

Description	Cylinder Capacity	Horse Power	Year
2.5 TD (V24W)	2477 CCM	115 HP	From 07/2001

PAJERO/SHOGUN IV (V8_W, V9_W)

Description	Cylinder Capacity	Horse Power	Year
3.2 DI-D 4WD (V98W, V88W)	3200 CCM	190 HP	From 02/2007
3.0 4WD (V83W, V93W)	2972 CCM	178 HP	From 02/2007
3.8 V6 (V87W, V97W)	3828 CCM	250 HP	From 02/2007
3.2 DI-D (V88W, V98W)	3200 CCM	160 HP	From 02/2007
3.2 DI-D (V88W, V98W)	3200 CCM	170 HP	From 02/2007
3.2 DI-D 4WD (V98W, V88W)	3200 CCM	200 HP	From 01/2009
3.8 V6 (V87W)	3828 CCM	248 HP	From 10/2006
3.2 DI-D	3200 CCM	167 HP	From 02/2007
3.0 4WD	2972 CCM	174 HP	From 08/2014

PAJERO/SHOGUN IV Van (V9_, V8_, V8_V)

Description	Cylinder Capacity	Horse Power	Year
3.2 DI-D	3200 CCM	160 HP	From 11/2006
3.2 TD 4WD (V88V, V98V)	3200 CCM	200 HP	From 01/2010
3.2 DI-D 4WD (V88W, V98W)	3200 CCM	190 HP	From 02/2007

SHOGUN II (V3_W)

Description	Cylinder Capacity	Horse Power	Year
3.2 DiD 4WD	3200 CCM	165 HP	04/2000 - 09/2007
3.2 DiD 4WD	3200 CCM	160 HP	05/2005 - 09/2007

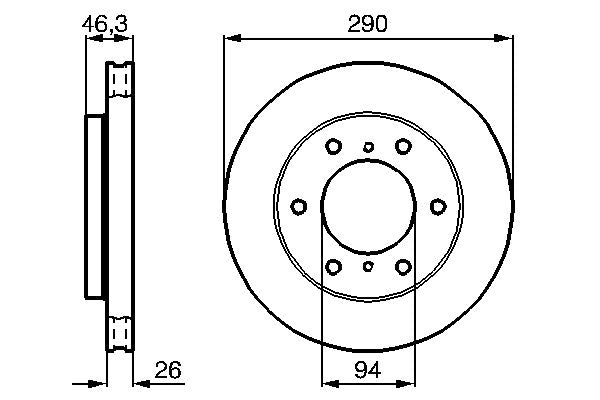

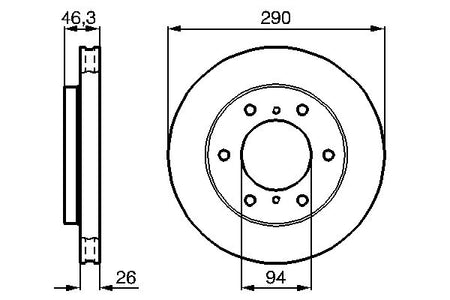

The Bosch 0986478990 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 290 mm outer diameter, 26 mm brake disc thickness, 24.4 mm minimum thickness, and vented and internally vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 290

Brake Disc Thickness [mm] : 26

Minimum thickness [mm] : 24.4

Height [mm] : 46.2

Bolt Hole Circle Ø [mm] : 139.7

Brake Disc Type : Vented

Centering Diameter [mm] : 94

Number of Holes : 6

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 12.6

Brake Disc Type : internally vented

APEC : DSK2198
APEC : SDK6174
BLUE PRINT : ADC443110
BORG & BECK : BBD4357
BORG & BECK : BBD5250
BREMBO : 09.9996.10
BREMBO : 09.9996.11
BREMBO : 09.A911.10
BREMBO : 09.A911.11
DELPHI : BG3812
DELPHI : BG4229
Fahren : FBD6174
FEBI BILSTEIN : 26048
FTE : 9072332
HELLA : 8DD 355 118-631
HELLA : 8DD 355 119-071
MEYLE : 32-15 521 0029
MEYLE : 32-15 521 0029/PD
MINTEX : MDC1576
NAPA : NBD5376
National : NBD1195
SKF : VKBD 80432 V2
TEXTAR : 92128800
TEXTAR : 92128803
TRW : DF4870
VALEO : 186813

Bosch 0986478990 Brake Disc
