BOSCH

Bosch 0986479009 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479009

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock
Orders placed by 17:00 are usually dispatched the same working day
£146.86 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

RENAULT
FLUENCE (L3_)
Description Cylinder Capacity Horse Power Year
Z.E. 95 HP From 02/2012
GRAND SCÉNIC III (JZ0/1_)
Description Cylinder Capacity Horse Power Year
1.5 dCi (JZ09, JZ0D, JZ10, JZ14, JZ1G, JZ29, JZ2C) 1461 CCM 110 HP 04/2009 - 09/2016
1.5 dCi (JZ02, JZ0R) 1461 CCM 95 HP 11/2010 - 09/2016
1.6 dCi (JZ00, JZ12) 1598 CCM 130 HP 04/2011 - 09/2016
1.6 16V Bifuel (JZ1Y) 1598 CCM 110 HP 02/2009 - 09/2016
1.4 16V (JZ0F) 1397 CCM 131 HP 02/2009 - 09/2016
1.6 16V (JZ0U) 1598 CCM 109 HP 02/2009 - 09/2016
2.0 16V (JZ0G) 1997 CCM 140 HP 02/2009 - 09/2016
1.5 dCi (JZ0B, JZ07) 1461 CCM 106 HP 02/2009 - 09/2016
1.9 dCi (JZ0J, JZ0N, JZ1K, JZ1S) 1870 CCM 131 HP 02/2009 - 09/2016
1.2 TCe (JZ11, JZ28) 1197 CCM 116 HP 04/2012 - 09/2016
1.2 TCe (JZ16) 1197 CCM 132 HP 01/2013 - 09/2016
1.6 E85 (JZ03, JZ1Y) 1598 CCM 110 HP 02/2009 - 09/2016

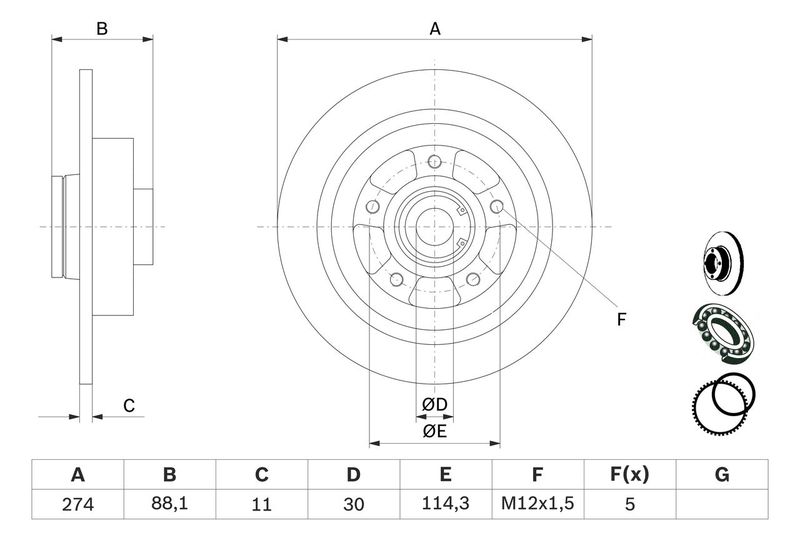

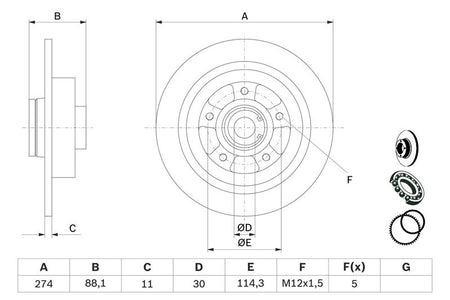

The Bosch 0986479009 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 274 mm outer diameter, 11 mm brake disc thickness, 9.5 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 274
Brake Disc Thickness [mm] : 11
Minimum thickness [mm] : 9.5
Height [mm] : 88.1
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : solid
Centering Diameter [mm] : 61.98
Number of Holes : 5
Surface : Oiled
Supplementary Article/Supplementary Info 2 : with wheel bearing
Supplementary Article/Supplementary Info 2 : with ABS sensor ring
fulfils ECE standard : ECE-R90
Inner Diameter [mm] : 30
  • Vendor BOSCH
  • SKU 0986479009
  • Barcode 4047025082136
  • RENAULT : 40 20 296 46R 43 20 000 07R 43 20 209 84R 43 20 240 48R 432000007RD
  • BLUE PRINT : ADR164310
  • BORG & BECK : BBD5968S
  • BREMBO : 08.B397.17
  • BREMBO : 08.B397.27
  • DELPHI : BG9132RS
  • FEBI BILSTEIN : 38305
  • FTE : 9071402
  • HELLA : 8DD 355 117-351
  • MEYLE : 16-15 523 4109
  • MEYLE : 16-15 523 4109/PD
  • MINTEX : MDC2284
  • National : NBD1773
  • SKF : VKBD 1028
  • TEXTAR : 92232603
  • TRW : DF6203BS
  • VALEO : 672807
  • BOSCH : BD1627
  • BOSCH : E1 90R-02C0310/0080
