BOSCH

Bosch 0986479039 Brake Disc

SKU: 0986479039
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£39.48 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
E-CLASS (W211)
Description Cylinder Capacity Horse Power Year
E 220 CDI 2149 CCM 163 HP 03/2003 - 12/2008
E 320 (211.065) 3199 CCM 224 HP 03/2002 - 12/2008
E 240 (211.061) 2597 CCM 177 HP 03/2002 - 12/2008
E 220 CDI (211.006) 2148 CCM 150 HP 03/2002 - 12/2008
E 270 CDI (211.016) 2685 CCM 177 HP 03/2002 - 12/2008
E 200 CDI (211.004) 2148 CCM 102 HP 07/2002 - 12/2008
E 200 CDI (211.004) 2148 CCM 122 HP 07/2002 - 12/2008
E 200 Kompressor (211.042) 1796 CCM 163 HP 11/2002 - 12/2008
E 320 CDI (211.026) 3222 CCM 204 HP 11/2002 - 12/2008
E-CLASS T-Model (S211)
Description Cylinder Capacity Horse Power Year
E 220 T CDI 2148 CCM 163 HP 03/2003 - 07/2009
E 240 T (211.261) 2597 CCM 177 HP 03/2003 - 07/2009
E 200 T Kompressor (211.242) 1796 CCM 163 HP 03/2003 - 07/2009
E 220 T CDI (211.206) 2148 CCM 150 HP 03/2003 - 07/2009
E 270 T CDI (211.216) 2685 CCM 177 HP 03/2003 - 07/2009
E 280 T CDI (211.220) 2987 CCM 190 HP 03/2005 - 07/2009
E-CLASS Platform/Chassis (VF211)
Description Cylinder Capacity Horse Power Year
E 220 CDI (211.606) 2148 CCM 150 HP 10/2003 - 07/2006
E 220 CDI (211.608) 2148 CCM 170 HP 04/2006 - 07/2009
E 270 CDI (211.616) 2685 CCM 177 HP 10/2003 - 07/2005
E 280 CDI (211.620) 2987 CCM 190 HP 08/2005 - 07/2009

The Bosch 0986479039 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 295.3 mm outer diameter, 28 mm brake disc thickness, 25.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

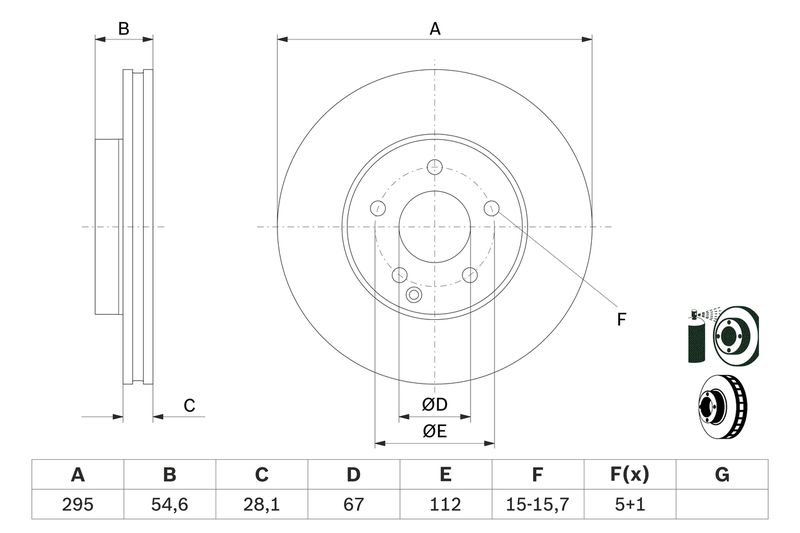

Function : Brake Disc
Outer Diameter [mm] : 295.3
Brake Disc Thickness [mm] : 28
Minimum thickness [mm] : 25.4
Height [mm] : 54.6
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : Vented
Centering Diameter [mm] : 67
Number of Holes : 5
Surface : Coated
Machining : Alloyed/High-carbon
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.2
  • Vendor BOSCH
  • SKU 0986479039
  • Barcode 4047024235403
  • MERCEDES-BENZ : A 211 421 07 12 A 211 421 08 12 211 421 07 12 211 421 08 12
  • APEC : DSK2195
  • APEC : SDK6366
  • BLUE PRINT : ADU174336
  • BORG & BECK : BBD4355
  • BREMBO : 09.9362.11
  • BREMBO : 09.9362.14
  • BREMBO : 09.C893.11
  • DELPHI : BG3755C
  • FEBI BILSTEIN : 22156
  • FEBI BILSTEIN : 22158
  • FTE : 9071009
  • FTE : 9081066
  • FTE : 9082579
  • HELLA : 8DD 355 108-801
  • MEYLE : 015 521 2051
  • MEYLE : 083 521 2051/PD
  • MINTEX : MDC1977
  • NAPA : NBD5560
  • SKF : VKBD 80081 V2
  • TEXTAR : 92115203
  • TEXTAR : 92115205
  • TRW : DF4261
  • VALEO : 672842
  • BOSCH : BD926
  • BOSCH : E1 90 R - 02 C0348/0754
