BOSCH

Bosch 0986479043 Brake Disc

SKU: 0986479043

Your selected vehicle

Out of stock

Out of Stock

£60.83 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW

1 Sports Hatch (F20)

Description	Cylinder Capacity	Horse Power	Year
116 d	1598 CCM	116 HP	03/2012 - 02/2015
118 d	1995 CCM	136 HP	07/2011 - 06/2019
116 i	1598 CCM	136 HP	07/2011 - 02/2015
118 i	1598 CCM	170 HP	07/2011 - 02/2015
116 d	1995 CCM	116 HP	07/2011 - 02/2015
118 d	1995 CCM	143 HP	07/2011 - 02/2015
114 i	1598 CCM	102 HP	07/2012 - 02/2015
114 d	1598 CCM	95 HP	11/2012 - 06/2015

1 Sports Hatch (F21)

Description	Cylinder Capacity	Horse Power	Year
118 d xDrive	1995 CCM	143 HP	05/2013 - 02/2015
114 i	1598 CCM	102 HP	07/2012 - 01/2015
116 i	1598 CCM	136 HP	12/2011 - 02/2015
118 i	1598 CCM	170 HP	07/2012 - 06/2019
114 d	1598 CCM	95 HP	07/2012 - 05/2019
116 d	1598 CCM	116 HP	12/2011 - 02/2015
116 d	1995 CCM	116 HP	07/2012 - 02/2015
118 d	1995 CCM	136 HP	12/2011 - 06/2019
118 d	1995 CCM	143 HP	12/2011 - 02/2015

2 Coupe (F22, F87)

Description	Cylinder Capacity	Horse Power	Year
218 d	1995 CCM	143 HP	03/2014 - 06/2015
218 i	1499 CCM	136 HP	03/2015 - 06/2021
218 d	1995 CCM	150 HP	07/2015 - 09/2020

2 Convertible (F23)

Description	Cylinder Capacity	Horse Power	Year
218 i	1499 CCM	136 HP	03/2015 - 06/2021
218 d	1995 CCM	150 HP	07/2015 - 09/2020
218 i	1998 CCM	136 HP	11/2020 - 06/2021

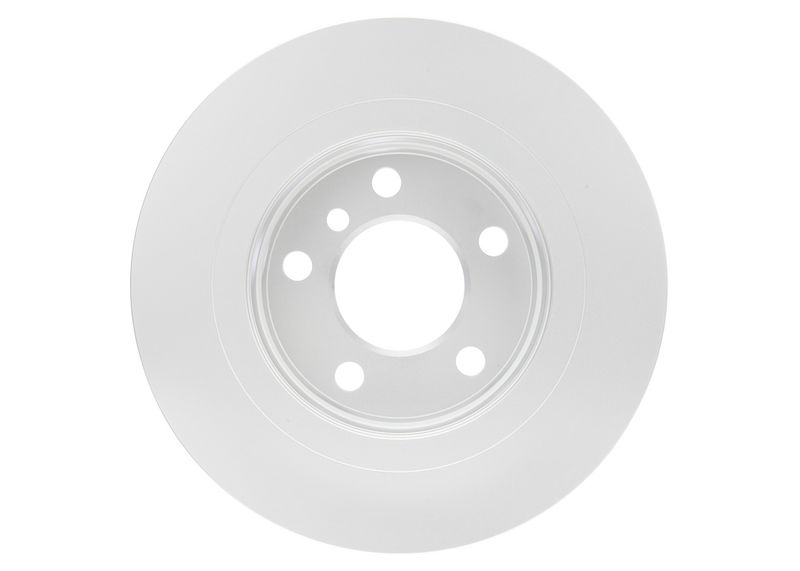

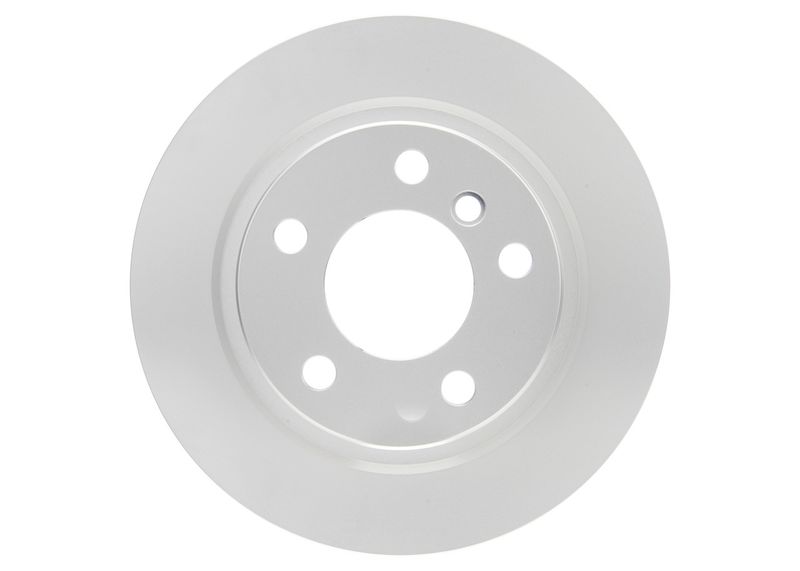

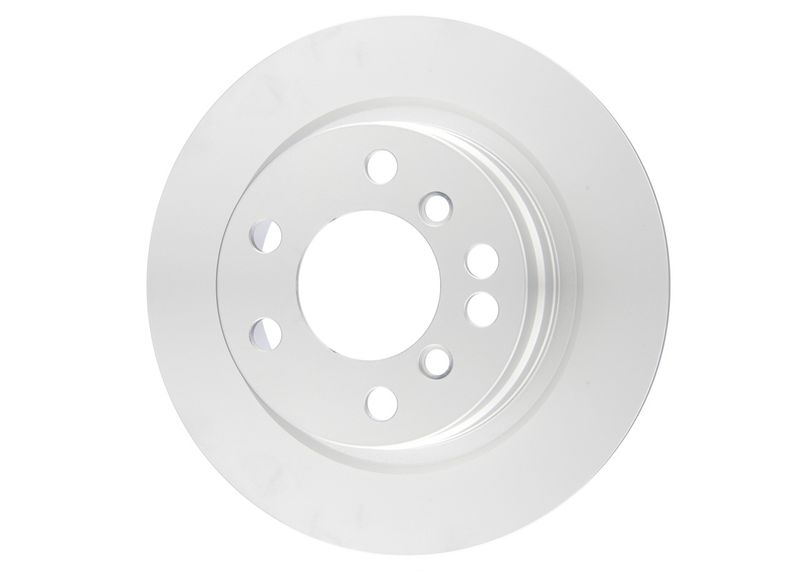

The Bosch 0986479043 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 290 mm outer diameter, 11 mm brake disc thickness, 9.4 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

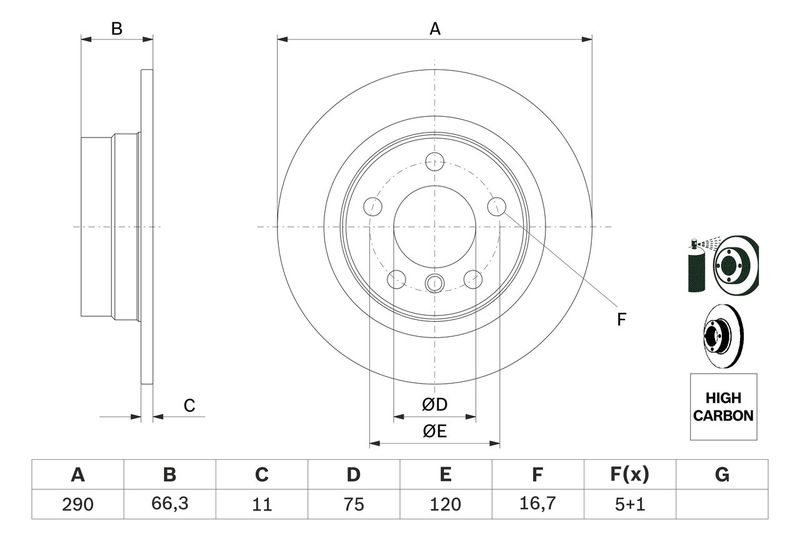

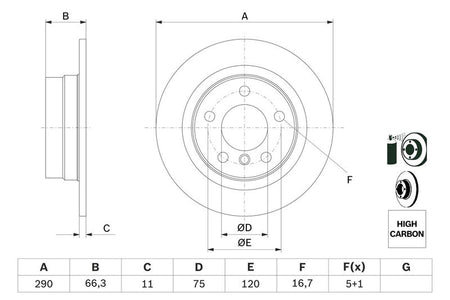

Function : Brake Disc

Outer Diameter [mm] : 290

Brake Disc Thickness [mm] : 11

Minimum thickness [mm] : 9.4

Height [mm] : 66.3

Bolt Hole Circle Ø [mm] : 120

Brake Disc Type : solid

Centering Diameter [mm] : 75

Number of Holes : 5

Surface : Coated

Machining : High-carbon

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 16.7

APEC : DSK3047
APEC : SDK6775
BLUE PRINT : ADB114330
BORG & BECK : BBD5265
BREMBO : 08.C115.11
BREMBO : 08.C115.1S
BREMBO : 08.C115.1X
DELPHI : BG4649C
Fahren : FBD6775
FEBI BILSTEIN : 39113
FTE : 9072096
FTE : 9082129
HELLA : 8DD 355 120-231
MEYLE : 315 523 0030/PD
MINTEX : MDC2557
NAPA : NBD5204
National : NBD1812
SKF : VKBD 90107 S2
TEXTAR : 92261003
TRW : DF6137
VALEO : 197607
VALEO : 672587

Bosch 0986479043 Brake Disc
