BOSCH

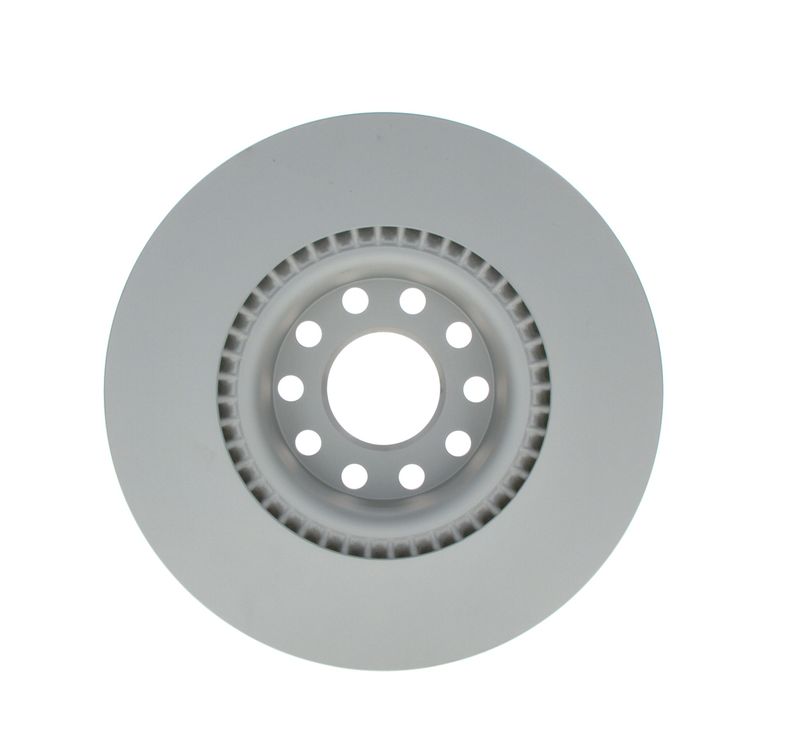

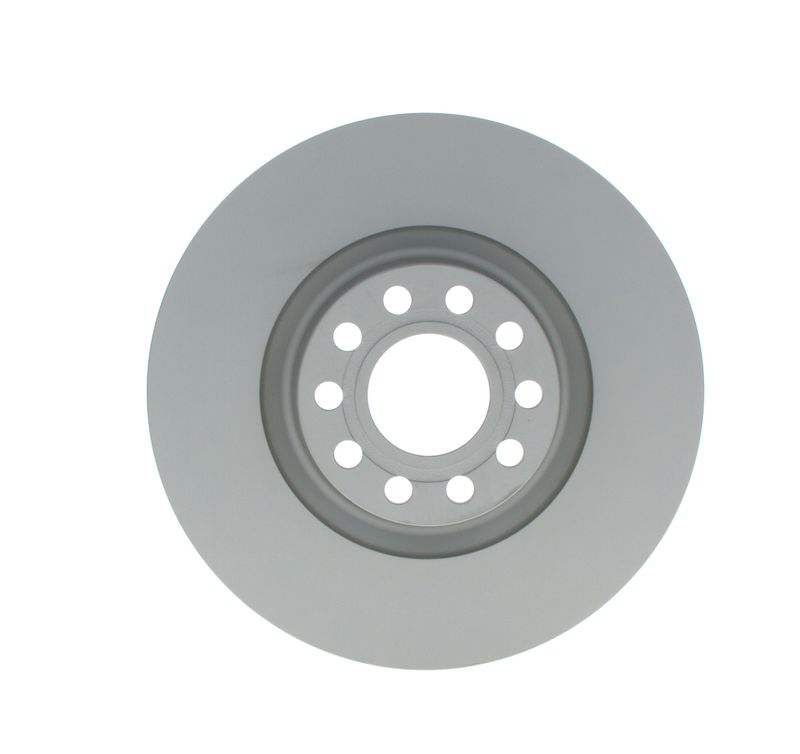

Bosch 0986479060 Brake Disc

SKU: 0986479060
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£56.54 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI
A8 D2 (4D2, 4D8)
Description Cylinder Capacity Horse Power Year
4.2 quattro 4172 CCM 299 HP 03/1994 - 11/1998
2.8 quattro 2771 CCM 174 HP 03/1994 - 03/1996
4.2 quattro 4172 CCM 245 HP 03/1994 - 07/1996
3.7 3697 CCM 230 HP 07/1995 - 12/1998
3.7 quattro 3697 CCM 230 HP 07/1995 - 11/1998
2.8 2771 CCM 193 HP 04/1996 - 09/2002
2.8 quattro 2771 CCM 193 HP 04/1996 - 09/2002
2.5 TDI 2496 CCM 150 HP 01/1997 - 04/2000
2.5 TDI quattro 2496 CCM 150 HP 07/1997 - 04/2000
2.8 quattro 2771 CCM 163 HP 07/1995 - 03/1996
4.2 quattro 4172 CCM 310 HP 11/1998 - 09/2002
3.7 quattro 3697 CCM 260 HP 11/1998 - 09/2002
A8 D3 (4E2, 4E8)
Description Cylinder Capacity Horse Power Year
3.7 quattro 3697 CCM 280 HP 10/2002 - 05/2006
4.0 TDI quattro 3936 CCM 275 HP 05/2003 - 07/2005
3.0 2976 CCM 220 HP 07/2003 - 05/2005
3.0 TDI quattro 2967 CCM 233 HP 08/2003 - 07/2010
3.0 2976 CCM 218 HP 07/2003 - 05/2006
3.0 TDI quattro 2967 CCM 211 HP 11/2003 - 07/2010
VW
PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9)
Description Cylinder Capacity Horse Power Year
3.2 V6 3189 CCM 241 HP 04/2002 - 05/2005

The Bosch 0986479060 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 323 mm outer diameter, 30 mm brake disc thickness, 28 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

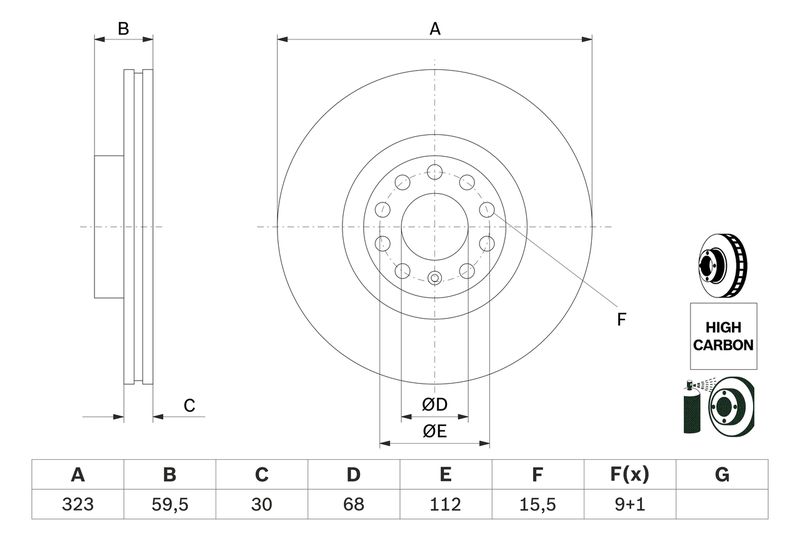

Function : Brake Disc
Outer Diameter [mm] : 323
Brake Disc Thickness [mm] : 30
Minimum thickness [mm] : 28
Height [mm] : 59.5
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : Vented
Centering Diameter [mm] : 68
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.5
  • Vendor BOSCH
  • SKU 0986479060
  • Barcode 3165143963456
  • AUDI : 4D0 615 301 A 4D0 615 301 F 4D0 615 301 J
  • VW : 3D0 615 301 G 4D0 615 301 A 4D0 615 301 F 4D0 615 301 J
  • BORG & BECK : BBD5730S
  • BREMBO : 09.8324.11
  • BREMBO : 09.9911.11
  • DELPHI : BG3524
  • FEBI BILSTEIN : 22964
  • FTE : 9071302
  • HELLA : 8DD 355 127-421
  • MEYLE : 115 521 1109
  • MEYLE : 183 521 1109/PD
  • MINTEX : MDC1419
  • National : NBD1049
  • TEXTAR : 92098305
  • TRW : DF4209S
  • VALEO : 673676
