BOSCH

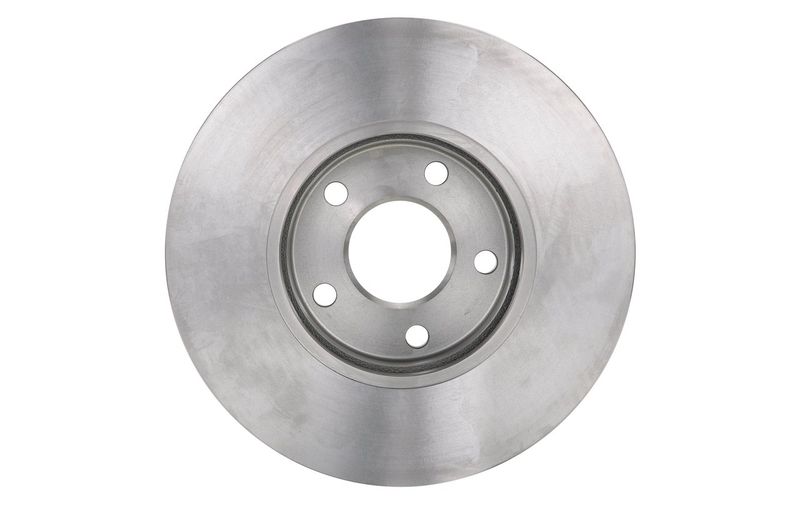

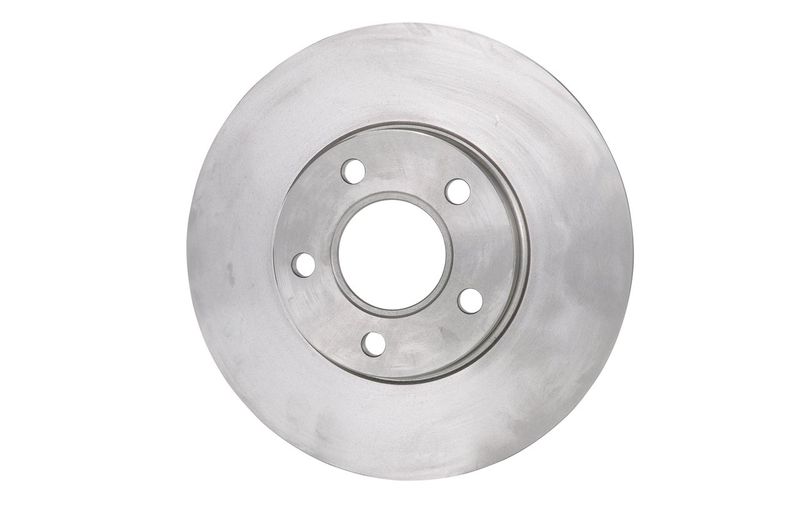

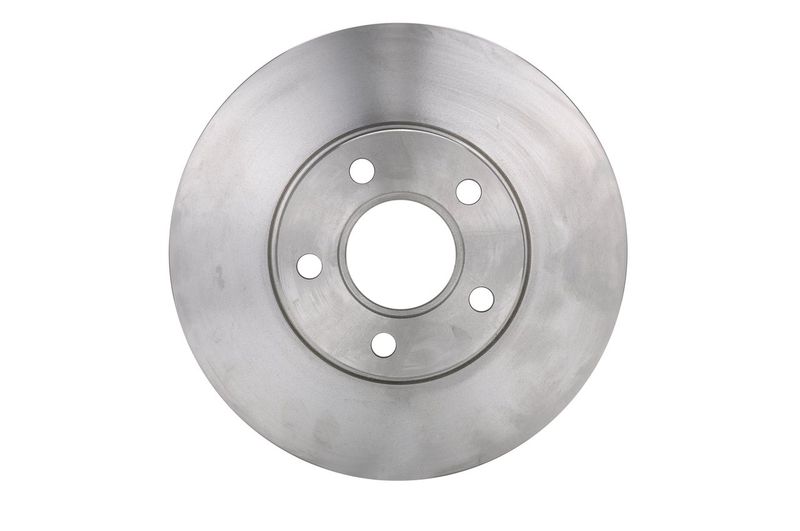

Bosch 0986479069 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986479069

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock

Out of Stock

£71.69 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

FORD

TOURNEO CONNECT

Description	Cylinder Capacity	Horse Power	Year
1.8 TDCi /TDDi /DI	1753 CCM	75 HP	06/2002 - 12/2013
1.8 TDCi	1753 CCM	90 HP	06/2002 - 12/2013
1.8 16V	1796 CCM	116 HP	06/2002 - 12/2013
1.8 TDCi	1753 CCM	110 HP	08/2006 - 12/2013

TRANSIT CONNECT (P65_, P70_, P80_)

Description	Cylinder Capacity	Horse Power	Year
1.8 16V LPG	1796 CCM	116 HP	06/2002 - 12/2013
1.8 16V	1796 CCM	116 HP	06/2002 - 12/2013
1.8 Di	1753 CCM	75 HP	06/2002 - 12/2013
1.8 TDCi	1753 CCM	90 HP	06/2002 - 12/2013
1.8 TDCi	1753 CCM	110 HP	08/2006 - 12/2013

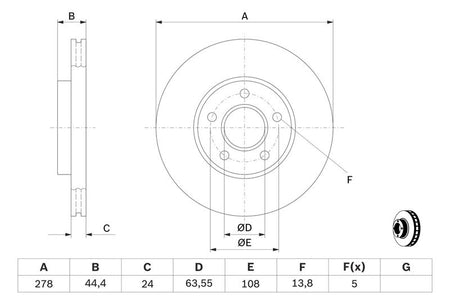

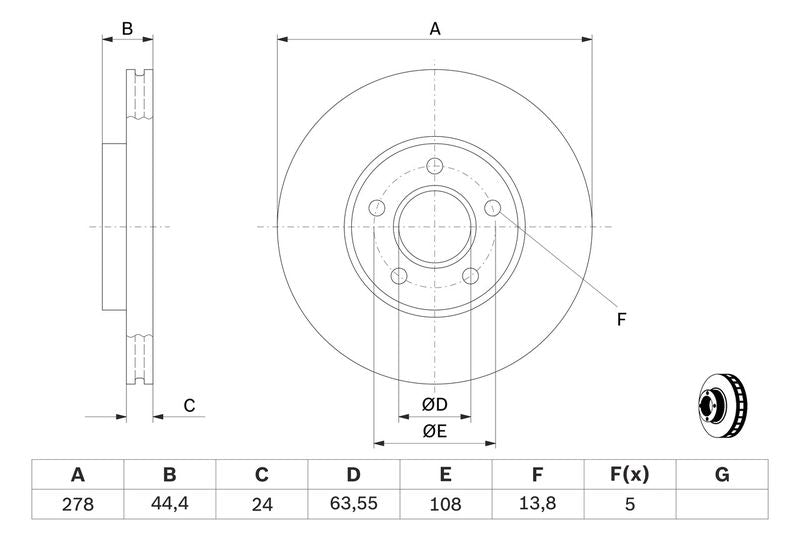

The Bosch 0986479069 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 277.9 mm outer diameter, 24 mm brake disc thickness, 22 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 277.9

Brake Disc Thickness [mm] : 24

Minimum thickness [mm] : 22

Height [mm] : 44.4

Bolt Hole Circle Ø [mm] : 108

Brake Disc Type : Vented

Centering Diameter [mm] : 63.6

Number of Holes : 5

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 13.8
