BOSCH

Bosch 0986479087 Brake Disc

SKU: 0986479087

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£58.80 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA

COROLLA Saloon (_E12_)

Description	Cylinder Capacity	Horse Power	Year
1.4 VVT-i (ZZE120_, ZZE120R)	1398 CCM	97 HP	10/2001 - 10/2006
1.6 VVT-i (ZZE121_, ZZE121R)	1598 CCM	110 HP	10/2001 - 03/2008

COROLLA (_E12_)

Description	Cylinder Capacity	Horse Power	Year
1.8 VVTL-i TS (ZZE123)	1796 CCM	190 HP	01/2001 - 09/2006

COROLLA Estate (_E12_)

Description	Cylinder Capacity	Horse Power	Year
1.4 VVT-i (ZZE120_, ZZE120R)	1398 CCM	97 HP	01/2002 - 02/2007
1.6 VVT-i (ZZE121_, ZZE121R)	1598 CCM	110 HP	01/2002 - 08/2007
2.0 D-4D (CDE120_, CDE120R)	1995 CCM	90 HP	01/2002 - 02/2007

COROLLA Verso (_E12_)

Description	Cylinder Capacity	Horse Power	Year
1.6 VVT-i (ZZE121_, ZZE121R)	1598 CCM	110 HP	08/2001 - 05/2004
2.0 D-4D (CDE120_, CDE120R)	1995 CCM	90 HP	01/2002 - 05/2004
1.8 VVT-i (ZZE122_, ZZE122R)	1794 CCM	135 HP	12/2001 - 05/2004

PRIUS Saloon (_W1_)

Description	Cylinder Capacity	Horse Power	Year
1.5 Hybrid (NHW11)	1497 CCM	116 HP	09/2000 - 12/2003

YARIS VERSO / FUN CARGO (_P2_)

Description	Cylinder Capacity	Horse Power	Year
1.3 (NCP20_, NCP22_, NCP20R, NCP22R)	1299 CCM	86 HP	08/1999 - 10/2002
1.5 (NCP21_)	1497 CCM	106 HP	03/2000 - 09/2005
1.4 D-4D (NLP20_, NLP22_)	1364 CCM	75 HP	09/2000 - 09/2005
1.3 (NCP20_, NCP22_, NCP20R, NCP22R)	1299 CCM	84 HP	11/2002 - 09/2005
1.5 (NCP21_)	1497 CCM	105 HP	03/2000 - 09/2005

YARIS VERSO VAN (_P2_)

Description	Cylinder Capacity	Horse Power	Year
1.3 VVTi (NCP22_)	1299 CCM	86 HP	03/2000 - 09/2005
1.4 D4d (NLP22_)	1364 CCM	75 HP	10/2001 - 09/2005

YARIS/VITZ (_P1_)

Description	Cylinder Capacity	Horse Power	Year
1.0 (SCP10_, SCP10R)	998 CCM	68 HP	04/1999 - 09/2005
1.3 (NCP10, SCP12_)	1299 CCM	86 HP	08/1999 - 11/2005
1.5 (NCP13_, NCP13R)	1497 CCM	106 HP	04/2001 - 09/2005
1.4 D-4D (NLP10_, NLP10R)	1364 CCM	75 HP	10/2001 - 09/2005
1.3 (SCP12_, SCP13_, SCP12R, SCP13R)	1298 CCM	87 HP	04/2002 - 09/2005
1.0 (SCP10_, SCP10R)	998 CCM	65 HP	03/2003 - 09/2005
1.5 (NCP13_, NCP13R)	1497 CCM	105 HP	01/2003 - 11/2005

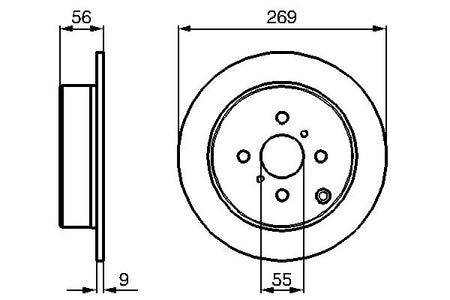

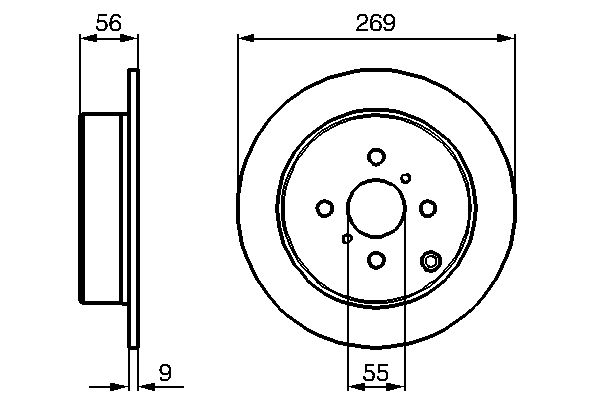

The Bosch 0986479087 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 269 mm outer diameter, 9 mm brake disc thickness, 7.4 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 269

Brake Disc Thickness [mm] : 9

Minimum thickness [mm] : 7.4

Height [mm] : 55.7

Bolt Hole Circle Ø [mm] : 100

Brake Disc Type : solid

Centering Diameter [mm] : 55.05

Number of Holes : 4

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 14.6

APEC : DSK2183
BLUE PRINT : ADT343175
BORG & BECK : BBD4364
BOSCH : 0 986 479 B71
BREMBO : 08.A273.10
BREMBO : 08.A273.11
DELPHI : BG3867
FEBI BILSTEIN : 27234
FTE : 9072196
FTE : 9082118
HELLA : 8DD 355 110-491
MEYLE : 30-15 523 0061
MINTEX : MDC1655
National : NBD1256
SKF : VKBD 90536 S2
TEXTAR : 92126203
TRW : DF4335
VALEO : 186847
VALEO : 673014

Bosch 0986479087 Brake Disc
