BOSCH

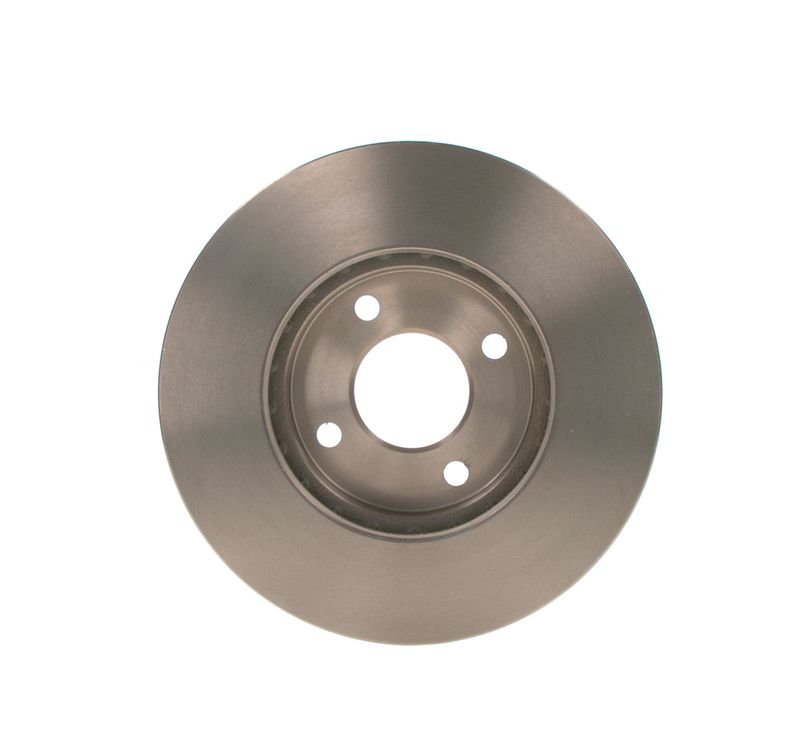

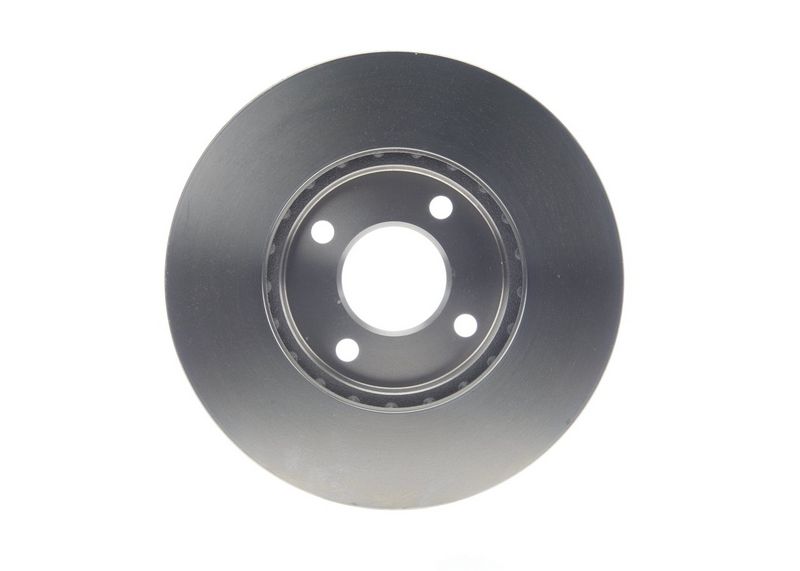

Bosch 0986479090 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986479090

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£70.38 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

NISSAN

MICRA IV (K13K, K13KK)

Description	Cylinder Capacity	Horse Power	Year
1.2	1198 CCM	80 HP	05/2010 - 09/2015
1.2 DIG-S	1198 CCM	98 HP	03/2011 - 10/2015
1.2	1198 CCM	76 HP	05/2010 - 10/2020

NOTE (E12)

Description	Cylinder Capacity	Horse Power	Year
1.5 dCi	1461 CCM	90 HP	06/2013 - 12/2016
1.2	1198 CCM	80 HP	08/2012 - 12/2016
1.2 DIG-S	1198 CCM	98 HP	From 08/2012
1.2 DIG-S	1198 CCM	88 HP	08/2012 - 12/2016

VERSA II (N17_)

Description	Cylinder Capacity	Horse Power	Year
1.5	1498 CCM	99 HP	From 08/2011

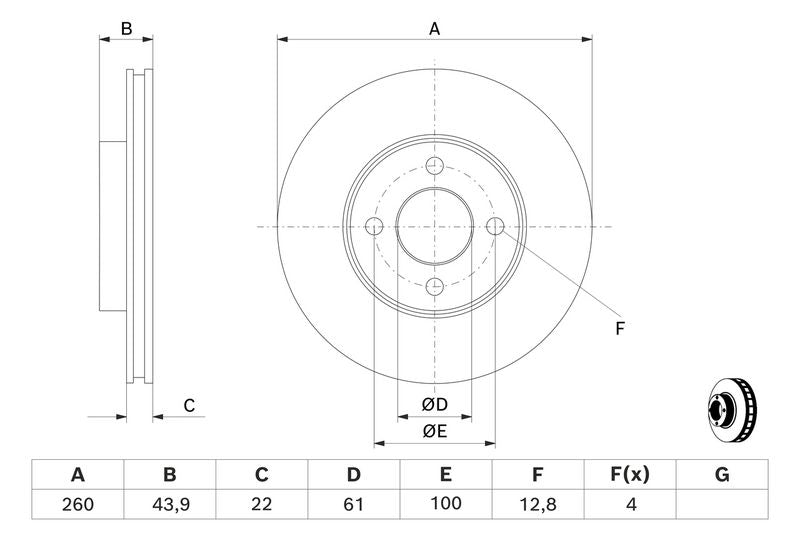

The Bosch 0986479090 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 260 mm outer diameter, 22 mm brake disc thickness, 20 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 260

Brake Disc Thickness [mm] : 22

Minimum thickness [mm] : 20

Height [mm] : 43.9

Bolt Hole Circle Ø [mm] : 100

Brake Disc Type : Vented

Centering Diameter [mm] : 61

Number of Holes : 4

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 12.7
