BOSCH

Bosch 0986479101 Brake Disc

SKU: 0986479101

Your selected vehicle

Only 5 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£40.09 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HONDA

BEAT (PP_)

Description	Cylinder Capacity	Horse Power	Year
0.7 (PP1)	656 CCM	64 HP	05/1991 - 09/1996

CIVIC MK V Saloon (EG, EH)

Description	Cylinder Capacity	Horse Power	Year
1.6 16V Vtec (EH9, EH5)	1590 CCM	125 HP	10/1991 - 11/1995
1.6 VTi (EG9)	1595 CCM	160 HP	10/1991 - 11/1995

CIVIC MK V Hatchback (EG, EH)

Description	Cylinder Capacity	Horse Power	Year
1.5 i 16V (EG4)	1493 CCM	94 HP	10/1991 - 11/1995
1.6 16V Vtec (EG5, EH3)	1590 CCM	125 HP	10/1991 - 11/1995
1.6 VTi 16V (EG6)	1595 CCM	160 HP	10/1991 - 11/1995
1.6 si 16V (EG2, EG6)	1590 CCM	122 HP	10/1991 - 10/1993

CIVIC del Sol Mk III (EH, EG)

Description	Cylinder Capacity	Horse Power	Year
1.6 i VTi (EG2)	1595 CCM	160 HP	03/1992 - 12/1998

CIVIC VI Saloon (EJ, EK, SO)

Description	Cylinder Capacity	Horse Power	Year
1.6 VTi (EK4, SO4)	1595 CCM	160 HP	11/1995 - 02/2001

CIVIC VI Hatchback (EJ, EK)

Description	Cylinder Capacity	Horse Power	Year
1.6 VTi (EK4)	1595 CCM	160 HP	11/1995 - 02/2001

CIVIC VI Coupe (EJ, EM1)

Description	Cylinder Capacity	Horse Power	Year
1.6 i Vtec (EM1)	1590 CCM	125 HP	03/1996 - 03/2000
1.6 i Vtec (EM1)	1595 CCM	160 HP	04/1999 - 12/2000

INTEGRA Coupe (DC)

Description	Cylinder Capacity	Horse Power	Year
1.6 i (DC1)	1590 CCM	120 HP	09/1993 - 08/2001
1.8 VTiR (DC2)	1797 CCM	173 HP	07/1993 - 11/1999
1.8 SiR (DC2)	1797 CCM	180 HP	09/1993 - 08/2001

INTEGRA Saloon (DB6, DB7, DB8, DB9)

Description	Cylinder Capacity	Horse Power	Year
1.6 (DB6)	1590 CCM	120 HP	09/1993 - 08/2001
1.8 VTEC (DB8)	1797 CCM	180 HP	09/1993 - 08/2001
1.8 ESI (DB7)	1834 CCM	145 HP	09/1993 - 08/2001

JAZZ II (GD_, GE3, GE2)

Description	Cylinder Capacity	Horse Power	Year
1.3 iDSi (GD1)	1339 CCM	86 HP	03/2002 - 09/2007
1.3 iDSi (GD1)	1339 CCM	83 HP	03/2002 - 07/2008
1.2 i-DSI (GD5, GE2)	1243 CCM	78 HP	03/2002 - 07/2008
1.4 iDSI (GE3, GD1)	1339 CCM	83 HP	12/2006 - 10/2008

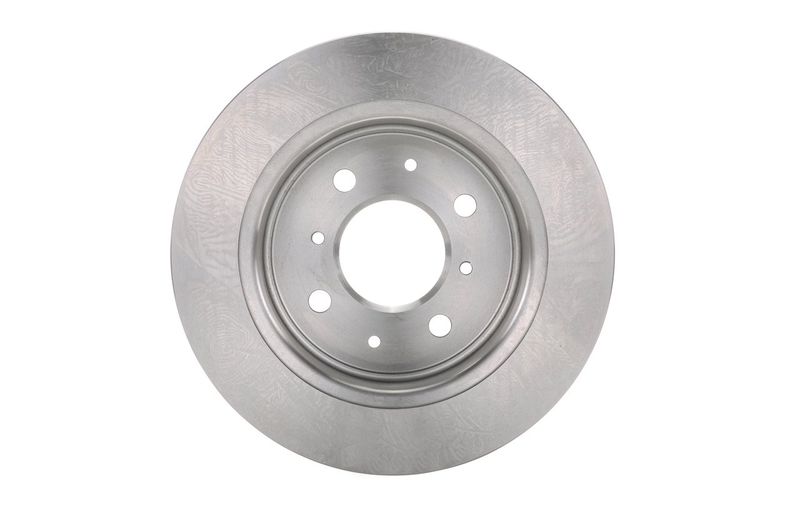

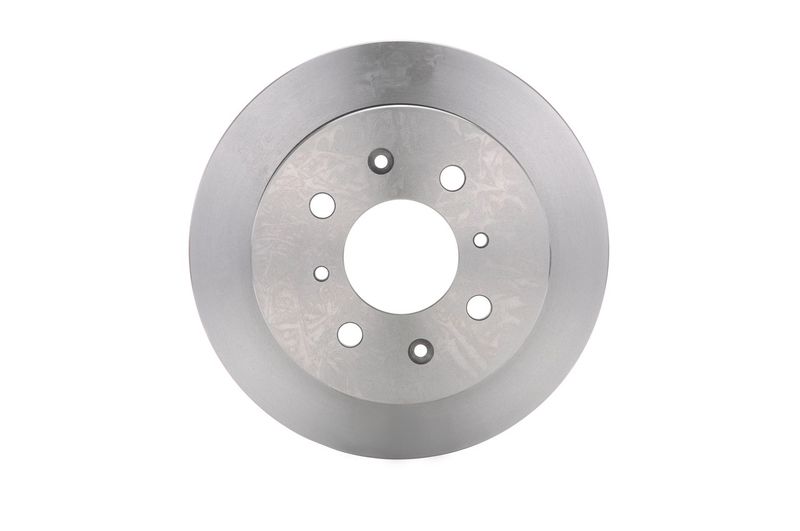

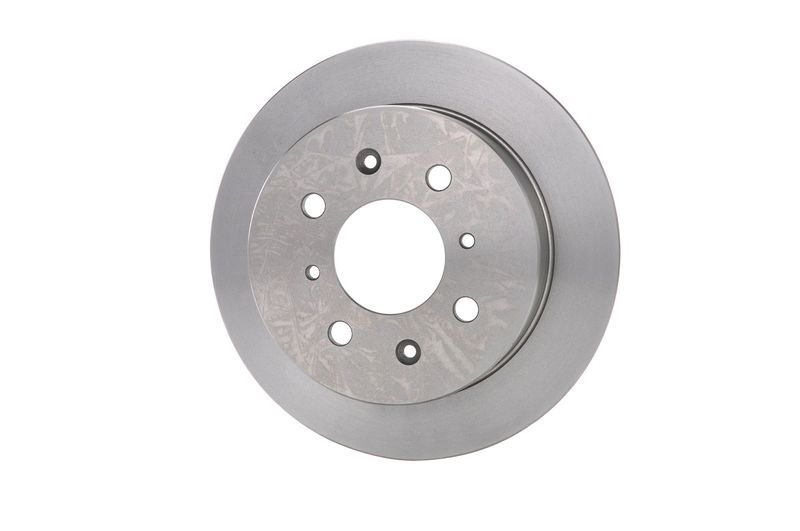

The Bosch 0986479101 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 239 mm outer diameter, 9 mm brake disc thickness, 8 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

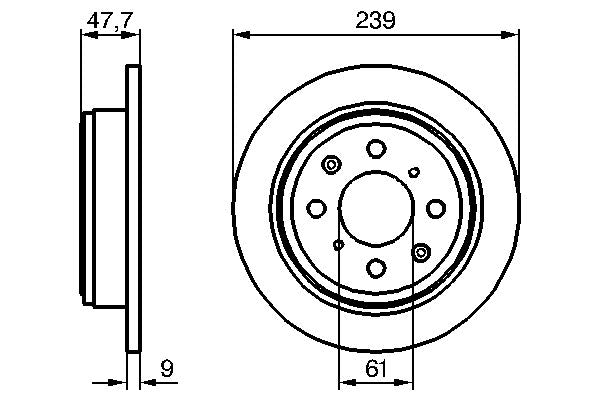

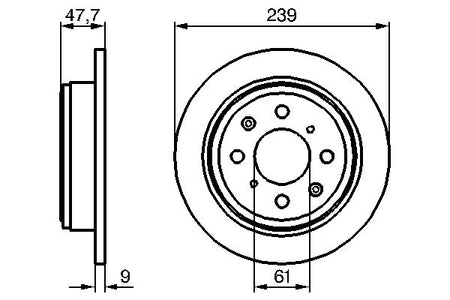

Function : Brake Disc

Outer Diameter [mm] : 239

Brake Disc Thickness [mm] : 9

Minimum thickness [mm] : 8

Height [mm] : 47.7

Bolt Hole Circle Ø [mm] : 100

Brake Disc Type : solid

Centering Diameter [mm] : 61

Number of Holes : 4

Surface : Oiled

Supplementary Article/Supplementary Info 2 : with bolts/screws

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 12.7

APEC : DSK252
APEC : SDK6053
BLUE PRINT : ADH24327
BORG & BECK : BBD4093
BREMBO : 08.5719.10
BREMBO : 08.A920.10
DELPHI : BG2538
DELPHI : BG4333
Fahren : FBD6053
FEBI BILSTEIN : 108390
FTE : 9072354
FTE : 9082872
HELLA : 8DD 355 104-951
MEYLE : 31-15 523 0051
MEYLE : 31-15 523 0051/PD
MINTEX : MDC846
NAPA : NBD5585
National : NBD1507
SKF : VKBD 90567 S2
TEXTAR : 92077900
TEXTAR : 92077903
TRW : DF4191

Bosch 0986479101 Brake Disc
